EQUIPMENT US Site

1

See Chart

Added to Cart

Rigging Type	70, PHW93, AT5544 (9-7/8" Tube)	70, PHW93, AT5544 (11-7/8" Tube)	70, PHW93, AT5544 (13-7/8" Tube)	PHAL4A (13-7/8" Tube)
12-13" W - Right (4-1/4" Footplate)	1060442 MSRP: $137.00	N/A	N/A	N/A
12-13" W - Left (4-1/4" Footplate)	1060443 MSRP: $137.00	N/A	N/A	N/A
14-15" W - Right (5-1/4" Footplate)	1060444 MSRP: $113.00	1062758 MSRP: $97.00	1121138- NLA	1091775- NLA
14-15" W - Left (5-1/4" Footplate)	1060445 MSRP: $113.00	1062759 MSRP: $97.00	1121139- NLA	1091776- NLA
16" and Wider - Right (6-1/4" Footplate)	1062756 MSRP: $115.00	1062760 MSRP: $109.00	1121140 MSRP: $141.00	1091777- NLA
16" and Wider - Left (6-1/4" Footplate)	1062757 MSRP: $115.00	1062761 MSRP: $109.00	1121141 MSRP: $141.00	1091778- NLA

Create/add to Wishlist

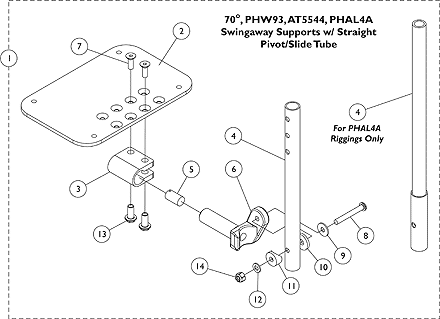

Pivot/Slide Tubes w/ Footplate Assemblies

N/A

A

Create/add to Wishlist

2

1060426

NLA - Footplate, Adjustable Angle, Medium, Black (4-1/4" W x 8" L)

1

N/A

C ,G

Create/add to Wishlist

2

1113572

Footplate, Adjustable Angle, Medium, Black (4-1/4" W x 8" L)

1

$80.00

B ,C

Create/add to Wishlist

2

1060427

NLA - Footplate, Adjustable Angle, Large, Black (5-1/4" W x 8" L)

1

N/A

D ,G

Create/add to Wishlist

2

1113573

Footplate, Adjustable Angle, Large, Black (5-1/4" W x 8" L)

1

$79.00

B ,D

Create/add to Wishlist

2

1062569

NLA - Footplate, Adjustable Angle, Extra Large, Black (6-1/4" W x 8" L)

1

N/A

E ,G ,H

Create/add to Wishlist

2

1113574

Footplate, Adjustable Angle, Extra Large, Black (6-1/4" W x 8" L)

1

$80.00

B ,E

Create/add to Wishlist

3

1058517

Clamp, Footplate

1

$13.50

Create/add to Wishlist

4

1057855

Tube, Pivot and Slide, Straight, Steel, Black (9-7/8" L)

1

$25.00

Create/add to Wishlist

4

1057856

Tube, Pivot/Slide, Straight, Steel, Black (11-7/8" L)

1

$25.00

Create/add to Wishlist

4

1121135

Tube, Pivot/Slide, Straight, Steel, Black (13-7/8" L)

1

$31.00

Create/add to Wishlist

4

1091745

NLA - Tube, Pivot/Slide, Straight, Steel, Chrome (13-7/8" L)

1

N/A

F

Create/add to Wishlist

5

1048816

Screw, Nylon Adjustment (1/2-13 x 7/8")

1

$10.00

Create/add to Wishlist

6

1052102

Hinge, Footplate - Right

1

$57.00

Create/add to Wishlist

6

1052103

Hinge, Footplate - Left

1

$57.00

Create/add to Wishlist

7

1029545

Screw, Socket Flat Head (1/4-20 x 3/4")

1

2

$9.20

Create/add to Wishlist

8

7930321

NLA Package, Screw, Socket Button Head (1/4-20 x 1-7/8")

25

1

N/A

Create/add to Wishlist

9

1026907

Washer (1/4 x 1/2 x 1/16")

1

$7.20

Create/add to Wishlist

10

7930313

Package, Washer, Nylon (5/16 x 7/8 x 1/8")

25

1

$44.00

Create/add to Wishlist

11

1025457

Spacer, Coved (1/4 x 3/4 x 11/32")

1

$8.00

Create/add to Wishlist

12

1026900

Washer (1/4 x 23/32 x 1/16")

1

$1.20

Create/add to Wishlist

13

1082686

Nut, Barrel, Hex Head (1/4-20 x 11/16")

1

2

$9.20

Create/add to Wishlist

14

7930333

Locknut (1/4-20)

25

1

$44.00

Note Code	Definition
A	Includes Items 2 thru 14.
B	The footplate design was changed after 9/1/2008 with rounder corners and accessory holes changed from 8 to 4.
C	For 12-13" wide chairs
D	For 14-15" wide chairs
E	For 16" and wider chairs.
F	For PHAL4A only.
G	Used before 9/2/08.
H	Part #1062569 is No Longer Available. Order part #1113574 as a replacement. It is recommended to order in pairs to match.
