Model 1900 - Patient Seat Assembly

Print this page

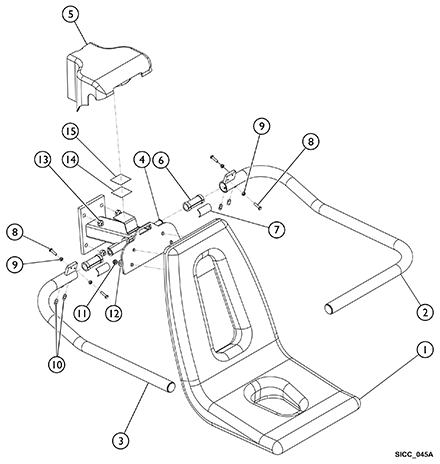

Model 1900 - Patient Seat Assembly

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1147282	Seat, Patient, Lift	1	1	$1,906.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1147278	Arm, Seat, Lift - Right	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1147277	Arm, Seat, Lift - Left	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1147283	NLA - Support, Seat, Lift w/o Load Cell	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1147304	Shroud, Seat, Arm	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1147279	NLA - Bearing, Arm, Seat	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1147372	NLA - Shoe, Brake, Bearing	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	PAR9954	NLA - Screw, Hex Head (1/4-20 x 1")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	IHTRP1807	NLA - Locknut (1/4-20)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1142191	Screw, Set, Socket, Cup Point (3/8-16 x 5/8")	1	4			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	40363X000	Hex Nut (3/8"-16)	1	4	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1153346	NLA - Washer, Flat (13/32 x 13/16 x 1/16")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1095483	NLA - Locknut (1/2-13)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1033800	NLA - Hook, 2" Adhesive Back	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1026082	NLA - Fastener, Dual Lock	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1147313	Belt, Lap, Seat	1	1	$57.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1151805	Belt, Chest, Seat	1	1	$32.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Cut item from roll into 2" by 2" square pieces (1 each).
B	Item not shown in illustration.

Catalog Literature

Parts Books for ICC - Lift IH1200, IH1300, IH1500, IH1600, IH1800, IH1900, 1100 Scale
