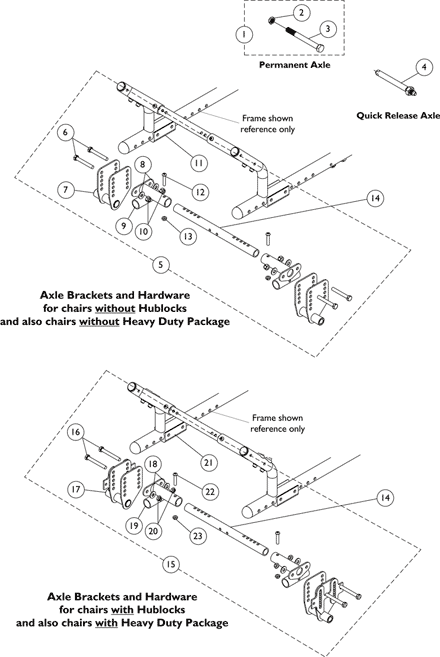

Axles, Axle Mounting Plates and Hardware

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1127817

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Locknut (1/2-20)	1	2
3	NLA - Screw, Hex Head (1/2-20 x 6")	1	2
2	Locknut (1/2-20)	1	2
3	NLA - Screw, Hex Head (1/2-20 x 6")	1	2
2	Locknut (1/2-20)	1	2
3	NLA - Screw, Hex Head (1/2-20 x 6")	1	2

Kit, Axle with Locknut

$18.00

Create/add to Wishlist

1040361

Axle, Quick Release w/ Locknut (1/2" x 5")

$48.00

Create/add to Wishlist

1127813

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
6	Screw, Hex Head (5/16-24 x 2-1/4")	1	4
7	NLA - Bracket, Axle, Black - Right	1	1
7	NLA - Bracket, Axle, Black - Left	1	1
8	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
9	Bracket, Lower Crossbrace Receiver, Black	1	2
10	Locknut (5/16-24)	1	4
11	Bracket, Axle Spacer, Black	1	2
12	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	2
13	Locknut (1/4-28)	1	2

NLA - Kit, Axle Brackets with Hardware

N/A

A ,B

Create/add to Wishlist

1128852

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
16	Screw, Hex Head (5/16-24 x 2-1/2")	1	4
17	Bracket, Axle, Black - Right	1	1
17	Bracket, Axle, Black - Left	1	1
18	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
19	Bracket, Lower Crossbrace Receiver, Black	1	2
20	Locknut (5/16-24)	1	4
21	Bracket, Axle Spacer, Black	1	2
22	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	2
23	Locknut (1/4-28)	1	2

NLA - Kit, Axle Brackets with Hardware

N/A

D ,E

Create/add to Wishlist

See Chart

Added to Cart

Seat Width Range 12-16"

Seat Width Range 14-18"

Seat Width Range 16-20"

Seat Width Range 18-22"

Quantity

Note-A

1127700- NLA

Note-A

1127701- NLA

Note-A

1127702- NLA

Note-A ,B

1127703- NLA

N/A

1164095

MSRP: $60.00

N/A

1025765

MSRP: $7.20

N/A

1055309

MSRP: $8.00

N/A

1083099

MSRP: $10.00

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	As of 8/9/07, the finish changed from black anodize to flat black.
B	See part #'s listed below part #1127703 and order together 1 ea. 1164095 Kit, Crossbrace Tubes, 14 ea. 1025765 Locknuts (1/4-28), 10 ea. 1055309 Screw, SBH (1/4-28 x 1-1/4") and 4 ea. 1083099 Screw, SBH (1/4-28 x 1-1/2") as a replacement.

#14 Kit, Crossbraces with Hardware

N/A

Assembly Part Notes

Note Code	Definition
A	Chairs without Hublocks and Heavy Duty Package
B	Includes items 6-13, contains enough parts for right and left frames
C	Kit includes 5 ea. Crossbraces and all attaching hdwr. 1 crossbrace is required for Axle Mounting Hdwr., 3 crossbraces are req'd for Base/Seat Frames, and 1 crossbrace is req'd for Tilt Hdwr.
D	Chairs with Hublocks and/or Heavy Duty Package
E	Includes items 16-23, contains enough parts for right and left frames

Catalog Literature

Parts Books for Solara® 2G Spree GT™
