Cylinder - Locking

Print this page

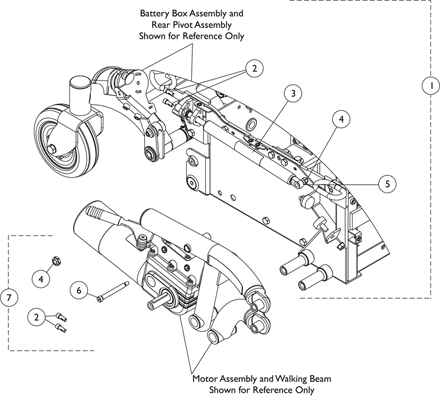

Locking Cylinder

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1

1163238

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Screw, Socket Head (1/4-20 x 5/8")	1	4
3	Locking Cylinder w/Pivot Assembly	1	2
4	Locknut (1/4-20)	1	2
5	Washer, Nylon (11/32 x 11/16 x 1/16")	1	2
	Instruction Sheet, Locking Cylinder	1	1

Kit, Locking Cylinder (Pair)

1

1

$305.00

A

Create/add to Wishlist

Create/add to Wishlist

7

1151609

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Screw, Socket Head (1/4-20 x 5/8")	1	2
4	Locknut (1/4-20)	1	1
6	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1

Kit, Locking Cylinder Mounting Hardware

1

1

$12.00

B

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-5 and instruction sheet. Kit includes Locking Cylinders and hardware for the right and left side.
B	Includes items 2, 4 and 6.

Catalog Literature

Parts Books for TDX® SC (CGE option included) and TDX® SPREE (CGE standard)
