1163237

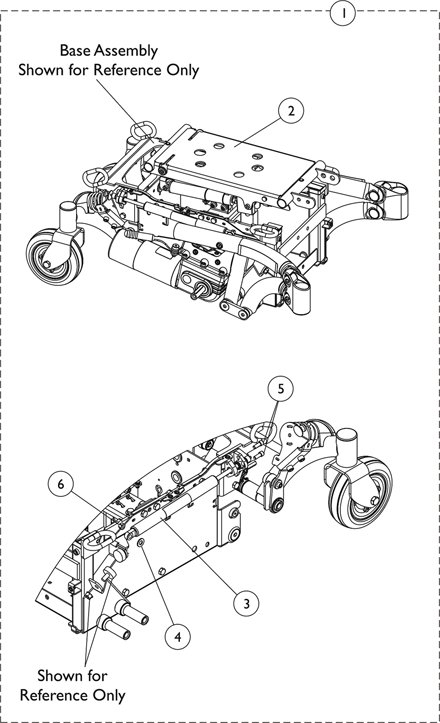

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Washer, Steel (5/16 x 3/4 x 1/16")	1	2
2	Frame, Elevate Manual Tilt, Black	1	1
2	Frame, Manual Tilt Center Seat, Black	1	1
2	NLA - Screw, Shoulder Hex Socket Head (5/16" x 1", 1/4-20)	1	2
2	NLA - Screw, Shoulder Hex Socket Head (5/16" x 1-1/4", 1/4-20)	1	2
2	Locknut (1/4-20)	1	4
2	Cylinder, Gas w/ Release Cable - Right	1	1
2	Cylinder, Gas w/ Release Cable - Left	1	1
2	Spacer (5/16 x 1/2 x 3/8")	1	2
2	Washer, Nylon (5/16 x 7/8 x 1/8")	1	5
2	Bumper, Rubber (1" Diameter x 3/8")	1	2
2	NLA - Nut, Keps (5/16-18)	1	2
2	Rod, Pivot	1	1
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
2	Washer (1/4 x 23/32 x 1/16")	1	2
3	Locking Cylinder w/Pivot Assembly	1	2
4	Washer, Nylon (11/32 x 11/16 x 1/16")	1	2
5	Screw, Socket Head (1/4-20 x 5/8")	1	4
6	Locknut (1/4-20)	1	2
	Instruction Sheet, Locking Cylinder	1	1

NLA - Kit, Locking Cylinder Retrofit

N/A

A ,B

Note Code	Definition
A	Includes items 2-6 and instruction sheet.
B	For TDX Spree chairs w/ Manual Tilt built before 2/12/09. Once retrofit kit has been installed, replacement cylinders can be ordered separately. See cateogory titled, "Locking Cylinder".
