Toilet Safety Frame - Model 1392 & 635-3

Print this page

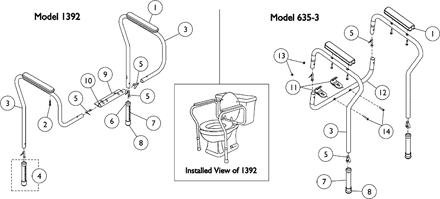

Toilet Safety Frame (Model 1392 and 635-3)

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

01000X001

NLA - Armrest, Full Length, Beige

N/A

A ,B

Create/add to Wishlist

1163889

Armrests (Pair)

$29.00

A ,C

Create/add to Wishlist

1073833

NLA - Armrest, Full Length, White

N/A

D ,E

Create/add to Wishlist

1059660

NLA - Armrest, Full Length, Grey

N/A

D ,F ,N

Create/add to Wishlist

1132261

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	NLA - Armrest, Full Length, Grey	1	2
15	NLA - Screw, Phillips Pan Head (1/4 x 1-1/4")	1	4
5	NLA - Armrest, Full Length, Grey	1	2
6	NLA - Screw, Phillips Pan Head (1/4 x 1-1/4")	1	4
9	NLA - Armrest, Full Length, Grey	1	2
12	NLA - Screw, Phillips Pan Head (1/4 x 1-1/4")	1	4
1	NLA - Armrest, Full Length, Grey	1	2
2	NLA - Screw, Phillips Pan Head (1/4 x 1-1/4")	1	4
	NLA - Armrest, Full Length, Grey	1	2
	NLA - Screw, Phillips Pan Head (1/4 x 1-1/4")	1	4
10	NLA - Armrest, Full Length, Grey	1	2
11	NLA - Screw, Phillips Pan Head (1/4 x 1-1/4")	1	4
5	NLA - Armrest, Full Length, Grey	1	2
6	NLA - Screw, Phillips Pan Head (1/4 x 1-1/4")	1	4
1	NLA - Armrest, Full Length, Grey	1	2
2	NLA - Screw, Phillips Pan Head (1/4 x 1-1/4")	1	4
5	NLA - Armrest, Full Length, Grey	1	2
7	NLA - Screw, Phillips Pan Head (1/4 x 1-1/4")	1	4
10	NLA - Armrest, Full Length, Grey	1	2
11	NLA - Screw, Phillips Pan Head (1/4 x 1-1/4")	1	4

NLA - Kit, Armrest with Hardware, Full Length - Grey

N/A

L ,M

Create/add to Wishlist

48127X001

NLA - Screw, Phillips Round Head (#10-32 x 1/2")

N/A

Create/add to Wishlist

1061431

NLA - Screw, Phillips Pan Head (1/4 x 1-1/4")

N/A

Create/add to Wishlist

48016X000

NLA - Frame, Side - Right

N/A

A ,K

Create/add to Wishlist

48016X001

NLA - Frame, Side - Left

N/A

A ,K

Create/add to Wishlist

1082559

NLA - Frame, Side Rail, Chrome - Right/Left

N/A

Create/add to Wishlist

1058806

NLA - Leg Extension Assembly

N/A

A ,G

Create/add to Wishlist

1058807

Part/Kit Description	Qty/Pkg	Qty/Asbly
Anti-Rattle, Grey (1-1/8")	1	2
Tube, Leg Extension	1	2
Tip, Rubber, Light Grey (1-1/8")	1	2
Anti-Rattle, Grey (1-1/8")	1	2
Tube, Leg Extension	1	2
Tip, Rubber, Light Grey (1-1/8")	1	2

NLA - Kit, Leg Extension Sub-Assembly

N/A

A ,G ,N

Create/add to Wishlist

1094945

Button, Snap

$8.00

Create/add to Wishlist

1063124

Anti-Rattle, Grey (1-1/8")

Create/add to Wishlist

1073450

NLA - Leg Extension Assembly

N/A

Create/add to Wishlist

1057797

Tip, Rubber, Light Grey (1-1/8")

$8.00

Create/add to Wishlist

1018602

NLA - Bracket, Aluminum

N/A

Create/add to Wishlist

1057287

Plug Button, Grey (1")

$9.00

Create/add to Wishlist

1073237

NLA - Clamp, Toilet Rail

N/A

Create/add to Wishlist

1073452

NLA - Brace

N/A

Create/add to Wishlist

1074444

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
13	Locknut (1/4-20)	1	2
14	Screw, Phillips Pan Head (1/4-20 x 1-3/8")	1	2
13	Locknut (1/4-20)	1	2
14	Screw, Phillips Pan Head (1/4-20 x 1-3/8")	1	2

NLA - Kit, Hardware

N/A

D ,J

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	To be used with Model 1392.
B	Before 5/17/99.
C	After 5/14/09.
D	To be used on Model 635-3.
E	Before 3/18/99.
F	After 3/19/99.
G	Kit Includes: Leg Tube, Anti-Rattle and Rubber Tip.
H	Before 10/95.
I	After 3/2/98.
J	Kit Includes Items 13 and 14.
K	Item no longer available, suggested replacement is a complete unit 1392KD.
L	Kit includes (2) Armrests Part #1059660 and (4) Screws Part #1061431.
M	Not Shown.
N	Item no longer available, refer to Kit Part #1132261.
