EQUIPMENT US Site

1

60126449

Actuator Motor w/ Bushings

1

$924.00

G ,H

Create/add to Wishlist

1133691

Package, Emergency Pull Pin

10

1

$60.00

B

Create/add to Wishlist

2

1031665

Screw, Shoulder Hex Socket Head (3/8 x 1-1/2", 5/16-18)

1

$8.00

A

Create/add to Wishlist

3

1065214

Washer, Flat (3/8 x 11/16 x 1/16")

1

$10.00

A

Create/add to Wishlist

4

1064267

Locknut (5/16-18)

1

$10.00

E

Create/add to Wishlist

5

1078980

Screw, Phillips Pan Head (#10-24 x 1/4")

1

3

$10.00

Create/add to Wishlist

6

1078284

Bracket, Battery - Electric Only

1

$49.00

Create/add to Wishlist

7

1079045

Mast

1

$234.00

Create/add to Wishlist

8

1065361

Cap, End, Black (1-1/2 x 2-1/2")

1

$8.00

Create/add to Wishlist

9

1129465

Screw, Shoulder Hex Socket Head (3/8 x 2-1/4", 5/16-18)

1

$12.00

Create/add to Wishlist

10

1177604

Pendant, Two Channel w/ Hook

1

$68.00

F

Create/add to Wishlist

11

1078276

Battery Pack, Linak

1

$246.00

Create/add to Wishlist

12

1078275

Controller - Electric Only

1

$271.00

Create/add to Wishlist

13

1078306

Bracket, Wall Mount Charger

1

$54.00

Create/add to Wishlist

14

1078274

Charger, Electric Only w/o Power Cord

1

$286.00

J

Create/add to Wishlist

15

1079135

NLA - Cord, European - Electric Only

1

N/A

Create/add to Wishlist

16

1079133

Cord, Power, USA

1

$20.00

Create/add to Wishlist

17

1079134

NLA - Cord, UK - Electric Only

1

N/A

Create/add to Wishlist

18

1078981

Locknut (1/2-13)

1

$10.00

Create/add to Wishlist

19

1070965

NLA - Label, Lift Warning/Operation - USA

1

N/A

Create/add to Wishlist

19

1079657

NLA - Label, Lift Warning/Operation - EUR

1

N/A

Create/add to Wishlist

20

1075653

Label, CE Marking

1

Create/add to Wishlist

21

1064269

Guard, Finger

1

$9.00

Create/add to Wishlist

22

1064443

Bushing (3/8 x 15/32 x 1-3/32")

1

2

$12.00

Create/add to Wishlist

23

1078979

Screw, Hex Head (1/2-13 x 2-1/4")

1

$10.00

Create/add to Wishlist

24

1026174

Washer (1/2 x 7/8 x 3/64")

1

2

$9.00

Create/add to Wishlist

25

1082596

NLA - Kit, Mast & Boom

1

N/A

D

Create/add to Wishlist

26

1079815

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
14	Charger, Electric Only w/o Power Cord	1	1
21	Bracket, Wall Mount Charger	1	1
21	Bracket, Wall Mount Charger	1	1
14	Charger, Electric Only w/o Power Cord	1	1
6	Battery Pack, Linak	1	1
20	Battery Pack, Linak	1	1
13	Bracket, Wall Mount Charger	1	1
25	Bracket, Wall Mount Charger	1	1
11	Battery Pack, Linak	1	1
20	Charger, Electric Only w/o Power Cord	1	1
2	Battery Pack, Linak	1	1
16	Cord, Power, USA	1	1
11	Battery Pack, Linak	1	1
11	Battery Pack, Linak	1	1
25	Charger, Electric Only w/o Power Cord	1	1
28	Bracket, Wall Mount Charger	1	1
2	Battery Pack, Linak	1	1
26	Bracket, Wall Mount Charger	1	1
24	Charger, Electric Only w/o Power Cord	1	1
13	Bracket, Wall Mount Charger	1	1
25	Bracket, Wall Mount Charger	1	1
28	Cord, Power, USA	1	1
24	Charger, Electric Only w/o Power Cord	1	1
16	Cord, Power, USA	1	1
21	Battery Pack, Linak	1	1
20	Battery Pack, Linak	1	1
27	Charger, Electric Only w/o Power Cord	1	1
	Cord, Power, USA	1	1
17	Cord, Power, USA	1	1
17	Cord, Power, USA	1	1
20	Charger, Electric Only w/o Power Cord	1	1
16	Cord, Power, USA	1	1
29	Cord, Power, USA	1	1
14	Charger, Electric Only w/o Power Cord	1	1
13	Bracket, Wall Mount Charger	1	1
28	Cord, Power, USA	1	1

Kit, Charger - USA Only

1

$595.00

C

Create/add to Wishlist

27

1129466

Spacer (3/8 x 5/8 x 11/32")

1

$12.00

Create/add to Wishlist

10369X000

NLA - Wrench, Allen (3/16")

1

N/A

B

Create/add to Wishlist

1083039

NLA - Cover, Actuator, Padded with Instructions (Electric Lifts Only)

1

N/A

B

Create/add to Wishlist

28

1028769

Locknut (5/16-18)

1

$9.00

E

Create/add to Wishlist

29

1130236

Part/Kit Description	Qty/Pkg	Qty/Asbly
Sheet, Label 600 Lift (Spanish)	1	1
Instruction Sheet, Label Kit (Spanish)	1	1
Sheet, Label 600 Lift (Spanish)	1	1
Instruction Sheet, Label Kit (Spanish)	1	1

NLA - Kit, Label Warning - Bolt Mast w/Instruction - 600 Lift (Spanish)

1

N/A

Create/add to Wishlist

29

1130235

Part/Kit Description	Qty/Pkg	Qty/Asbly
Instruction Sheet, Label Kit (French/Canadian)	1	1
Sheet, Label 600 Lift (French/Canadian)	1	1
Instruction Sheet, Label Kit (French/Canadian)	1	1
Sheet, Label 600 Lift (French/Canadian)	1	1

NLA - Kit, Label Warning - Bolt Mast w/Instruction - 600 Lift (French/Canadian)

1

N/A

Create/add to Wishlist

30

1161593

Package, Rubber Clip

10

1

$59.00

F

Create/add to Wishlist

1079815

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
14	Charger, Electric Only w/o Power Cord	1	1
21	Bracket, Wall Mount Charger	1	1
21	Bracket, Wall Mount Charger	1	1
14	Charger, Electric Only w/o Power Cord	1	1
6	Battery Pack, Linak	1	1
20	Battery Pack, Linak	1	1
13	Bracket, Wall Mount Charger	1	1
25	Bracket, Wall Mount Charger	1	1
11	Battery Pack, Linak	1	1
20	Charger, Electric Only w/o Power Cord	1	1
2	Battery Pack, Linak	1	1
16	Cord, Power, USA	1	1
11	Battery Pack, Linak	1	1
11	Battery Pack, Linak	1	1
25	Charger, Electric Only w/o Power Cord	1	1
28	Bracket, Wall Mount Charger	1	1
2	Battery Pack, Linak	1	1
26	Bracket, Wall Mount Charger	1	1
24	Charger, Electric Only w/o Power Cord	1	1
13	Bracket, Wall Mount Charger	1	1
25	Bracket, Wall Mount Charger	1	1
28	Cord, Power, USA	1	1
24	Charger, Electric Only w/o Power Cord	1	1
16	Cord, Power, USA	1	1
21	Battery Pack, Linak	1	1
20	Battery Pack, Linak	1	1
27	Charger, Electric Only w/o Power Cord	1	1
	Cord, Power, USA	1	1
17	Cord, Power, USA	1	1
17	Cord, Power, USA	1	1
20	Charger, Electric Only w/o Power Cord	1	1
16	Cord, Power, USA	1	1
29	Cord, Power, USA	1	1
14	Charger, Electric Only w/o Power Cord	1	1
13	Bracket, Wall Mount Charger	1	1
28	Cord, Power, USA	1	1

Kit, Charger - USA Only

1

$595.00

I

Note Code	Definition
A	After 3/99 it has been determined that #1065214 is no longer required in order to attach the Mast to Actuator assemblies.
B	Not Shown. On 3/19/2010, the pull pin was replaced with a pull grip that is not serviceable.
C	Includes items 11, 13, 14 and 16.
D	For Boom Assembly see section titled, "Boom Assembly RPA600-1."
E	After 8/21/06 the quantity for Locknut 1064267 item 4 changed to Qty 1 for the Mast Assembly. Locknut 1028769 Item 28 was added to the Mast Assembly.
F	1161593 should slip over Clip on Handset to provide stable positioning for Handset.
G	As of 3/19/2010, the pull pin changed to a pull grip.
H	Part #1078273 Actuator Motor is No Longer Available and replaced with part #60126449 Actuator Motor that now includes press-fitted Bushings.
I	Includes items 11,13,14,16
J	Power Cord not included with Charger.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

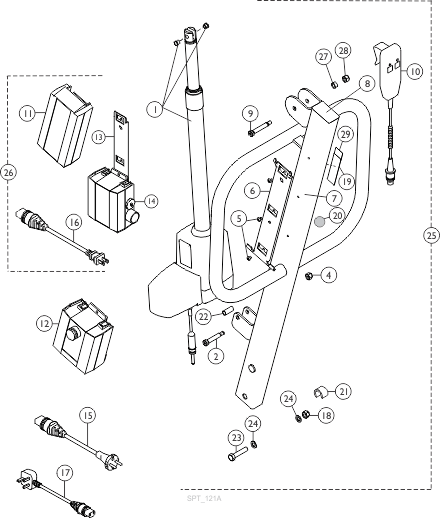

Mast Assembly - RPA600-1
