Accessories - Compact Vent Assembly

Print this page

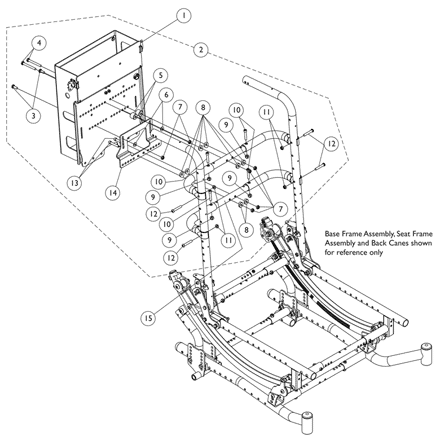

Accessories - Compact Vent Assembly

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1

1162939

Compact Vent Assembly

1

1

$1,461.00

Create/add to Wishlist

Create/add to Wishlist

2

1164122

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Screw (1/4-28 x 5/8")	1	2
4	Screw, Hex Head (1/4-28 x 2-1/4")	1	2
5	Spacer (1/4 x 3/4 x 5/8")	1	2
6	NLA - Washer, Steel (3/16 x 9/16 x 1/16")	1	2
7	Locknut (1/4-28)	1	6
8	Spacer, Coved (1/4 x 11/16 x 1/2")	1	8
9	Locknut (1/4-28)	1	4
10	Screw, Socket Head (1/4-28 x 1-1/4")	1	4
11	Locknut (1/4-28)	1	4
12	Screw, Socket Button Head (1/4-28 x 1-1/2")	1	4
13	NLA - Screw, Socket Head (1/4-28 x 1-1/2")	1	2
14	Bracket, Compact Vent Mounting, Black	1	1
15	Handle, Rigidizing Bar, Black - Right/Left	1	4
	Instruction Sheet, Compact Vent Assembly	1	1
	Instruction Sheet, FC, Compact Vent Assembly	1	1

Kit, Compact Vent Mounting Hardware

1

1

$297.00

A

Create/add to Wishlist

Create/add to Wishlist

16

See Chart

Added to Cart

12" - 16" Wide		14" - 18" Wide		16" - 20" Wide		18" - 22" Wide		20" - 24" Wide
1129473 MSRP: $16.00		1129474 MSRP: $16.00		1129475 MSRP: $16.00		1129476 MSRP: $16.00		1159455 MSRP: $15.00

Create/add to Wishlist

Create/add to Wishlist

#16 Crossbrace Tube

N/A

N/A

N/A

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 3-15 and Instruction Sheets for U.S. and French Canadian. For chairs that do not currently have a Compact Vent Tray, 2 Crossbrace Tubes for the Rigidizing Bar Handles must be purchased as well.

Catalog Literature

Parts Books for Solara® 3G Spree 3G
