16. Power Unit - Turn-Q Plus

Print this page

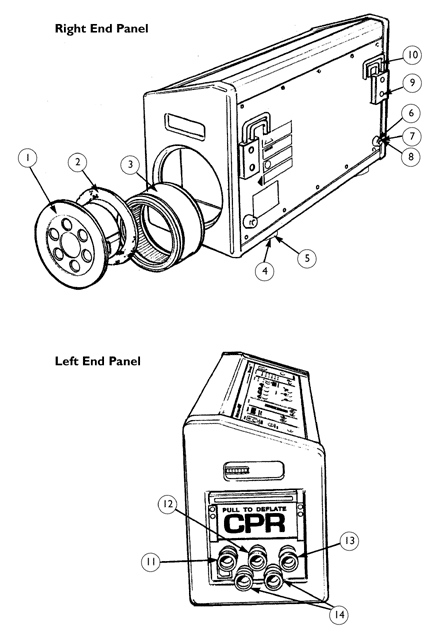

Power Unit - Turn-Q Plus

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	9610045	NLA - Filter Door Assembly (Includes: Door, Spring, Muffler, Gasket and Screws)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	9610035	NLA - Gasket, Filter	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	9172069	NLA - Filter, Air	10	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1101057	NLA - Bumper, Rubber, Grey	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1101058	NLA - Screw (1/4-20 x 5/8")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	686	NLA - Bumper, Composite, Black	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	393	NLA - Screw (#8-32 x 1/2")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	654	NLA - Washer, Lock (#10)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	805	NLA - Screw (1/4-20 x 3/4")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	9382029	NLA - Hook, Interchangeable	1	2	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	9510100	NLA - Coupler, Quick Release, Green	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	9510099	NLA - Coupler, Quick Release, Blue	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	9510098	NLA - Coupler, Quick Release, Red	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	9510097	NLA - Coupler, Quick Release, Yellow	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	BB9612014	NLA - Unit, Power, Turn-Q Plus	1	1		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	See page titled "Miscellaneous Accessories" page for Hook Replacement Kit.
B	Not Shown.
