Pivot Ratchet Assembly
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
5 |
1136021
|
Kit, Pivot Ratchet with Hardware | 2 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
6 | 1009837 | Screw, Socket Button Head (1/4-20 x 1") | 1 | 4 |
$7.20 |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|

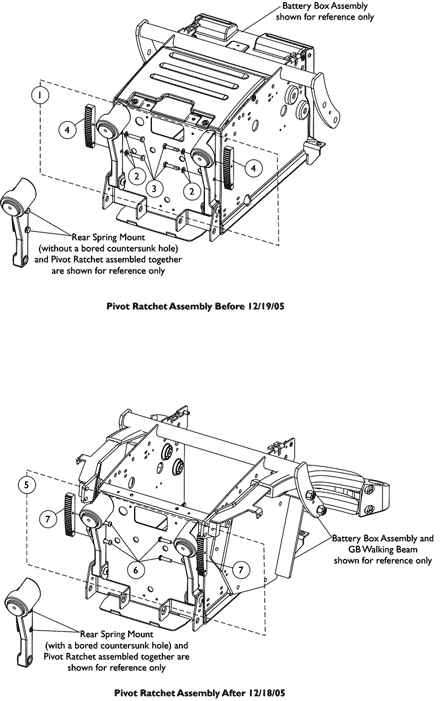

A | Includes items 2-4. Pivot Ratchet was revised 7/14/03 from 3/4" wide to 5/8" wide. For chairs manufactured before 7/14/03, Pivot Ratchets must be ordered in pairs. Order item 1 pair # 1120352 Pivot Ratchet with Hardware Kit |
B | Before 12/19/05. Pivot Ratchet with Hardware dated before 12/19/05 can only be used with Rear Spring Mounts that do not have a bored countersunk hole that mounts the Pivot Ratchet. Verify with customer |
C | 1136021 is NLA. To accommodate chairs manufactured after 12/18/05, order item #1 Pivot Ratchet w/ Hardware Kit and quantity of 4 each of item #6 1009837 Socket Button Head Screw. Item #6 is used with Rear Spring Mounts that have a bored countersunk hole. |
