EQUIPMENT US Site

1

See Chart

Added to Cart

Overall Back Height	Material Back Height	16" Wide	17" Wide	18" Wide
16"	11"	1157826	1157837	1157848
17"	12"	1157827	1157838	1157849
18"	13"	1157828	1157839	1157850
19"	14"	1157829	1157840	1157851
20"	15"	1157830	1157841	1157852 MSRP: $78.00
21"	16"	1157831	1157842	1157853
22"	17"	1157832 MSRP: $74.00	1157843	1157854
23"	18"	1157833	1157844	1157855 MSRP: $78.00
24"	19"	1157834	1157845	1157856
25"	20"	1157835	1157846	1157857
26"	21"	1157836	1157847	1157858

Create/add to Wishlist

#1 Back Pan w/ Vinyl Edge Trim 16"-18" Wide

N/A

Create/add to Wishlist

1

See Chart

Added to Cart

Overall Back Height	Material Back Height	19" Wide	20" Wide	21" Wide	22" Wide
16"	11"	1157859	1157870	1157881	1157892
17"	12"	1157860	1157871	1157882	1157893
18"	13"	1157861	1157872	1157883	1157894
19"	14"	1157862	1157873	1157884	1157895
20"	15"	1157863	1157874	1157885	1157896
21"	16"	1157864	1157875	1157886	1157897
22"	17"	1157865	1157876	1157887	1157898 MSRP: $95.00
23"	18"	1157866	1157877	1157888	1157899 MSRP: $91.00
24"	19"	1157867	1157878 MSRP: $95.00	1157889	1157900
25"	20"	1157868	1157879	1157890	1157901
26"	21"	1157869	1157880	1157891	1157902

Create/add to Wishlist

#1 Back Pan w/ Vinyl Edge Trim 19"-22" Wide

N/A

Create/add to Wishlist

1

See Chart

Added to Cart

Overall Back Height	Material Back Height	23" Wide	24" Wide
16"	11"	1157903	1157914
17"	12"	1157904	1157915
18"	13"	1157905	1157916
19"	14"	1157906	1157917
20"	15"	1157907	1157918
21"	16"	1157908	1157919
22"	17"	1157909	1157920
23"	18"	1157910	1157921
24"	19"	1157911	1157922
25"	20"	1157912	1157923
26"	21"	1157913	1157924 MSRP: $95.00

Create/add to Wishlist

#1 Back Pan w/ Vinyl Edge Trim 23"-24" Wide

N/A

Create/add to Wishlist

2

See Chart

Added to Cart

Overall Back Height	Material Back Height	16" Wide	17" Wide	18" Wide
16"	12-1/2"	1160207	1160218	1160229
17"	13-1/2"	1160208 MSRP: $189.00	1160219	1160230
18"	14-1/2"	1160209	1160220	1160231 MSRP: $189.00
19"	15-1/2"	1160210 MSRP: $189.00	1160221	1160232
20"	16-1/2"	1160211 MSRP: $189.00	1160222 MSRP: $189.00	1160233 MSRP: $189.00
21"	17-1/2"	1160212	1160223	1160234
22"	18-1/2"	1160213	1160224 MSRP: $189.00	1160235 MSRP: $189.00
23"	19-1/2"	1160214 MSRP: $189.00	1160225	1160236 MSRP: $189.00
24"	20-1/2"	1160215 MSRP: $189.00	1160226 MSRP: $189.00	1160237 MSRP: $189.00
25"	21-1/2"	1160216	1160227	1160238 MSRP: $189.00
26"	22-1/2"	1160217 MSRP: $170.00	1160228	1160239 MSRP: $189.00

Create/add to Wishlist

#2 Back Cushion Assembly 16"-18" Wide

N/A

Create/add to Wishlist

2

See Chart

Added to Cart

Overall Back Height	Material Back Height	19" Wide	20" Wide	21" Wide	22" Wide
16"	12-1/2"	1097378- NLA	1097379- NLA	1097380- NLA	1097381- NLA
17"	13-1/2"	1097385- NLA	1097386- NLA	1097387- NLA	1097388- NLA
18"	14-1/2"	1097392 MSRP: $194.00	1097393	1097394- NLA	1097395- NLA
19"	15-1/2"	1097399 MSRP: $194.00	1097400 MSRP: $194.00	1097401 MSRP: $194.00	1097402
20"	16-1/2"	1097406 MSRP: $194.00	1097407 MSRP: $194.00	1097408 MSRP: $175.00	1097409
21"	17-1/2"	1097413 MSRP: $194.00	1097414	1097415 MSRP: $194.00	1097416
22"	18-1/2"	1097420 MSRP: $194.00	1097421	1097422	1097423 MSRP: $194.00
23"	19-1/2"	1097427 MSRP: $194.00	1097428 MSRP: $194.00	1097429	1097430
24"	20-1/2"	1097434 MSRP: $194.00	1097435 MSRP: $194.00	1097436 MSRP: $194.00	1097437
25"	21-1/2"	1160249 MSRP: $184.00	1160260	1160271	1160282 MSRP: $194.00
26"	22-1/2"	1160250	1160261 MSRP: $194.00	1160272	1160283

Create/add to Wishlist

#2 Back Cushion Assembly 19"-22" Wide

N/A

Create/add to Wishlist

2

See Chart

Added to Cart

Overall Back Height	Material Back Height	23" Wide	24" Wide
16"	12-1/2"	1160284	1160295
17"	13-1/2"	1160285	1160296
18"	14-1/2"	1160286	1160297
19"	15-1/2"	1160287	1160298
20"	16-1/2"	1160288	1160299
21"	17-1/2"	1160289	1160300
22"	18-1/2"	1160290	1160301
23"	19-1/2"	1160291	1160302
24"	20-1/2"	1160292	1160303
25"	21-1/2"	1160293- NLA	1160304
26"	22-1/2"	1160294	1160305

Create/add to Wishlist

#2 Back Cushion Assembly 23"-24" Wide

N/A

Create/add to Wishlist

3

See Chart

Added to Cart

Overall Back Height	Material Back Height ABS Plastic Curved	Material Back Height Metal Curved	16" Wide	17" Wide	18" Wide
16"	12"	11"	1106973- NLA	1106983	1106993
17"	13"	12"	1106974	1106984 MSRP: $345.00	1106994 MSRP: $363.00
18"	14"	13"	1106975 MSRP: $363.00	1106985	1106995 MSRP: $363.00
19"	15"	14"	1106976	1106986	1106996 MSRP: $345.00
20"	16"	15"	1106977 MSRP: $363.00	1106987	1106997
21"	17"	16"	1106978	1106988 MSRP: $363.00	1106998 MSRP: $363.00
22"	18"	17"	1106979 MSRP: $345.00	1106989 MSRP: $363.00	1106999 MSRP: $363.00
23"	19"	18"	1106980	1106990	1107000
24"	20"	19"	1106981 MSRP: $363.00	1106991	1107001
25"	21"	20"	1160306	1160308 MSRP: $363.00	1160310 MSRP: $345.00
26"	22"	21"	1160307	1160309	1160311 MSRP: $363.00

Create/add to Wishlist

#3 Back Assembly with Hardware 16"-18" Wide

N/A

Create/add to Wishlist

3

See Chart

Added to Cart

Overall Back Height	Material Back Height ABS Plastic Curved	Material Back Height Metal Curved	19" Wide	20" Wide	21" Wide	22" Wide
16"	12"	11"	1107003	1107013	1107023	1107033
17"	13"	12"	1107004 MSRP: $530.00	1107014	1107024	1107034
18"	14"	13"	1107005	1107015	1107025	1107035
19"	15"	14"	1107006	1107016	1107026	1107036
20"	16"	15"	1107007	1107017 MSRP: $363.00	1107027	1107042- NLA
21"	17"	16"	1107008	1107018 MSRP: $363.00	1107028	1107043
22"	18"	17"	1107009	1107019	1107029	1107044 MSRP: $363.00
23"	19"	18"	1107010	1107020	1107030	1107045
24"	20"	19"	1107011 MSRP: $363.00	1107021 MSRP: $363.00	1107031	1107046
25"	21"	20"	1160312	1160314	1160316	1160318
26"	22"	21"	1160313 MSRP: $363.00	1160315	1160317	1160319

Create/add to Wishlist

#3 Back Assembly with Hardware 19"-22" Wide

N/A

Create/add to Wishlist

3

See Chart

Added to Cart

Overall Back Height	Material Back Height ABS Plastic Curved	Material Back Height Metal Curved	23" Wide	24" Wide
16"	12"	11"	1146430	1146434
17"	13"	12"	1146431	1146435
18"	14"	13"	1146432	1146436
19"	15"	14"	1144746	1144753
20"	16"	15"	1144747	1144754
21"	17"	16"	1144748	1144755
22"	18"	17"	1144749	1144756
23"	19"	18"	1144750	1144757
24"	20"	19"	1144751	1144758
25"	21"	20"	1144752	1144759
26"	22"	21"	1160320	1160321

Create/add to Wishlist

#3 Back Assembly with Hardware 23"-24" Wide

N/A

Create/add to Wishlist

4

1125723

Kit, Hook Fastener w/ Adhesive Back

1

$19.00

A

Create/add to Wishlist

5

1125724

NLA - Trim, Edge, Cut-To-Length, Vinyl Black (96" L)

1

N/A

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

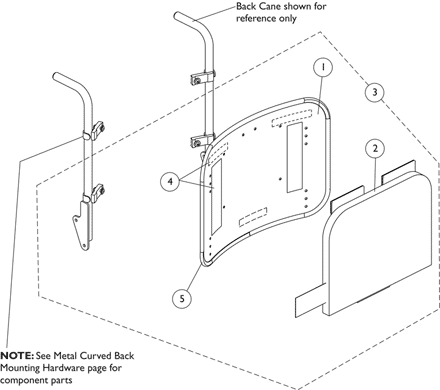

Backs - Metal Curved Assembly (16" - 24" W)
