EQUIPMENT US Site

1

1080182

NLA - Sound Box Top Assembly

1

N/A

B

Create/add to Wishlist

2

1073613

NLA - Gasket, Foam

1

N/A

Create/add to Wishlist

3

See Note

See Footnote

1

N

Create/add to Wishlist

4

1108078

NLA - Filter, Inlet

1

N/A

K

Create/add to Wishlist

4

1131249

Filter, Inlet Sound Reduced

1

$21.00

Create/add to Wishlist

5

2001096

NLA - Fitting, Bulk Head (1/2")

1

N/A

Create/add to Wishlist

6

2002997

NLA - Label, Diagnostic - IRC5LX02

1

N/A

Create/add to Wishlist

7

2001802

NLA - Sound Box Top with Brackets

1

N/A

Create/add to Wishlist

8

P0875X720

NLA - Nut (3/4-16)

1

Create/add to Wishlist

9

2000903

NLA - Tubing, Braided (1/2 X 24")

1

N/A

C

Create/add to Wishlist

9

1088281

NLA - Tubing, Silicon (1/2 x 5")

1

N/A

D

Create/add to Wishlist

2001194

Spring, Compression (17-1/4")

1

N/A

A

Create/add to Wishlist

10

2000411

NLA - Rod, Support

1

2

N/A

C

Create/add to Wishlist

11

P0870X030

NLA - Nut, Keps (1/4-20)

1

2

N/A

Create/add to Wishlist

12

1085014

NLA - Exchanger, Heat

1

N/A

L

Create/add to Wishlist

12

2000884

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
12	NLA - Exchanger, Heat	1	1
13	Tie Wrap (8" L)	1	4
16	Clamp, Hose	1	2
9	NLA - Exchanger, Heat	1	1
5	Clamp, Hose	1	2
8	Tie Wrap (8" L)	1	4

NLA - Kit, Heat Exchanger

1

N/A

Create/add to Wishlist

13

2001682

Tie Wrap (8" L)

1

10

$11.00

Create/add to Wishlist

14

1076750

NLA - Screw, Phillips Pan Head (10-24 x 3/4")

1

4

N/A

Create/add to Wishlist

15

2000755

NLA - Mount, Cable Tie

1

4

N/A

Create/add to Wishlist

16

P0876X026

Clamp, Hose

1

$10.00

Create/add to Wishlist

17

2001375

Hose, Reinforced Silicon (1/2 x 8-1/2")

1

$12.00

Create/add to Wishlist

2000765

NLA - Spring, Extension (7/16 x 7-1/2" L)

1

N/A

A

Create/add to Wishlist

18

2001765

Harness, Horn/Alarm

1

$20.00

Create/add to Wishlist

19

2000834

Grommet

1

4

E

Create/add to Wishlist

20

2002264

Tubing, Reinforced Braided (1/2 x 26")

1

2

Create/add to Wishlist

21

1105552

Part/Kit Description	Qty/Pkg	Qty/Asbly
Tie Wrap (8" L)	1	6
Clamp, Plastic (1/2")	1	2
Bushing, Step (1/2")	1	4
Washer, Flat (#8)	1	2
NLA - Screw, Phillips Pan Head (#8-32 x 3/4")	1	2
NLA - Resistor Service Assembly	1	1
Tie Wrap (3-29/32" L)	1	4
Instruction Sheet	1	1
NLA - Manifold Assembly	1	1
Kit, 4-Way Valve w/ Screws	1	1
Hose, Reinforced Silicon (1/2 x 8-1/2")	1	1
Tubing, Reinforced Braided (1/2x 4-1/8")	1	2
Clamp, Hose	1	1
Tubing, Reinforced Braided (1/2 x 26")	1	2
NLA - Manifold Assembly	1	1
Kit, 4-Way Valve w/ Screws	1	1
Hose, Reinforced Silicon (1/2 x 8-1/2")	1	1
Tubing, Reinforced Braided (1/2x 4-1/8")	1	2
Clamp, Hose	1	1
Tubing, Reinforced Braided (1/2 x 26")	1	2
Tie Wrap (8" L)	1	6
Clamp, Plastic (1/2")	1	2
Bushing, Step (1/2")	1	4
Washer, Flat (#8)	1	2
NLA - Screw, Phillips Pan Head (#8-32 x 3/4")	1	2
NLA - Resistor Service Assembly	1	1
Tie Wrap, Banded (3-29/32" L)	1	2
Instruction Sheet	1	1
NLA - Manifold Assembly	1	1
Kit, 4-Way Valve w/ Screws	1	1
Hose, Reinforced Silicon (1/2 x 8-1/2")	1	1
Tubing, Reinforced Braided (1/2x 4-1/8")	1	2
Clamp, Hose	1	1
Tubing, Reinforced Braided (1/2 x 26")	1	2
Tie Wrap (8" L)	1	6
Clamp, Plastic (1/2")	1	2
Bushing, Step (1/2")	1	4
Washer, Flat (#8)	1	2
NLA - Screw, Phillips Pan Head (#8-32 x 3/4")	1	2
NLA - Resistor Service Assembly	1	1
Tie Wrap, Banded (3-29/32" L)	1	2
Instruction Sheet	1	1

Kit, 4 Way Valve/Manifold Service

1

$194.00

Create/add to Wishlist

22

1083005

NLA - Valve, 4-Way with Screen

1

N/A

Create/add to Wishlist

23

2002265

NLA - Tubing, Reinforced Braided (1/2 x 5-1/4")

1

2

N/A

C

Create/add to Wishlist

23

1095209

Tubing, Reinforced Braided (1/2x 4-1/8")

1

2

D

Create/add to Wishlist

24

1095538

Part/Kit Description	Qty/Pkg	Qty/Asbly
NLA - Muffler Assembly	1	1
NLA - Screw, Phillips Pan Head (#10-16 x 1/2")	1	2
Screw, Socket Button Head (1/4-20 x 3/8")	1	1
NLA - Bracket, Mounting	1	1
Clip, Flange	1	1
NLA - Instruction Sheet	1	1
NLA - Muffler Assembly	1	1
NLA - Screw, Phillips Pan Head (#10-16 x 1/2")	1	2
Screw, Socket Button Head (1/4-20 x 3/8")	1	1
NLA - Bracket, Mounting	1	1
Clip, Flange	1	1
NLA - Instruction Sheet	1	1

NLA - Kit, Muffler Retro-Fit

1

N/A

D ,H

Create/add to Wishlist

25

1085696

NLA - Screw, Phillips Truss Head (1/4-20 x 1/2")

1

C

Create/add to Wishlist

25

1087225

NLA - Screw, Phillips Pan Head (#10-16 x 1/2")

1

2

N/A

D

Create/add to Wishlist

26

2001116

Uni-Muffler

1

$12.00

Create/add to Wishlist

27

1090138

NLA - Screw, Phillips Pan Head (#8-32 x 3/4")

1

2

N/A

Create/add to Wishlist

28

P0870X490

Washer, Flat (#8)

1

2

$0.20

Create/add to Wishlist

29

2001815

Bushing, Step (1/2")

1

4

Create/add to Wishlist

30

2003052

Valve, Operator Pilot

1

$39.00

M

Create/add to Wishlist

1085112

O-Ring, Pilot Valve (35/64" I.D.)

1

$10.00

Create/add to Wishlist

1080971

Part/Kit Description	Qty/Pkg	Qty/Asbly
NLA - Coil, Pilot	1	1
NLA - Instruction Sheet, Pilot Coil	1	1
NLA - Coil, Pilot	1	1
NLA - Instruction Sheet, Pilot Coil	1	1

NLA - Kit, Pilot Coil Replacement

1

N/A

A ,I

Create/add to Wishlist

1080973

Part/Kit Description	Qty/Pkg	Qty/Asbly
NLA - Pilot Valve Poppet and Stem	1	1
NLA - Instruction Sheet, Pilot Coil	1	1
NLA - Pilot Valve Poppet and Stem	1	1
NLA - Instruction Sheet, Pilot Coil	1	1

NLA - Kit, Pilot Valve Stem and Poppet Replacement

1

N/A

A ,J

Create/add to Wishlist

31

2001803

NLA - Valve Sub-Assembly

1

N/A

F ,G

Note Code	Definition
A	Not Shown.
B	Includes Items 2-19.
C	Before 4/10/00.
D	After 4/9/00.
E	After 7/31/00.
F	Includes 13, 16-17, 20-24 and 30.
G	When ordering Valve Sub-Assembly for units built before 4/10/00, it is required the Muffler Retro Kit (#1095538) be ordered as well.
H	Includes Muffler and Mounting.
I	Includes Pilot Coil and Instruction Sheet.
J	Includes Pilot Valve Poppet and Instruction Sheet.
K	Item no longer available, refer to Part #1131249.
L	Part Number 1085014 is No Longer Available by itself. Refer to the Heat Exchanger Kit part number 2000884
M	A new Pilot Valve O-Ring part #1085112 is recommended when ordering a new Operator Pilot Valve
N	Part number is no longer serviceable in the field.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

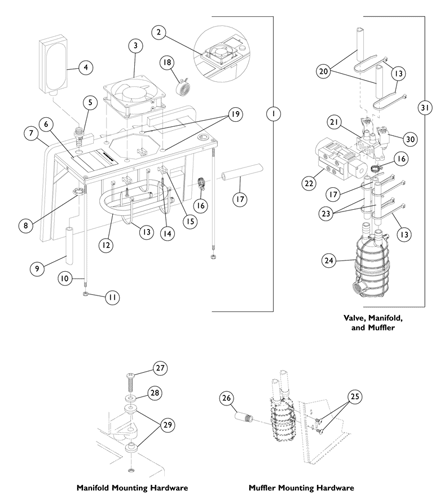

Sound Box Assembly - Non Platinum 5 Models
