Frames - Seat ADJASBA/ADJRECL - Seat Pan & Hdwr. (20" - 22" W x 16" - 22" D)

Print this page

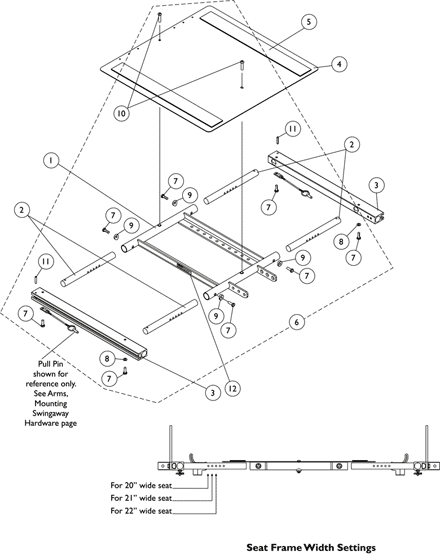

ADJASBA Seat Frame, Seat Pan and Hardware 20

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1163031

Frame, Center Seat, Black

Create/add to Wishlist

1120283

Crossbar, Seat Frame (20" - 24" W)

$16.00

Create/add to Wishlist

1122647

Rail, Seat Frame (16 - 20" D For Formula TRE and 16 - 19" D For ADJASBA)

$72.00

Create/add to Wishlist

1122677

Rail, Seat Frame (20 - 22" D Formula TRE) (19 - 22" D ADJASBA)

$72.00

Create/add to Wishlist

1124388

Pan, Seat, with Hook and Loop Fasteners (20 - 24" W) x (16 - 20" D For Formula TRE) & (16 - 19" D For ADJASBA)

$229.00

Create/add to Wishlist

1124667

Pan, Seat with Hook and Loop Fasteners (20 - 24" W) x (20 - 22" D For Formula TRE) & (19 - 22" D For ADJASBA)

$229.00

Create/add to Wishlist

1043082

Hook Fastener with Adhesive Back (2" W x 18" L)

$12.00

Create/add to Wishlist

1044580

Loop Fastener with Adhesive Back (2" W x 18" L)

$12.00

Create/add to Wishlist

1043084

Hook Fastener with Adhesive back (2" W x 22" L)

$12.00

Create/add to Wishlist

1044584

Loop Fastener with Adhesive back (2" W x 22" L)

$12.00

Create/add to Wishlist

1135501

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
11	NLA - Pin, Roll (3/16 x 1")	1	2
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Washer (1/4 x 1/2 x 1/16")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
8	Washer (1/4 x 1/2 x 1/16")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
6	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
7	Washer (1/4 x 1/2 x 1/16")	1	2
8	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
9	Screw, Socket Button (1/4-20 x 3/4")	1	2
10	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2

Kit, Seat Frame Assembly Hardware

$61.00

Create/add to Wishlist

1114823

Decal, Seat Adjustment Warning

$7.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	For 16" - 19" deep seats
B	For 19" - 22" deep seats
C	Includes items 7-11
D	When ordering a new Center Seat Frame, also order 2 ea. Seat Adjustment Warning Decals (Item #12).
E	FDX model configuration goes up to 22" wide only.
