Transport Brackets and Hardware - TRBKTS Option (Retrofit Installation Kits)

Print this page

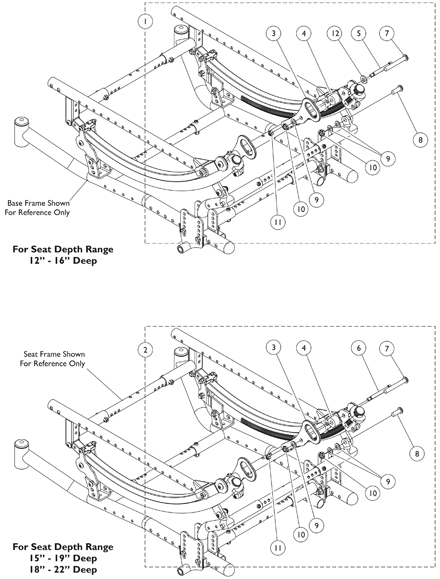

Transport Bracket Hardware for TRBKTS Option

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1

1166089

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Bracket, Tie - Down, Transport - Rear	1	2
4	Spacer, Nylon (3/8 x 1 x 5/8")	1	2
5	NLA - Screw, Shoulder Hex Socket Head (5/16" x 2-1/4", 1/4-20)	1	2
7	Screw, Button Head, Socket (3/8-16 x 2-3/4")	1	2
8	Screw, Socket Button Head (3/8-16 x 1")	1	2
9	Washer (25/64 x 11/16 x 1/32")	1	6
10	Locknut (3/8-16)	1	4
11	Locknut (1/4-20)	1	2
12	Washer (25/64 x 13/16 x 1/8")	1	2
	Instruction Sheet, Transport Brackets, Retrofit	1	1

Kit, Transport Brackets and Mounting Hardware, Rear (12" - 16" D)

1

1

A

Create/add to Wishlist

Create/add to Wishlist

2

1166088

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Bracket, Tie - Down, Transport - Rear	1	2
4	Spacer, Nylon (3/8 x 1 x 5/8")	1	2
6	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	2
7	Screw, Button Head, Socket (3/8-16 x 2-3/4")	1	2
8	Screw, Socket Button Head (3/8-16 x 1")	1	2
9	Washer (25/64 x 11/16 x 1/32")	1	6
10	Locknut (3/8-16)	1	4
11	Locknut (1/4-20)	1	2
	Instruction Sheet, Transport Brackets, Retrofit	1	1

Kit, Transport Brackets and Mounting Hardware, Rear (15" - 22" D)

1

1

$83.00

B

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 3 thru 5, 7 thru 12 and Instruction Sheet not shown in illustration.
B	Includes items 3, 4, and 6 thru 11 and Instruction Sheet not shown in illustration.

Catalog Literature

Parts Books for Solara® 3G Spree 3G
