Back Height	(9720P) Back Cane- No Push Handle 10 Deg. Bend Right	(9720P) Back Cane- No Push Handle 10 Deg. Bend Left	(SRUP) Back Cane- Push Handle Straight Right	(SRUP) Back Cane- Push Handle Straight Left	(SECT) Back Cane- Push Handle 10 Deg. Bend Right	(SECT) Back Cane- Push Handle 10 Deg. Bend Left
12" High	1134058	1134059	1133785 MSRP: $75.00	1133786 MSRP: $75.00	1133814- NLA	1133815- NLA
13" High	1134060	1134061	1133787	1133788	1133816- NLA	1133817- NLA
14" High	1134062	1134063	1133789	1133790	1133818- NLA	1133819- NLA
15" High	1134064	1134065	1133791	1133792	1133820- NLA	1133821- NLA
16" High	1134066	1134067	1133793 MSRP: $98.00	1133794 MSRP: $98.00	1133822 MSRP: $66.00	1133823 MSRP: $66.00
17" High	1134068	1134069	1133795 MSRP: $59.00	1133796 MSRP: $59.00	1133824 MSRP: $66.00	1133825 MSRP: $66.00
18" High	1134070	1134071	Note-B 1143334 MSRP: $98.00	Note-B 1143335 MSRP: $98.00	1133826 MSRP: $66.00	1133827 MSRP: $66.00
19" High	1134072 MSRP: $49.00	1134073 MSRP: $49.00	1133799 MSRP: $60.00	1133800 MSRP: $60.00	1133828 MSRP: $66.00	1133829 MSRP: $66.00
20" High	1134074	1134075	Note-C 1133801 MSRP: $98.00	Note-C 1133802 MSRP: $98.00	1133830 MSRP: $69.00	1133831 MSRP: $69.00
21" High	1134076	1134077	Note-A 1136011 MSRP: $62.00	Note-A 1136012 MSRP: $62.00	1133832 MSRP: $69.00	1133833 MSRP: $69.00
22" High	1134078	1134079	1136013 MSRP: $98.00	1136014 MSRP: $98.00	1133834 MSRP: $72.00	1133835 MSRP: $72.00
23" High	1134080	1134081	Note-A 1136015 MSRP: $66.00	Note-A 1136016 MSRP: $66.00	1133837 MSRP: $69.00	1133838 MSRP: $69.00
24" High	1134082	1134083	Note-A 1136017 MSRP: $98.00	Note-A 1136018 MSRP: $98.00	1133839 MSRP: $94.00	1133840 MSRP: $94.00
25" High	N/A	N/A	Note-A 1160328 MSRP: $40.00	Note-A 1160329 MSRP: $38.00	N/A	N/A
26" High	N/A	N/A	Note-A 1160330 MSRP: $40.00	Note-A 1160331 MSRP: $40.00	N/A	N/A

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	21"-26" High Straight Back Canes with Push Handles are only offered On-Chair when the Back Upholstery is omitted
B	Wheelchairs with a Curved Contoura Back 22" high wll use the 18" high Straight Back Cane w/ Push Handle.
C	Wheelchairs with a (Curve Contoura Back 25" or 28" high) or (Metal Curved Back 20"-26" high) will use the 20" high Straight Cane w/ Push Handle.

#1 Back Cane Assemblies

N/A

Create/add to Wishlist

2

1135506

Package, Foam Hand Grip (9" L)

10

1

$40.00

Create/add to Wishlist

3

1134426

Package, Plug Button, Black (3/4")

10

1

$20.00

Create/add to Wishlist

4

1125709

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
9	Tube, Spreader Bar, Adjustable, Black (16 - 20" W)	1	1
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
2	NLA - Handle, Spreader Bar, Black	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
4	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
5	Anti-Rattle (1")	1	2
6	Tube, Spreader Bar, Adjustable, Black (16 - 20" W)	1	1
7	Locknut (1/4-20)	1	2
6	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
10	Locknut (1/4-20)	1	2
5	NLA - Handle, Spreader Bar, Black	1	2
5	NLA - Handle, Spreader Bar, Black	1	2
6	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable, Black (16 - 20" W)	1	1
10	Locknut (1/4-20)	1	2
5	NLA - Handle, Spreader Bar, Black	1	2
6	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable, Black (16 - 20" W)	1	1
10	Locknut (1/4-20)	1	2
5	NLA - Handle, Spreader Bar, Black	1	2
6	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable, Black (16 - 20" W)	1	1
10	Locknut (1/4-20)	1	2
5	NLA - Handle, Spreader Bar, Black	1	2
6	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable, Black (16 - 20" W)	1	1
10	Locknut (1/4-20)	1	2
5	NLA - Handle, Spreader Bar, Black	1	2
6	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable, Black (16 - 20" W)	1	1
10	Locknut (1/4-20)	1	2
5	NLA - Handle, Spreader Bar, Black	1	2
6	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable, Black (16 - 20" W)	1	1
10	Locknut (1/4-20)	1	2
2	NLA - Handle, Spreader Bar, Black	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
4	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
5	Anti-Rattle (1")	1	2
6	Tube, Spreader Bar, Adjustable, Black (16 - 20" W)	1	1
7	Locknut (1/4-20)	1	2
5	NLA - Handle, Spreader Bar, Black	1	2
6	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable, Black (16 - 20" W)	1	1
10	Locknut (1/4-20)	1	2
2	NLA - Handle, Spreader Bar, Black	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
4	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
5	Anti-Rattle (1")	1	2
6	Tube, Spreader Bar, Adjustable, Black (16 - 20" W)	1	1
7	Locknut (1/4-20)	1	2
5	NLA - Handle, Spreader Bar, Black	1	2
6	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable, Black (16 - 20" W)	1	1
10	Locknut (1/4-20)	1	2
2	NLA - Handle, Spreader Bar, Black	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
4	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
5	Anti-Rattle (1")	1	2
6	Tube, Spreader Bar, Adjustable, Black (16 - 20" W)	1	1
7	Locknut (1/4-20)	1	2
2	NLA - Handle, Spreader Bar, Black	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
4	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
5	Anti-Rattle (1")	1	2
6	Tube, Spreader Bar, Adjustable, Black (16 - 20" W)	1	1
7	Locknut (1/4-20)	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
4	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
5	Anti-Rattle (1")	1	2
6	Tube, Spreader Bar, Adjustable, Black (16 - 20" W)	1	1
7	Locknut (1/4-20)	1	2
2	NLA - Handle, Spreader Bar, Black	1	2
5	NLA - Handle, Spreader Bar, Black	1	2
6	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable, Black (16 - 20" W)	1	1
10	Locknut (1/4-20)	1	2

Kit, Spreader Bar Assembly (16"-20" Wide)

1

$69.00

A

Create/add to Wishlist

4

1125710

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Locknut (1/4-20)	1	2
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable, Black (20 - 24" W)	1	1
6	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
2	NLA - Handle, Spreader Bar, Black	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
4	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
5	Anti-Rattle (1")	1	2
6	Tube, Spreader Bar, Adjustable, Black (20 - 24" W)	1	1
7	Locknut (1/4-20)	1	2
5	NLA - Handle, Spreader Bar, Black	1	2
5	NLA - Handle, Spreader Bar, Black	1	2
6	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable, Black (20 - 24" W)	1	1
10	Locknut (1/4-20)	1	2
10	Locknut (1/4-20)	1	2
5	NLA - Handle, Spreader Bar, Black	1	2
6	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable, Black (20 - 24" W)	1	1
5	NLA - Handle, Spreader Bar, Black	1	2
6	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable, Black (20 - 24" W)	1	1
10	Locknut (1/4-20)	1	2
5	NLA - Handle, Spreader Bar, Black	1	2
6	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable, Black (20 - 24" W)	1	1
10	Locknut (1/4-20)	1	2
5	NLA - Handle, Spreader Bar, Black	1	2
6	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable, Black (20 - 24" W)	1	1
10	Locknut (1/4-20)	1	2
5	NLA - Handle, Spreader Bar, Black	1	2
6	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable, Black (20 - 24" W)	1	1
10	Locknut (1/4-20)	1	2
5	NLA - Handle, Spreader Bar, Black	1	2
6	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable, Black (20 - 24" W)	1	1
10	Locknut (1/4-20)	1	2
2	NLA - Handle, Spreader Bar, Black	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
4	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
5	Anti-Rattle (1")	1	2
6	Tube, Spreader Bar, Adjustable, Black (20 - 24" W)	1	1
7	Locknut (1/4-20)	1	2
2	NLA - Handle, Spreader Bar, Black	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
4	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
5	Anti-Rattle (1")	1	2
6	Tube, Spreader Bar, Adjustable, Black (20 - 24" W)	1	1
7	Locknut (1/4-20)	1	2
5	NLA - Handle, Spreader Bar, Black	1	2
6	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable, Black (20 - 24" W)	1	1
10	Locknut (1/4-20)	1	2

Kit, Spreader Bar Assembly 20"-24" Wide

1

$101.00

A

Create/add to Wishlist

11

1025730

Locknut (5/16-24)

1

2

$8.00

Create/add to Wishlist

12

1031026

Screw w/ Lug (5/16-24 x 1-3/8")

1

2

$10.00

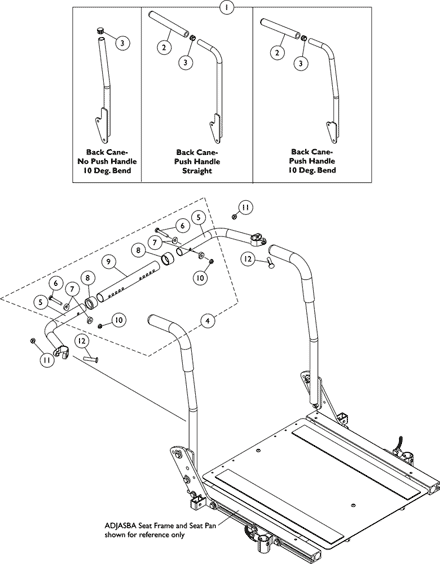

Canes - Back & Spreader Bars - ADJASBA Seats (16" - 22" W)
