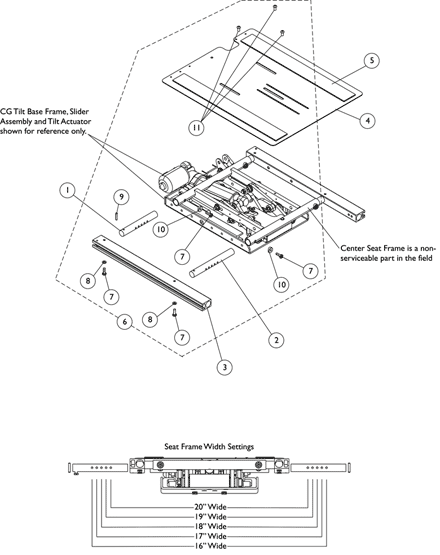

Frames - Seat & Seat Pan w/ Hdwr. - Conv. (16" - 20" W) Curve Contoura (16", 18", 20" W) CGT/CGTE/CGTR/CGTRE

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1166877

NLA - Crossbar, Seat Frame, Rear (16" - 20" W)

N/A

Create/add to Wishlist

1122475

Crossbar, Seat Frame (16" - 20" W)

$29.00

Create/add to Wishlist

1142951

Rail, Seat Frame (For 12 - 19" D Conventional)

$119.00

Create/add to Wishlist

1142952

Rail, Seat Frame (For 19 - 22" D Conventional)

$154.00

Create/add to Wishlist

1166948

Pan, Seat, with Hook and Loop Fasteners (16" - 20" W x 16" - 19" D)

$58.00

Create/add to Wishlist

1166950

Pan, Seat, with Hook and Loop Fasteners (16" - 20" W x 19" - 22" D)

Create/add to Wishlist

1043082

Hook Fastener with Adhesive Back (2" W x 18" L)

$12.00

Create/add to Wishlist

1044580

Loop Fastener with Adhesive Back (2" W x 18" L)

$12.00

Create/add to Wishlist

1043084

Hook Fastener with Adhesive back (2" W x 22" L)

$12.00

Create/add to Wishlist

1044584

Loop Fastener with Adhesive back (2" W x 22" L)

$12.00

Create/add to Wishlist

1169000

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
11	NLA - Screw, Socket Button Head (1/4-20 x 1/2")	1	3
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	4
9	NLA - Pin, Roll (3/16 x 1")	1	2
10	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
11	NLA - Screw, Socket Button Head (1/4-20 x 1/2")	1	3
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	4
9	NLA - Pin, Roll (3/16 x 1")	1	2
10	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
11	NLA - Screw, Socket Button Head (1/4-20 x 1/2")	1	3
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	4
9	NLA - Pin, Roll (3/16 x 1")	1	2
10	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4

NLA - Kit, Seat Frame Assembly Hardware

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	For 16 - 19" deep seat pans
B	For 19 - 22" deep seat pans
C	Includes items 7-11
D	Seat Rails are used for Curve Contoura Seating as well.

Catalog Literature

Parts Books for Formula™CG Powered Seating and Front Riggings CGT/CGTE/CGTR/CGTRE
