Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1121713

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Screw, Hex Head (1/4-20 x 7/8")	1	12
3	Lockwasher, Split (1/4")	1	12
4	NLA - Bolt, Hex Head Cap (1/4-20 x 3/4")	1	2
5	Locknut (1/4-20)	1	2
2	Screw, Hex Head (1/4-20 x 7/8")	1	12
3	Lockwasher, Split (1/4")	1	12
4	NLA - Bolt, Hex Head Cap (1/4-20 x 3/4")	1	2
5	Locknut (1/4-20)	1	2
2	Screw, Hex Head (1/4-20 x 7/8")	1	12
3	Lockwasher, Split (1/4")	1	12
4	NLA - Bolt, Hex Head Cap (1/4-20 x 3/4")	1	2
5	Locknut (1/4-20)	1	2
5	Locknut (1/4-20)	1	2
2	Screw, Hex Head (1/4-20 x 7/8")	1	12
3	Lockwasher, Split (1/4")	1	12
4	NLA - Bolt, Hex Head Cap (1/4-20 x 3/4")	1	2
2	Screw, Hex Head (1/4-20 x 7/8")	1	12
3	Lockwasher, Split (1/4")	1	12
4	NLA - Bolt, Hex Head Cap (1/4-20 x 3/4")	1	2
5	Locknut (1/4-20)	1	2
2	Screw, Hex Head (1/4-20 x 7/8")	1	12
3	Lockwasher, Split (1/4")	1	12
4	NLA - Bolt, Hex Head Cap (1/4-20 x 3/4")	1	2
5	Locknut (1/4-20)	1	2
2	Screw, Hex Head (1/4-20 x 7/8")	1	12
3	Lockwasher, Split (1/4")	1	12
5	Locknut (1/4-20)	1	2
4	NLA - Bolt, Hex Head Cap (1/4-20 x 3/4")	1	2

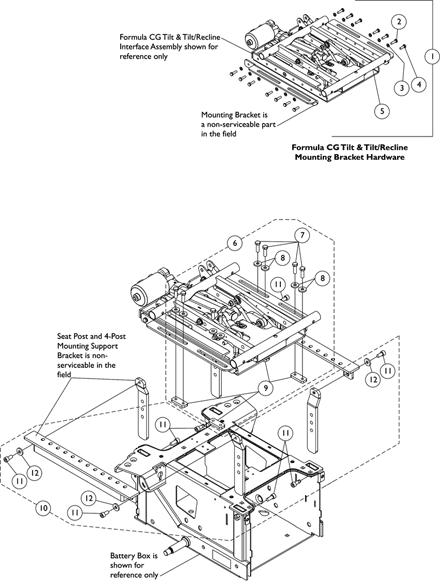

NLA - Kit, Formula CG Tilt & Tilt/Recline Mounting Bracket Hardware

N/A

1168994

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	Screw, Hex Head (5/16-18 x 1")	1	8
8	Washer, Flat (21/64 x 53/64 x 7/64")	1	8
9	Plate, Nut (5/16-18)	1	4

NLA - Kit, Seat Frame Mounting Hardware, Non-Elevate, Formula CG

N/A

1168995

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
11	Screw, Socket Head w/ Patch (M8 x 1.25 x 20mm)	1	8
12	NLA - Washer, Steel (8.4mm x 16mm x 1.6mm)	1	4

NLA - Kit, Seat Post Mounting Hardware, Non-Elevate, Formula CG

N/A
