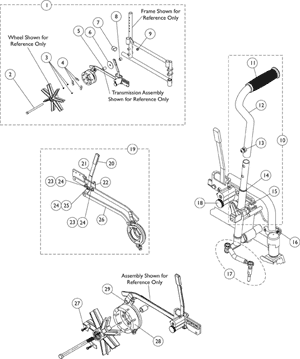

Cyclical Lever Drive -7 Spoke - Before 10/01

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1087540	NLA - Kit, Hub Attachment Hardware - Rear - Right/Left	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1087407	NLA - Screw, Hex Head (7/16-20 x 6-1/2")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1025716	Screw, Phillips Pan Head (#10-32 x 11/16")	1	3	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1087504	NLA - Plate, Support Rear Outer Hub	1	3	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1087354	NLA - Spacer, Hub Inner (7/16 x 3/4 x 1-1/16")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1084822	NLA - Washer, Axle (7/16 x 2-3/8" x 1/16")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	361441	Cap, End, Notched, Black	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1087908	NLA - Spacer, Hub Outer Rear (7/16 x 3/4 x 19/32")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1045608	Locknut (7/16-20)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1087760	NLA - Drive Arm Assembly - Right	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1087759	NLA - Drive Arm Assembly - Left	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1087905	NLA - Grip, Handle (7/8")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1088108	Handle, Black	1	1	$29.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1088117	Screw, Socket Button Head (5/16-18 x 1-1/4")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1088110	Plunger	1	1	$61.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1087420	NLA - Handle, Adjustment, Tapped Type, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1088097	Support Bracket Assembly - Right	1	1	$167.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1088098	Support Bracket Assembly - Left	1	1	$167.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1087477	Steering Link Assembly - Right	1	1	$121.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1087478	Steering Link Assembly - Left	1	1	$121.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	1088010	NLA - Wheel Lock Assembly	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1087733	NLA - Transmission Assembly - Right	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1087734	Transmission Assembly - Left	1	1		C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	1087761	NLA - Knob, Shift Lever, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	1087739	NLA - Lever, Shift	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	1087738	NLA - Plate, Shift	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
23	7930326	NLA - Package, Screw, Hex Head (1/4-20 x 3/4")	25	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
24	1087204	NLA - Washer, Flat (1/4 x 9/16 x 1/32")	1	6	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
25	1087752	NLA - Screw, Socket Head (1/4-20 x 3/4")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
26	1088201	NLA - Transmission Lever	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
27	1025716	Screw, Phillips Pan Head (#10-32 x 11/16")	1	3	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
28	1087278	NLA - Hub, Outer - Rear (7 Spoke)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
29	1087744	NLA - Bolt, Drive Lever	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes Items 2-9.
B	Includes Items 11-15.
C	Includes all of the components shown. Items 20-26 are sold separately.
