Canes - Back - Metal Curved/Curve Contoura - CGT/CGTE - CGT/CGTE w/ BPO Option

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

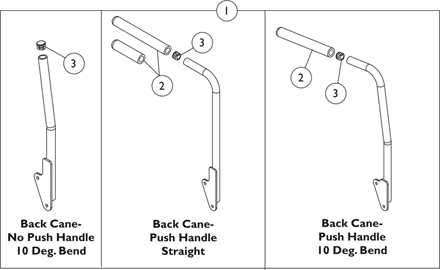

Back Height	Back Cane- No Push Handle 10 Deg. Bend Right	Back Cane- No Push Handle 10 Deg. Bend Left	Back Cane- Push Handle Straight Right	Back Cane- Push Handle Straight Left	Back Cane- Push Handle 10 Deg. Bend Right	Back Cane- Push Handle 10 Deg. Bend Left
16"	1134066	1134067	1133793 MSRP: $98.00	1133794 MSRP: $98.00	1133822 MSRP: $66.00	1133823 MSRP: $66.00
17"	1134068	1134069	1133795 MSRP: $59.00	1133796 MSRP: $59.00	1133824 MSRP: $66.00	1133825 MSRP: $66.00
18"	1134070	1134071	Note-B 1143334 MSRP: $98.00	Note-B 1143335 MSRP: $98.00	1133826 MSRP: $66.00	1133827 MSRP: $66.00
19"	1134072 MSRP: $49.00	1134073 MSRP: $49.00	1133799 MSRP: $60.00	1133800 MSRP: $60.00	1133828 MSRP: $66.00	1133829 MSRP: $66.00
20"	1134074	1134075	Note-C ,E 1133801 MSRP: $98.00	Note-C ,E 1133802 MSRP: $98.00	1133830 MSRP: $69.00	1133831 MSRP: $69.00
20" For Vent	N/A	N/A	Note-D 1148666- NLA	Note-D 1148667- NLA	N/A	N/A
21"	1134076	1134077	Note-A 1136011 MSRP: $62.00	Note-A 1136012 MSRP: $62.00	1133832 MSRP: $69.00	1133833 MSRP: $69.00
21" For Vent	N/A	N/A	Note-D 1148668- NLA	Note-D 1148669- NLA	N/A	N/A
22"	1134078	1134079	Note-A 1136013 MSRP: $98.00	Note-A 1136014 MSRP: $98.00	1133834 MSRP: $72.00	1133835 MSRP: $72.00
22" For Vent	N/A	N/A	Note-D 1148670- NLA	Note-D 1148671- NLA	N/A	N/A
23"	1134080	1134081	Note-A 1136015 MSRP: $66.00	Note-A 1136016 MSRP: $66.00	1133837 MSRP: $69.00	1133838 MSRP: $69.00
24"	1134082	1134083	Note-A 1136017 MSRP: $98.00	Note-A 1136018 MSRP: $98.00	1133839 MSRP: $94.00	1133840 MSRP: $94.00
25"	N/A	N/A	Note-A 1160328 MSRP: $40.00	Note-A 1160329 MSRP: $38.00	N/A	N/A
26"	N/A	N/A	Note-A 1160330 MSRP: $40.00	Note-A 1160331 MSRP: $40.00	N/A	N/A

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
D	This back cane with a short foam grip is used for Vent Tray Applications only. This allows the Double Spreader Bar to be attached. 23 and 24" high back canes do not require the shorter foam grip
E	Curve Contoura Back 25" or 28" high will use the 20" high Straight Cane w/ Push Handle
A	21"-26" high straight back canes with push handles are only offered On-Chair when a BPO Option is ordered
B	Curve Contoura Back 22" high will use the 18" high Straight Back Cane w/ Push Handle.
C	(20"-26" high Metal Curved Backs) ordered On-Chair will use the 20" high Straight Cane w/ Push Handle

#1 Back Cane Assemblies

N/A

Create/add to Wishlist

1135506

Package, Foam Hand Grip (9" L)

$40.00

Create/add to Wishlist

1086460

Grip, Foam, Hand (4-1/2" L)

$12.00

Create/add to Wishlist

1134426

Package, Plug Button, Black (3/4")

$20.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Part number 1086460 is used when a vent tray is ordered on a tilt only system. This allows the double spreader bar to be attached to the 20, 21, 22" back canes. 23 and 24" high back canes do not require the shorter foam grip

Catalog Literature

Parts Books for Formula™CG Powered Seating and Front Riggings CGT/CGTE/CGTR/CGTRE
