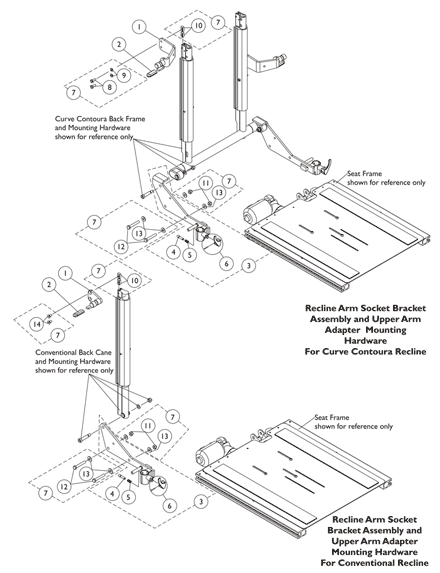

Arms - Mtg. Hdwr. CGTR/CGTRE (16" - 22" W)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Adapter Side		16" Wide		18" Wide		20" Wide		22" Wide
Curve Contoura - Right		1161802 MSRP: $123.00		1161655 MSRP: $123.00		1161660		1161796
Curve Contoura - Left		1161803 MSRP: $123.00		1161656 MSRP: $123.00		1161661 MSRP: $129.00		1161797 MSRP: $129.00

Create/add to Wishlist

#1 Adapter, Curve Contoura Recline Upper Arm

N/A

Create/add to Wishlist

1122595

Adapter, Conventional Recline Upper Arm - Right

$44.00

Create/add to Wishlist

1125809

Adapter, Conventional Recline Upper Arm - Left

$44.00

Create/add to Wishlist

1006490

Tip, Plastic, Black

$8.00

Create/add to Wishlist

1168694

Recline Arm Socket Bracket Assembly, Black - Right

$103.00

Create/add to Wishlist

1168695

Recline Arm Socket Bracket Assembly, Black - Left

$103.00

Create/add to Wishlist

1028594

Pin, Arm Lock, Black

$8.00

Create/add to Wishlist

47471X074

Spring, Arm Lock

$8.00

Create/add to Wishlist

1090768

Kit, Lock Handle w/Rivets (Pair)

$16.00

Create/add to Wishlist

1144582

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
8	Screw, Hex Head w/ Patch (1/4-20 x 5/8")	1	2
9	Washer (1/4 x 1/2 x 1/16")	1	2
10	T-Nut (1/4-20)	1	2
11	Locknut (5/16-18)	1	2
12	NLA - Screw, Hex Head (5/16-18 x 2-1/4")	1	2
13	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
14	NLA - Screw, Socket Flat Head w/ Patch (1/4-20X1/2")	1	2
8	Screw, Hex Head w/ Patch (1/4-20 x 5/8")	1	2
9	Washer (1/4 x 1/2 x 1/16")	1	2
10	T-Nut (1/4-20)	1	2
11	Locknut (5/16-18)	1	2
12	NLA - Screw, Hex Head (5/16-18 x 2-1/4")	1	2
13	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
14	NLA - Screw, Socket Flat Head w/ Patch (1/4-20X1/2")	1	2

Kit, Upper Arm Adapter/Recline Arm Socket Bracket Assembly Mounting Hardware

$78.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes Recline Arm Socket Bracket and items 4 thru 6.
B	Includes items 8 thru 14. Hardware accomodates the mounting of item 1 and item 3.

Catalog Literature

Parts Books for Formula™CG Powered Seating and Front Riggings CGT/CGTE/CGTR/CGTRE
