Accessories - Seat & Chest Positioning Strap Mounting Hardware

Print this page

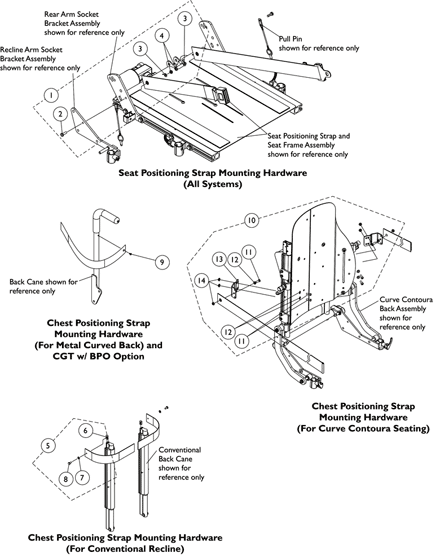

Seat Positioning Strap Mounting Hardware

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1124385

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
5	Locknut (1/4-20)	1	2
4	Washer (1/4 x 1/2 x 1/16")	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
6	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
7	Washer (1/4 x 23/32 x 1/16")	1	2
8	Locknut (1/4-20)	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
3	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
4	Washer (1/4 x 1/2 x 1/16")	1	2
5	Locknut (1/4-20)	1	2
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 1/2 x 1/16")	1	2
4	Locknut (1/4-20)	1	2
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 1/2 x 1/16")	1	2
4	Locknut (1/4-20)	1	2
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 1/2 x 1/16")	1	2
4	Locknut (1/4-20)	1	2
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 1/2 x 1/16")	1	2
4	Locknut (1/4-20)	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
3	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
4	Washer (1/4 x 1/2 x 1/16")	1	2
5	Locknut (1/4-20)	1	2
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 1/2 x 1/16")	1	2
4	Locknut (1/4-20)	1	2
3	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
4	Washer (1/4 x 1/2 x 1/16")	1	2
5	Locknut (1/4-20)	1	2
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 1/2 x 1/16")	1	2
4	Locknut (1/4-20)	1	2

Kit, Seat Positioning Strap Mounting Hardware (both LT & RT sides)

$16.00

Create/add to Wishlist

1090212

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Washer (1/4 x 23/32 x 1/16")	1	2
6	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	2
7	T-Nut (1/4-20)	1	2
8	T-Nut (1/4-20)	1	2
9	Washer (1/4 x 23/32 x 1/16")	1	2
10	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	2
3	Washer (1/4 x 23/32 x 1/16")	1	2
6	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	2
7	T-Nut (1/4-20)	1	2
6	T-Nut (1/4-20)	1	2
7	Washer (1/4 x 23/32 x 1/16")	1	2
8	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	2
6	T-Nut (1/4-20)	1	2
7	Washer (1/4 x 23/32 x 1/16")	1	2
8	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	2

Kit, Chest Positioning Strap Mounting Hardware For Conventional Seating

$38.00

Create/add to Wishlist

1026298

Package, Screw with Washer (#10 x 7/8") (Pair)

$10.00

Create/add to Wishlist

1125798

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
13	Screw, Socket Button (1/4-20 x 3/4")	1	6
14	Washer (1/4 x 1/2 x 1/16")	1	6
15	Bracket, Positioning Strap, Black	1	2
16	Locknut (1/4-20)	1	6
6	Screw, Socket Button (1/4-20 x 3/4")	1	6
7	Washer (1/4 x 1/2 x 1/16")	1	6
8	Bracket, Positioning Strap, Black	1	2
9	Locknut (1/4-20)	1	6
11	Screw, Socket Button (1/4-20 x 3/4")	1	6
12	Washer (1/4 x 1/2 x 1/16")	1	6
13	Bracket, Positioning Strap, Black	1	2
14	Locknut (1/4-20)	1	6
6	Screw, Socket Button (1/4-20 x 3/4")	1	6
7	Washer (1/4 x 1/2 x 1/16")	1	6
8	Bracket, Positioning Strap, Black	1	2
9	Locknut (1/4-20)	1	6
11	Screw, Socket Button (1/4-20 x 3/4")	1	6
12	Washer (1/4 x 1/2 x 1/16")	1	6
13	Bracket, Positioning Strap, Black	1	2
14	Locknut (1/4-20)	1	6
7	Screw, Socket Button (1/4-20 x 3/4")	1	6
8	Washer (1/4 x 1/2 x 1/16")	1	6
9	Bracket, Positioning Strap, Black	1	2
10	Locknut (1/4-20)	1	6

Kit, Chest Positioning Strap''s Mounting Hardware For Contoura Seating (both LT & RT sides)

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-4
B	Includes items 6-8
C	Used for Metal Curve Back and CGT with BPO Opton
D	Includes items 11-14

Catalog Literature

Parts Books for Formula™CG Powered Seating and Front Riggings CGT/CGTE/CGTR/CGTRE
