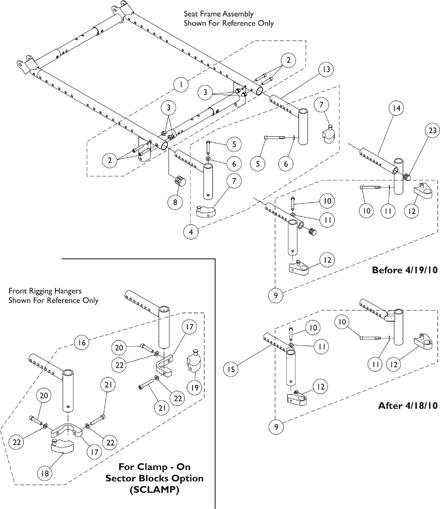

Front Riggings - Hanger Assembly

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1164119

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Screw, Socket Head (1/4-28 x 1-1/4")	1	4
3	Nut, Hex Nylon (1/4-28)	1	4

Kit, Front Rigging Hanger Mounting Hardware (Pair)

$9.00

Create/add to Wishlist

1054866

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
5	Screw, Socket Head w/ Patch (1/4-20 x 2")	1	2
6	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	2
7	NLA - Block, Sector - Right	1	1
7	NLA - Block, Sector - Left	1	1
4	Screw, Hex Head w/ Patch (1/4-20 x 2")	1	2
5	Washer (1/4 x 1/2 x 1/16")	1	2
6	NLA - Block, Sector - Right	1	1
6	NLA - Block, Sector - Left	1	1
4	Screw, Hex Head w/ Patch (1/4-20 x 2")	1	2
5	Washer (1/4 x 1/2 x 1/16")	1	2
6	NLA - Block, Sector - Right	1	1
6	NLA - Block, Sector - Left	1	1
5	Screw, Socket Head w/ Patch (1/4-20 x 2")	1	2
6	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	2
7	NLA - Block, Sector - Right	1	1
N/S	NLA - Block, Sector - Left	1	1

Kit, Sector Block Hardware (Pair)

$55.00

B ,F

Create/add to Wishlist

1127676

Package, Plug Button, Black (1")

$28.00

Create/add to Wishlist

1142975

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
	Washer (1/4 x 1/2 x 1/16")	1	2
	Block, Sector - Right	1	1
	Block, Sector - Left	1	1
	Screw, Socket Head (1/4-20 x 1-3/4")	1	2
	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	2
	Block, Sector - Right	1	1
	Block, Sector - Left	1	1
10	Screw, Socket Head (1/4-20 x 1-3/4")	1	2
11	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	2
12	Block, Sector - Right	1	1
12	Block, Sector - Left	1	1
11	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
12	Washer (1/4 x 1/2 x 1/16")	1	2
13	Block, Sector - Right	1	1
13	Block, Sector - Left	1	1
10	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
11	Washer (1/4 x 1/2 x 1/16")	1	2
12	Block, Sector - Right	1	1
12	Block, Sector - Left	1	1

Kit, Sector Block Hardware, Lift Off (Pair)

$123.00

D ,F

Create/add to Wishlist

1150882

Tube, Support, Front Rigging Hanger, Black - Left

$32.00

Create/add to Wishlist

1150881

Tube, Support, Front Rigging Hanger, Black - Right

$32.00

Create/add to Wishlist

1154025

Tube, Support, Front Rigging Hanger, Offset, Black - Right

$33.00

Create/add to Wishlist

1154026

Tube, Support, Front Rigging Hanger, Offset, Black - Left

$33.00

Create/add to Wishlist

1165562

Tube, Support, Front Rigging Hanger, Offset, Black - Right

$47.00

Create/add to Wishlist

1165563

Tube, Support, Front Rigging Hanger, Offset, Black - Left

$47.00

Create/add to Wishlist

1166097

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
17	Clamp, Sector Block	1	2
18	Sector Block, Clamp On - Left	1	1
19	Sector Block, Clamp On - Right	1	1
20	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
21	NLA - Screw, Socket Head (1/4-28 x 1-1/2")	1	2
22	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	4

Kit, Clamp-On Sector Blocks w/ Hardware

$62.00

E ,F

Create/add to Wishlist

1130583

Package, Plug Button, Black (5/8")

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2 and 3.
B	Includes items 5 thru 7.
C	Plug Button used when Front Rigging Hanger Support Tube is not used.
D	Includes items 10 thru 12.
E	Includes items 17 thru 22.
F	Item numbers 4, 9 or 16 Sector Block Hardware can be assembled to any Front Rigging Hanger Support Tube.
G	Used on chairs manufactured before 4/12/10.
H	Used on chairs manufactured after 4/11/10.

Catalog Literature

Parts Books for Solara® 3G Spree 3G
