Front Riggings - Mounting Hardware - Adductors - CTMT-F/CTMT-FJ Front Riggings (16" - 22" W x 16" - 19" D)

Print this page

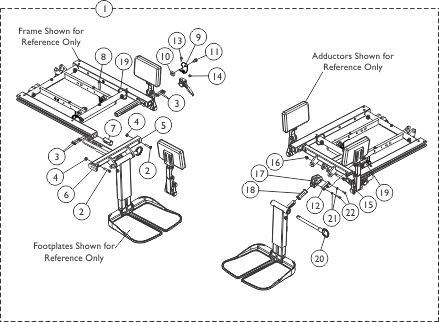

Adductor Mounting Hardware - Center Mount Front Riggings

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1162441

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
3	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
4	Locknut (1/4-20)	1	3
5	Support, Footrest, Center Mount Rigging, Black (16"-19" D)	1	1
6	Support, Seat Pan (16-24" Wide)	1	2
7	Plug, Support	1	2
8	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
9	Bracket, Release Handle Mounting, Black	1	1
10	T-Nut (5/16-18)	1	1
11	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
12	Cable/Brake Assembly	1	1
13	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
14	Nut, Square (#10-32)	1	1
15	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
16	Locknut (1/4-20)	1	1
17	Housing, Ratchet	1	1
18	Bearing, Glide	1	2
19	Tie Wrap (11-1/2" L)	1	2
20	NLA - Pin, Quick Release (5" Long)	1	1
21	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
22	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
2	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
3	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
4	Locknut (1/4-20)	1	3
5	Support, Footrest, Center Mount Rigging, Black (16"-19" D)	1	1
6	Support, Seat Pan (16-24" Wide)	1	2
7	Plug, Support	1	2
8	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
9	Bracket, Release Handle Mounting, Black	1	1
10	T-Nut (5/16-18)	1	1
11	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
12	Cable/Brake Assembly	1	1
13	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
14	Nut, Square (#10-32)	1	1
15	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
16	Locknut (1/4-20)	1	1
17	Housing, Ratchet	1	1
18	Bearing, Glide	1	2
19	Tie Wrap (11-1/2" L)	1	2
20	NLA - Pin, Quick Release (5" Long)	1	1
21	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
22	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
2	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
3	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
4	Locknut (1/4-20)	1	3
5	Support, Footrest, Center Mount Rigging, Black (16"-19" D)	1	1
6	Support, Seat Pan (16-24" Wide)	1	2
7	Plug, Support	1	2
8	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
9	Bracket, Release Handle Mounting, Black	1	1
10	T-Nut (5/16-18)	1	1
11	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
12	Cable/Brake Assembly	1	1
13	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
14	Nut, Square (#10-32)	1	1
15	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
16	Locknut (1/4-20)	1	1
17	Housing, Ratchet	1	1
18	Bearing, Glide	1	2
19	Tie Wrap (11-1/2" L)	1	2
20	NLA - Pin, Quick Release (5" Long)	1	1
21	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
22	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2

NLA - Kit, Adductor Mounting Hardware, Center Mount, Formula TRE

N/A

Create/add to Wishlist

1121079

Cable/Brake Assembly w/ Ratchet Housing and Glide Bearing

$116.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-22.

Catalog Literature

Parts Books for Formula™CG Powered Seating and Front Riggings CGT/CGTE/CGTR/CGTRE
