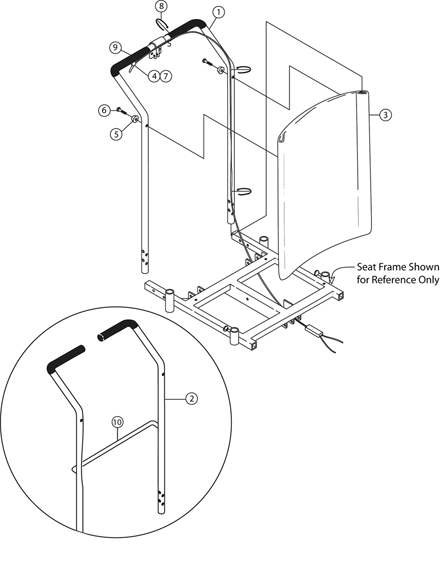

Back Post and Upholstery

Item	Part/Kit	Part/Kit Description	Qty/Asbly	MSRP	View Parts Notes
1	440106-1	Back Post Assembly (15" W x 20" H)	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	440106-2	Back Post Assembly (16" W x 20" H)	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	440106-3	Back Post Assembly (17" W x 20" H)	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	440106-4	Back Post Assembly (18" W x 20" H)	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	440106-5	Back Post Assembly (19" W x 20" H)	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	440106-6	Back Post Assembly (20" W x 20" H)	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1072266-1	Back Post Assembly (15" W x 24" H)	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1072266-2	Back Post Assembly (16" W x 24" H)	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1072266-3	Back Post Assembly (17" W x 24" H)	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1072266-4	Back Post Assembly (18" W x 24" H)	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1072266-5	Back Post Assembly (19" W x 24" H)	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1072266-6	Back Post Assembly (20" W x 24" H)	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	440109	Post, Back - Right, AAB22 (22")	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	440110	Post, Back - Left, AAB22 (22")	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	440112	Post, Back - Right, AAB26 (26")	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	440113	Post, Back - Left AAB26 (26")	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	450009	Back Upholstery for widths (15" & 16")	1		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	450010	Back Upholstery for widths (17" & 18")	1		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	450011	Back Upholstery for widths (19" & 20")	1		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1087493	Cable Assembly C45 (15 - 20" W)	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1087595	Cap, Recessed	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	20228X013	NLA - Screw, Phillips Oval Head (#10 x 7/8")	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	R2763	Screw, Cross Pan Head (10-32 x 5/8")	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1021260	Tie Wrap (5-5/8" L)	3	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1032244	Grip, Foam Hand (9" L)	2	$2.50		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1043872	NLA - Bar, Spreader, Black (15" W)	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1043873	Bar, Spreader, Black (16" W)	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1043874	Bar, Spreader, Black (17" W)	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1043875	Bar, Spreader, Black (18" W)	1	$42.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1043876	Bar, Spreader, Black (19" W)	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1043877	Bar, Spreader, Black (20" W)	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	450111	Hardware Back Mounting	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Specify width and height for item 3 and only available with old Style Back Post, item 1.

Catalog Literature

Parts Books for Concept 45 Tilt-N-Space
