IH3602GXL, IH3752G, IH3802G, IH6302GADH, IH6302G - Access Doors and Panels

Print this page

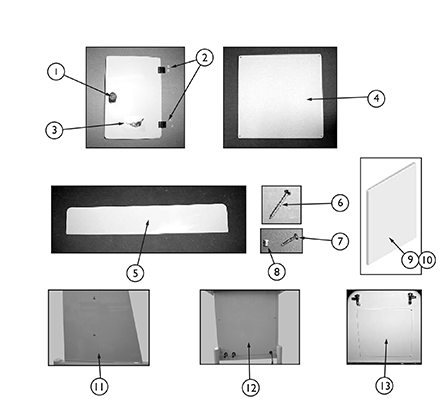

Access Doors and Panels

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	IHPAR7901	Door Latch Assembly (Includes Keys)	1	1	$29.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	PAR5410	Hinge, Access Door	1	1	$14.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	IHPAR7903	NLA - Key Set	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	PARP33W	Panel, White Back Access	1	1		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	PARP32W	Panel, White Bottom Front Access	1	1		C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	IHPAR9909	NLA - Screw, Phillips, Flat Head, Oval (6-32 x 1-1/4")	1	10		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	PAR9938	NLA - Screw, Phillips, Pan Head (10-24 x 1")	1	4	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1097286	Threaded Insert (#10-24)	1	4		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	IHPARSPLW	Panel, Access - Left	1	1		C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	IHPARSPRW	Panel, Access - Right	1	1		C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1165912	Cover, Side - Right	1	1		D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1165913	Cover, Side - Left	1	1		D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1165914	Cover, Rear	1	1		D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1096986	NLA - Panel, Back Access	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Models IH3602GXL, IH3752G, and IH3802G.
B	Models IH3602GXL
C	Models IH3752G and IH3802G.
D	Models IH6302G and IH6302GADH.

Catalog Literature

Parts Books for ICC - Tub TheraPure® IH3602GXL, IH3652G, IH3752G, IH3802G, IH6302G, IH6302GADH
