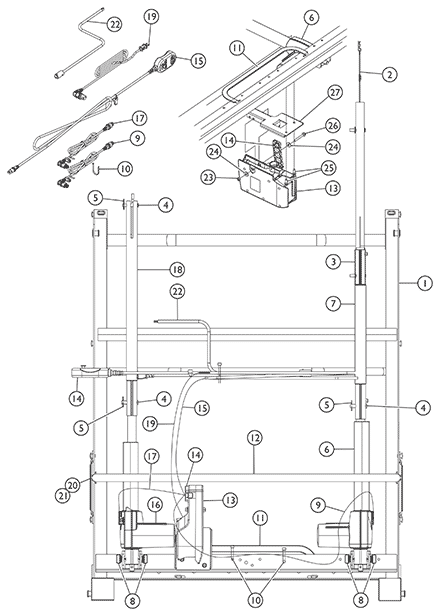

11. Foot Spring - Semi Electric (5890IVC, 5891IVC)
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes |
|---|
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Not Shown. |
| B | US Models Only |
| C | Canadian Models Only. |
| D | Accessory Item - Does not come with assembly. |
| E | This item is separate from the Foot Motor and Clip-Lock. When Having these items serviced, please disconnect parts from one another. |
| F | This item is separate from the Controller and Clip-Lock. When Having these items serviced, please disconnect parts from one another. |
| G | The Pendant is sold as one unit - the cord "extension" is not sold separately. |
| H | Includes: Item 2. |
| I | Includes: Items 4, 5, and 18. |
| J | Includes: Items 2, 3, 4, 5, and 6. |
| K | Includes: Items 22, 23, 24, 25, and 26. |
| L | The Control/Junction Box location was moved from being attached to the Foot Motor to attached to the Bed Frame 6/30/04. If your Bed was manufactured before 6/30/04, please order the Control/Junction Box Mounting Kit for proper installation. |
| M | This is an individual part, please see item #6 for the complete assembly. |
| N | As of 9/22/08 the number of 11 turn Helical Springs used is a quantity of 20 and is applicable to Foot Springs manufactured before 9/22/08 as well. |
| O | Before 5/18/09 |
| P | After 5/17/09. The motor support bracket was relocated from the motor guard to the foot frame assembly. This improves alignment of the head motor shaft and pull tube assembly when attached to the head section lift arm. |
| Q | Part cannot be serviced in the field. Invacare uses a stretching machine to put the springs on. |
| R | An instruction sheet for the Pendant Clips (Part. No. 54000M181) is available to download at invacare.com under "Product Literature Search" link. |
