Front Riggings - Legrest Calf Pads & Ratchet Assemblies

Print this page

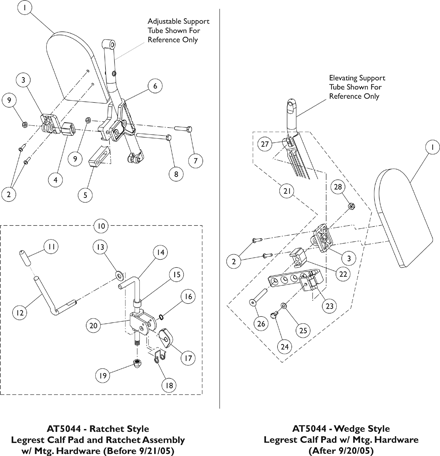

Legrest Calf Pads and Ratchet Assemblies

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

88804529X003

Pad, Legrest, Vinyl - Right

$48.00

A ,B

Create/add to Wishlist

88804529X004

Pad, Legrest, Vinyl - Left

$48.00

A ,B

Create/add to Wishlist

8881091764

Pad, Legrest, Vinyl - Right/Left

$48.00

A ,C

Create/add to Wishlist

40163X006

NLA - Screw, Phillips Pan Head (#10-14 x 1/16")

N/A

Create/add to Wishlist

04526X019

Plate, Legrest Pad

$9.00

Create/add to Wishlist

1025133

Spacer, Legrest Pad, Black

$10.00

Create/add to Wishlist

1032267

Spacer, Legrest Pad Mounting, Black

$10.00

Create/add to Wishlist

1032266

Bracket, Legrest Pad Mounting, Black

$19.00

Create/add to Wishlist

1028514

Screw, Hex Head (5/16-24 x 1-1/2")

$10.00

Create/add to Wishlist

1037110

Screw, Hex Head (5/16-24 x 3-1/2")

$8.00

Create/add to Wishlist

1025730

Locknut (5/16-24)

$8.00

Create/add to Wishlist

1046329

Kit, Elevating Legrest Ratchet Hardware (Pair)

$98.00

D ,G

Create/add to Wishlist

1096974

Kit, Elevating Legrest Ratchet Hardware (Pair)

$59.00

G ,J

Create/add to Wishlist

1040060

Tip, Plastic, Black

$8.00

Create/add to Wishlist

1037126

Handle, Release

$10.00

Create/add to Wishlist

1013519

Washer, Nylon (5/16 x 11/16 x 1/16")

$10.00

Create/add to Wishlist

42326X004

Bar, Ratchet - Right/Left

$8.00

Create/add to Wishlist

42326X001

Bar, Ratchet

$8.00

Create/add to Wishlist

47330X003

Spacer (5/16 x 1/2 x 3/8")

$10.00

Create/add to Wishlist

1040831

Ring, Snap

$8.00

Create/add to Wishlist

1037125

Cam, Legrest

$8.00

Create/add to Wishlist

1037485

Spring, Release

$8.00

Create/add to Wishlist

10261X000

Nut, Acorn (5/16-24)

$10.00

Create/add to Wishlist

04528X002

Bracket, Release, Black

$8.00

Create/add to Wishlist

1042798

NLA - Instruction Sheet, Ratchet Kit

N/A

D ,F ,K

Create/add to Wishlist

1096943

NLA - Instruction Sheet, Ratchet Kit

N/A

F ,J ,L

Create/add to Wishlist

1130754

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
43	T-Nut (1/4-20)	1	1
44	Plate, Legrest Pad	1	1
45	Locknut (5/16-18)	1	1
46	Spacer, Legrest Pad, Black	1	1
47	Bracket Assembly, Adjustable Legrest Pad, Color	1	1
48	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	1
49	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	1
50	Screw, Socket Flat Head (5/16-18 x 2-1/4")	1	1
3	Plate, Legrest Pad	1	1
22	Spacer, Legrest Pad, Black	1	1
23	Bracket Assembly, Adjustable Legrest Pad, Color	1	1
24	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	1
25	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	1
26	Screw, Socket Flat Head (5/16-18 x 2-1/4")	1	1
27	T-Nut (1/4-20)	1	1
28	Locknut (5/16-18)	1	1
43	T-Nut (1/4-20)	1	1
44	Plate, Legrest Pad	1	1
45	Locknut (5/16-18)	1	1
46	Spacer, Legrest Pad, Black	1	1
47	Bracket Assembly, Adjustable Legrest Pad, Color	1	1
48	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	1
49	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	1
50	Screw, Socket Flat Head (5/16-18 x 2-1/4")	1	1
44	Plate, Legrest Pad	1	1
45	Locknut (5/16-18)	1	1
46	Spacer, Legrest Pad, Black	1	1
47	Bracket Assembly, Adjustable Legrest Pad, Color	1	1
48	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	1
49	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	1
50	Screw, Socket Flat Head (5/16-18 x 2-1/4")	1	1
38	T-Nut (1/4-20)	1	1
39	Plate, Legrest Pad	1	1
40	Locknut (5/16-18)	1	1
41	Spacer, Legrest Pad, Black	1	1
42	Bracket Assembly, Adjustable Legrest Pad, Color	1	1
43	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	1
44	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	1
45	Screw, Socket Flat Head (5/16-18 x 2-1/4")	1	1
43	T-Nut (1/4-20)	1	1
42	T-Nut (1/4-20)	1	1
43	Plate, Legrest Pad	1	1
44	Locknut (5/16-18)	1	1
45	Spacer, Legrest Pad, Black	1	1
46	Bracket Assembly, Adjustable Legrest Pad, Color	1	1
47	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	1
48	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	1
49	Screw, Socket Flat Head (5/16-18 x 2-1/4")	1	1
74	T-Nut (1/4-20)	1	1
75	Plate, Legrest Pad	1	1
76	Locknut (5/16-18)	1	1
77	Spacer, Legrest Pad, Black	1	1
78	Bracket Assembly, Adjustable Legrest Pad, Color	1	1
79	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	1
80	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	1
81	Screw, Socket Flat Head (5/16-18 x 2-1/4")	1	1
42	T-Nut (1/4-20)	1	1
43	Plate, Legrest Pad	1	1
44	Locknut (5/16-18)	1	1
45	Spacer, Legrest Pad, Black	1	1
46	Bracket Assembly, Adjustable Legrest Pad, Color	1	1
47	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	1
48	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	1
49	Screw, Socket Flat Head (5/16-18 x 2-1/4")	1	1
43	T-Nut (1/4-20)	1	1
44	Plate, Legrest Pad	1	1
45	Locknut (5/16-18)	1	1
46	Spacer, Legrest Pad, Black	1	1
47	Bracket Assembly, Adjustable Legrest Pad, Color	1	1
48	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	1
49	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	1
50	Screw, Socket Flat Head (5/16-18 x 2-1/4")	1	1
43	T-Nut (1/4-20)	1	1
44	Plate, Legrest Pad	1	1
45	Locknut (5/16-18)	1	1
46	Spacer, Legrest Pad, Black	1	1
47	Bracket Assembly, Adjustable Legrest Pad, Color	1	1
48	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	1
49	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	1
50	Screw, Socket Flat Head (5/16-18 x 2-1/4")	1	1
44	Plate, Legrest Pad	1	1
45	Locknut (5/16-18)	1	1
46	Spacer, Legrest Pad, Black	1	1
47	Bracket Assembly, Adjustable Legrest Pad, Color	1	1
48	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	1
49	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	1
50	Screw, Socket Flat Head (5/16-18 x 2-1/4")	1	1
43	T-Nut (1/4-20)	1	1
42	T-Nut (1/4-20)	1	1
43	Plate, Legrest Pad	1	1
44	Locknut (5/16-18)	1	1
45	Spacer, Legrest Pad, Black	1	1
46	Bracket Assembly, Adjustable Legrest Pad, Color	1	1
47	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	1
48	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	1
49	Screw, Socket Flat Head (5/16-18 x 2-1/4")	1	1

Kit, Legrest Pad Hardware

$92.00

E ,H

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Specify U67 upholstery color when ordering.
B	14-15" wide chairs
C	16-22" wide chairs
D	ATL4A Articulating Legrests
E	Used only on Wedge Style Elevating Legrests (AT5044).
F	Not Shown
G	Includes items 11-20 plus instruction sheet
H	Includes item 3 and items 22-28.
J	Used with Ratchet Style Legrests (AT5044, AT5544).
K	Item is no longer available from the Invacare Service Parts Department. Refer to the Invacare Website under "Product Literature Search". Enter the part number in the "Keywords" field and download a free PDF version copy.
L	Item is no longer available from the Invacare Service Parts Department. Refer to the Invacare Website under "Product Literature Search". Enter the part number in the "Keywords" field and download a free PDF version copy.
