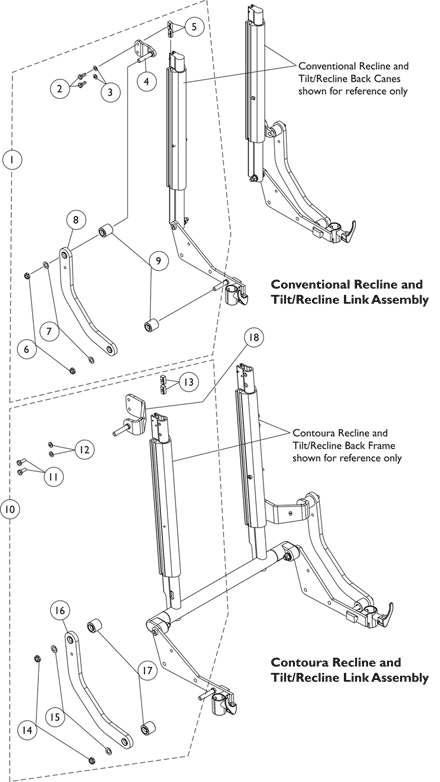

Backs - Recline Shear Link Assemblies

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1125758

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Screw, Hex Head w/ Patch (1/4-20 x 5/8")	1	4
3	Washer (1/4 x 1/2 x 1/16")	1	4
4	Plate, Shear Adapter	1	2
5	T-Nut (1/4-20)	1	4
6	Locknut, Low Profile (3/8-16)	1	4
7	Washer, Flat (3/8 x 11/16 x 1/16")	1	4
8	Link, Recline Shear, Black - Right	1	1
8	Link, Recline Shear, Black - Left	1	1
9	Stand-Off, Recline Shear Link	1	4
2	Screw, Hex Head w/ Patch (1/4-20 x 5/8")	1	4
3	Washer (1/4 x 1/2 x 1/16")	1	4
4	Plate, Shear Adapter	1	2
5	T-Nut (1/4-20)	1	4
6	Locknut, Low Profile (3/8-16)	1	4
7	Washer, Flat (3/8 x 11/16 x 1/16")	1	4
8	Link, Recline Shear, Black - Right	1	1
8	Link, Recline Shear, Black - Left	1	1
9	Stand-Off, Recline Shear Link	1	4
2	Screw, Hex Head w/ Patch (1/4-20 x 5/8")	1	4
3	Washer (1/4 x 1/2 x 1/16")	1	4
4	Plate, Shear Adapter	1	2
5	T-Nut (1/4-20)	1	4
6	Locknut, Low Profile (3/8-16)	1	4
7	Washer, Flat (3/8 x 11/16 x 1/16")	1	4
8	Link, Recline Shear, Black - Right	1	1
8	Link, Recline Shear, Black - Left	1	1
9	Stand-Off, Recline Shear Link	1	4

Kit, Recline Shear Link Assembly Conventional (Pair)

$267.00

Create/add to Wishlist

1168997

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
11	Screw, Hex Head w/ Patch (1/4-20 x 5/8")	1	4
12	Washer (1/4 x 1/2 x 1/16")	1	4
13	T-Nut (1/4-20)	1	4
14	Locknut, Low Profile (3/8-16)	1	4
15	Washer, Flat (3/8 x 11/16 x 1/16")	1	4
16	Link, Recline Shear, Black - Right	1	1
16	Link, Recline Shear, Black - Left	1	1
17	Stand-Off, Recline Shear Link	1	4
11	Screw, Hex Head w/ Patch (1/4-20 x 5/8")	1	4
12	Washer (1/4 x 1/2 x 1/16")	1	4
13	T-Nut (1/4-20)	1	4
14	Locknut, Low Profile (3/8-16)	1	4
15	Washer, Flat (3/8 x 11/16 x 1/16")	1	4
16	Link, Recline Shear, Black - Right	1	1
16	Link, Recline Shear, Black - Left	1	1
17	Stand-Off, Recline Shear Link	1	4
11	Screw, Hex Head w/ Patch (1/4-20 x 5/8")	1	4
12	Washer (1/4 x 1/2 x 1/16")	1	4
13	T-Nut (1/4-20)	1	4
14	Locknut, Low Profile (3/8-16)	1	4
15	Washer, Flat (3/8 x 11/16 x 1/16")	1	4
16	Link, Recline Shear, Black - Right	1	1
16	Link, Recline Shear, Black - Left	1	1
17	Stand-Off, Recline Shear Link	1	4

Kit, Recline Shear Link Assembly, Contoura/Curve Contoura (Pair)

$95.00

Create/add to Wishlist

1131413

NLA - Adapter, Recline Shear Contoura (16" W)

N/A

Create/add to Wishlist

1122580

NLA - Adapter, Recline Shear Contoura (18" W)

N/A

Create/add to Wishlist

1122623

Adapter, Recline Shear Contoura (20" W)

Create/add to Wishlist

1131414

NLA - Adapter, Recline Shear Contoura (22" W)

N/A

Create/add to Wishlist

1131415

NLA - Adapter, Recline Shear Contoura (24" W)

N/A

Create/add to Wishlist

1161800

Adapter, Recline Shear, Curve Contoura (16" W)

$102.00

Create/add to Wishlist

1161653

Adapter, Recline Shear, Curve Contoura (18" W)

$107.00

Create/add to Wishlist

1161658

Adapter, Recline Shear, Curve Contoura (20" W)

$107.00

Create/add to Wishlist

1161959

Adapter, Recline Shear, Curve Contoura (22" W)

Create/add to Wishlist

1161823

Adapter, Recline Shear, Curve Contoura (24" W)

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-9. The Recline Shear Link and Recline Shear Link Stand-Off were revised as of 6/28/10. The Shear Link is now made of thicker material and the Stand-Off is thinner. The kit is backward compatible to all chairs in the field.
B	Includes items 11-17. The Recline Shear Link and Recline Shear Link Stand-Off were revised as of 6/28/10. The Shear Link is now made of thicker material and the Stand-Off is thinner. The kit is backward compatible to all chairs in the field.
C	Not used for Curve Contoura. For use on Contoura only.
D	Not used for Contoura. For use on Curve Contoura only.

Catalog Literature

Parts Books for Formula™ TRE Powered Seating
