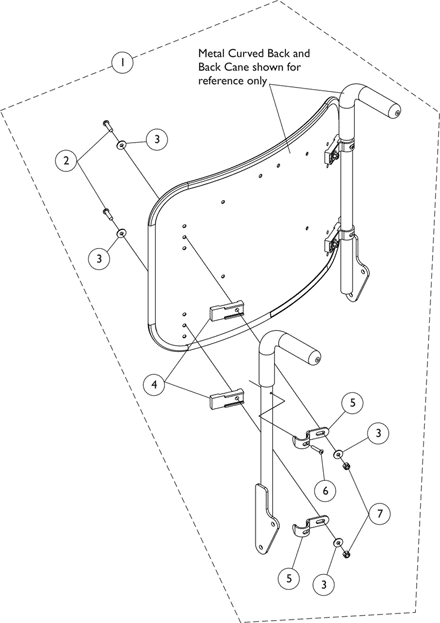

Backs - Mounting Hardware - Metal Curved (16" - 22" W)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1157925

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Screw, Socket Button Head (1/4-20 x 1")	1	4
7	Locknut (1/4-20)	1	4
3	Hook, Back Assembly Mounting	1	4
2	Spacer, Back Pan, Black	1	4
3	Hook, Back Assembly Mounting	1	4
4	Screw, Socket Button Head (1/4-20 x 1")	1	4
5	Washer (1/4 x 23/32 x 1/16")	1	8
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
7	Locknut (1/4-20)	1	4
2	Screw, Socket Button Head (1/4-20 x 1")	1	4
2	Spacer, Back Pan, Black	1	4
3	Hook, Back Assembly Mounting	1	4
4	Screw, Socket Button Head (1/4-20 x 1")	1	4
5	Washer (1/4 x 23/32 x 1/16")	1	8
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
7	Locknut (1/4-20)	1	4
5	Washer (1/4 x 23/32 x 1/16")	1	8
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
2	Spacer, Back Pan, Black	1	4
7	Locknut (1/4-20)	1	4
3	Washer (1/4 x 23/32 x 1/16")	1	8
2	Spacer, Back Pan, Black	1	4
3	Hook, Back Assembly Mounting	1	4
4	Screw, Socket Button Head (1/4-20 x 1")	1	4
5	Washer (1/4 x 23/32 x 1/16")	1	8
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
7	Locknut (1/4-20)	1	4
4	Spacer, Back Pan, Black	1	4
5	Hook, Back Assembly Mounting	1	4
2	Spacer, Back Pan, Black	1	4
3	Hook, Back Assembly Mounting	1	4
4	Screw, Socket Button Head (1/4-20 x 1")	1	4
5	Washer (1/4 x 23/32 x 1/16")	1	8
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
7	Locknut (1/4-20)	1	4
2	NLA - Screw, Cap, Button Head, Socket (1/4-20 x 1")	1	4
3	Washer (1/4 x 23/32 x 1/16")	1	8
4	Spacer, Back Pan, Black	1	4
5	Hook, Back Assembly Mounting	1	4
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
7	Locknut (1/4-20)	1	4
2	Spacer, Back Pan, Black	1	4
3	Hook, Back Assembly Mounting	1	4
4	Screw, Socket Button Head (1/4-20 x 1")	1	4
5	Washer (1/4 x 23/32 x 1/16")	1	8
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
7	Locknut (1/4-20)	1	4
2	Spacer, Back Pan, Black	1	4
3	Hook, Back Assembly Mounting	1	4
4	Screw, Socket Button Head (1/4-20 x 1")	1	4
5	Washer (1/4 x 23/32 x 1/16")	1	8
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
7	Locknut (1/4-20)	1	4
3	Hook, Back Assembly Mounting	1	4
4	Screw, Socket Button Head (1/4-20 x 1")	1	4
5	Washer (1/4 x 23/32 x 1/16")	1	8
2	Spacer, Back Pan, Black	1	4
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
7	Locknut (1/4-20)	1	4
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
2	Screw, Socket Button Head (1/4-20 x 1")	1	4
3	Washer (1/4 x 23/32 x 1/16")	1	8
4	Spacer, Back Pan, Black	1	4
5	Hook, Back Assembly Mounting	1	4
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
7	Locknut (1/4-20)	1	4
2	Spacer, Back Pan, Black	1	4
3	Hook, Back Assembly Mounting	1	4
4	Screw, Socket Button Head (1/4-20 x 1")	1	4
5	Washer (1/4 x 23/32 x 1/16")	1	8
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
7	Locknut (1/4-20)	1	4
2	Spacer, Back Pan, Black	1	4
3	Hook, Back Assembly Mounting	1	4
4	Screw, Socket Button Head (1/4-20 x 1")	1	4
5	Washer (1/4 x 23/32 x 1/16")	1	8
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
7	Locknut (1/4-20)	1	4
2	Spacer, Back Pan, Black	1	4
3	Hook, Back Assembly Mounting	1	4
4	Screw, Socket Button Head (1/4-20 x 1")	1	4
5	Washer (1/4 x 23/32 x 1/16")	1	8
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
7	Locknut (1/4-20)	1	4
2	Spacer, Back Pan, Black	1	4
3	Hook, Back Assembly Mounting	1	4
4	Screw, Socket Button Head (1/4-20 x 1")	1	4
5	Washer (1/4 x 23/32 x 1/16")	1	8
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
7	Locknut (1/4-20)	1	4
2	Spacer, Back Pan, Black	1	4
3	Hook, Back Assembly Mounting	1	4
4	Screw, Socket Button Head (1/4-20 x 1")	1	4
5	Washer (1/4 x 23/32 x 1/16")	1	8
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
7	Locknut (1/4-20)	1	4
2	Spacer, Back Pan, Black	1	4
3	Hook, Back Assembly Mounting	1	4
4	Screw, Socket Button Head (1/4-20 x 1")	1	4
5	Washer (1/4 x 23/32 x 1/16")	1	8
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
7	Locknut (1/4-20)	1	4
2	Spacer, Back Pan, Black	1	4
3	Hook, Back Assembly Mounting	1	4
4	Screw, Socket Button Head (1/4-20 x 1")	1	4
5	Washer (1/4 x 23/32 x 1/16")	1	8
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
7	Locknut (1/4-20)	1	4
2	Spacer, Back Pan, Black	1	4
3	Hook, Back Assembly Mounting	1	4
4	Screw, Socket Button Head (1/4-20 x 1")	1	4
5	Washer (1/4 x 23/32 x 1/16")	1	8
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
7	Locknut (1/4-20)	1	4
2	Spacer, Back Pan, Black	1	4
3	Hook, Back Assembly Mounting	1	4
4	Screw, Socket Button Head (1/4-20 x 1")	1	4
5	Washer (1/4 x 23/32 x 1/16")	1	8
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
7	Locknut (1/4-20)	1	4
2	Spacer, Back Pan, Black	1	4
3	Hook, Back Assembly Mounting	1	4
4	Screw, Socket Button Head (1/4-20 x 1")	1	4
5	Washer (1/4 x 23/32 x 1/16")	1	8
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
7	Locknut (1/4-20)	1	4
2	Spacer, Back Pan, Black	1	4
3	Hook, Back Assembly Mounting	1	4
4	Screw, Socket Button Head (1/4-20 x 1")	1	4
5	Washer (1/4 x 23/32 x 1/16")	1	8
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
7	Locknut (1/4-20)	1	4
2	Spacer, Back Pan, Black	1	4
3	Hook, Back Assembly Mounting	1	4
4	Screw, Socket Button Head (1/4-20 x 1")	1	4
5	Washer (1/4 x 23/32 x 1/16")	1	8
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
7	Locknut (1/4-20)	1	4
2	Spacer, Back Pan, Black	1	4
3	Hook, Back Assembly Mounting	1	4
4	Screw, Socket Button Head (1/4-20 x 1")	1	4
5	Washer (1/4 x 23/32 x 1/16")	1	8
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
7	Locknut (1/4-20)	1	4
2	NLA - Screw, Cap, Button Head, Socket (1/4-20 x 1")	1	4
3	Washer (1/4 x 23/32 x 1/16")	1	8
4	Spacer, Back Pan, Black	1	4
5	Hook, Back Assembly Mounting	1	4
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
7	Locknut (1/4-20)	1	4
2	Spacer, Back Pan, Black	1	4
3	Hook, Back Assembly Mounting	1	4
4	Screw, Socket Button Head (1/4-20 x 1")	1	4
5	Washer (1/4 x 23/32 x 1/16")	1	8
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
7	Locknut (1/4-20)	1	4
2	Spacer, Back Pan, Black	1	4
3	Hook, Back Assembly Mounting	1	4
4	Screw, Socket Button Head (1/4-20 x 1")	1	4
5	Washer (1/4 x 23/32 x 1/16")	1	8
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
7	Locknut (1/4-20)	1	4
2	NLA - Screw, Cap, Button Head, Socket (1/4-20 x 1")	1	4
3	Washer (1/4 x 23/32 x 1/16")	1	8
4	Spacer, Back Pan, Black	1	4
5	Hook, Back Assembly Mounting	1	4
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
7	Locknut (1/4-20)	1	4
2	Spacer, Back Pan, Black	1	4
3	Hook, Back Assembly Mounting	1	4
4	Screw, Socket Button Head (1/4-20 x 1")	1	4
5	Washer (1/4 x 23/32 x 1/16")	1	8
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
7	Locknut (1/4-20)	1	4
2	Spacer, Back Pan, Black	1	4
3	Hook, Back Assembly Mounting	1	4
4	Screw, Socket Button Head (1/4-20 x 1")	1	4
5	Washer (1/4 x 23/32 x 1/16")	1	8
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
7	Locknut (1/4-20)	1	4
2	Screw, Socket Button Head (1/4-20 x 1")	1	4
3	Washer (1/4 x 23/32 x 1/16")	1	8
4	Spacer, Back Pan, Black	1	4
5	Hook, Back Assembly Mounting	1	4
6	NLA - Screw, Phillips Oval Head (#10-16 x 7/8")	1	2
7	Locknut (1/4-20)	1	4

Kit, Metal Curved and Curve Contoura Back Mounting Hardware

$115.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-7
