Electrical Components - Cables, Cords, Boxes, Switches, Actuator and Solenoids

Print this page

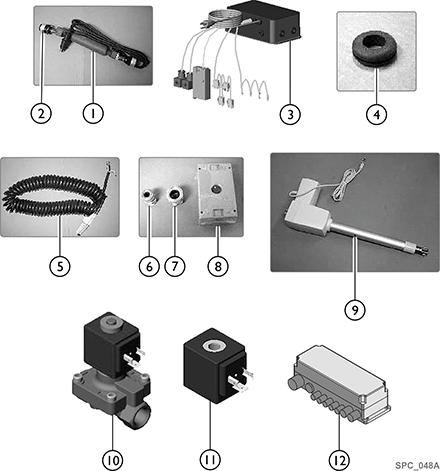

Electrical Components

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1094452	NLA - Switch Plug Harness	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1151444	NLA - Switch Assembly	1	2	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1165892	Control Box, Pump	1	1	$633.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	PAR5291	NLA - Grommet, Rubber	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	TRP1045	Retractable Electrical Cord	1	1		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	PAR2823A	NLA - Grip, Cord, Small (1/2")	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	PAR2823	NLA - Grip, Cord, Large (1/2")	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	PAR2825	NLA - Electrical Box	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	PAR2826	NLA - Electrical Box Cover	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1095052	NLA - Actuator, Tub	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1165895	Valve, Solenoid w/ Coil, Shower (3/8")	1	1	$142.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1165896	Valve, Solenoid w/ Coil, Tub Fill (3/4")	1	1	$194.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1165985	Coil, Electric	1	2	$53.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1095065	NLA - Box, Actuator Control	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Used on Model IH6302GADH.

Catalog Literature

Parts Books for ICC - Tub TheraPure® IH3602GXL, IH3652G, IH3752G, IH3802G, IH6302G, IH6302GADH
