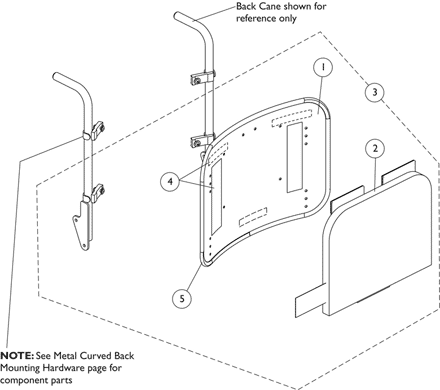

Backs - Metal Curved Assembly

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1125723

Kit, Hook Fastener w/ Adhesive Back

$19.00

Create/add to Wishlist

1125724

NLA - Trim, Edge, Cut-To-Length, Vinyl Black (96" L)

N/A

Create/add to Wishlist

See Chart

Added to Cart

Overall Back Height	Material Back Height	19" Wide	20" Wide	21" Wide	22" Wide
16"	12-1/2"	1097378- NLA	1097379- NLA	1097380- NLA	1097381- NLA
17"	13-1/2"	1097385- NLA	1097386- NLA	1097387- NLA	1097388- NLA
18"	14-1/2"	1097392 MSRP: $194.00	1097393	1097394- NLA	1097395- NLA
19"	15-1/2"	1097399 MSRP: $194.00	1097400 MSRP: $194.00	1097401 MSRP: $194.00	1097402
20"	16-1/2"	1097406 MSRP: $194.00	1097407 MSRP: $194.00	1097408 MSRP: $175.00	1097409
21"	17-1/2"	1097413 MSRP: $194.00	1097414	1097415 MSRP: $194.00	1097416
22"	18-1/2"	1097420 MSRP: $194.00	1097421	1097422	1097423 MSRP: $194.00
23"	19-1/2"	1097427 MSRP: $194.00	1097428 MSRP: $194.00	1097429	1097430
24"	20-1/2"	1097434 MSRP: $194.00	1097435 MSRP: $194.00	1097436 MSRP: $194.00	1097437

Create/add to Wishlist

#2 Back Cushion Assembly 19"-22" Wide

N/A

See Chart

Added to Cart

Overall Back Height	Material Back Height ABS Plastic Curved	Material Back Height Metal Curved	19" Wide	20" Wide	21" Wide	22" Wide
16"	12"	11"	1107003	1107013	1107023	1107033
17"	13"	12"	1107004 MSRP: $530.00	1107014	1107024	1107034
18"	14"	13"	1107005	1107015	1107025	1107035
19"	15"	14"	1107006	1107016	1107026	1107036
20"	16"	15"	1107007	1107017 MSRP: $363.00	1107027	1107042- NLA
21"	17"	16"	1107008	1107018 MSRP: $363.00	1107028	1107043
22"	18"	17"	1107009	1107019	1107029	1107044 MSRP: $363.00
23"	19"	18"	1107010	1107020	1107030	1107045
24"	20"	19"	1107011 MSRP: $363.00	1107021 MSRP: $363.00	1107031	1107046

Create/add to Wishlist

#3 Back Assembly with Hardware 19"-22" Wide

N/A

See Chart

Added to Cart

Overall Back Height	Material Back Height	16" Wide	17" Wide	18" Wide
16"	12-1/2"	1160207	1160218	1160229
17"	13-1/2"	1160208 MSRP: $189.00	1160219	1160230
18"	14-1/2"	1160209	1160220	1160231 MSRP: $189.00
19"	15-1/2"	1160210 MSRP: $189.00	1160221	1160232
20"	16-1/2"	1160211 MSRP: $189.00	1160222 MSRP: $189.00	1160233 MSRP: $189.00
21"	17-1/2"	1160212	1160223	1160234
22"	18-1/2"	1160213	1160224 MSRP: $189.00	1160235 MSRP: $189.00
23"	19-1/2"	1160214 MSRP: $189.00	1160225	1160236 MSRP: $189.00
24"	20-1/2"	1160215 MSRP: $189.00	1160226 MSRP: $189.00	1160237 MSRP: $189.00

Create/add to Wishlist

#2 Back Cushion Assembly 16"-18" Wide

N/A

See Chart

Added to Cart

Overall Back Height	Material Back Height	16" Wide	17" Wide	18" Wide
16"	11"	1157826	1157837	1157848
17"	12"	1157827	1157838	1157849
18"	13"	1157828	1157839	1157850
19"	14"	1157829	1157840	1157851
20"	15"	1157830	1157841	1157852 MSRP: $78.00
21"	16"	1157831	1157842	1157853
22"	17"	1157832 MSRP: $74.00	1157843	1157854
23"	18"	1157833	1157844	1157855 MSRP: $78.00
24"	19"	1157834	1157845	1157856

Create/add to Wishlist

#1 Back Pan w/ Vinyl Edge Trim 16"-18" Wide

N/A

See Chart

Added to Cart

Overall Back Height	Material Back Height	19" Wide	20" Wide	21" Wide	22" Wide
16"	11"	1157859	1157870	1157881	1157892
17"	12"	1157860	1157871	1157882	1157893
18"	13"	1157861	1157872	1157883	1157894
19"	14"	1157862	1157873	1157884	1157895
20"	15"	1157863	1157874	1157885	1157896
21"	16"	1157864	1157875	1157886	1157897
22"	17"	1157865	1157876	1157887	1157898 MSRP: $95.00
23"	18"	1157866	1157877	1157888	1157899 MSRP: $91.00
24"	19"	1157867	1157878 MSRP: $95.00	1157889	1157900

Create/add to Wishlist

#1 Back Pan w/ Vinyl Edge Trim 19"-22" Wide

N/A

See Chart

Added to Cart

Overall Back Height	Material Back Height ABS Plastic Curved	Material Back Height Metal Curved	16" Wide	17" Wide	18" Wide
16"	12"	11"	1106973- NLA	1106983	1106993
17"	13"	12"	1106974	1106984 MSRP: $345.00	1106994 MSRP: $363.00
18"	14"	13"	1106975 MSRP: $363.00	1106985	1106995 MSRP: $363.00
19"	15"	14"	1106976	1106986	1106996 MSRP: $345.00
20"	16"	15"	1106977 MSRP: $363.00	1106987	1106997
21"	17"	16"	1106978	1106988 MSRP: $363.00	1106998 MSRP: $363.00
22"	18"	17"	1106979 MSRP: $345.00	1106989 MSRP: $363.00	1106999 MSRP: $363.00
23"	19"	18"	1106980	1106990	1107000
24"	20"	19"	1106981 MSRP: $363.00	1106991	1107001

Create/add to Wishlist

#3 Back Assembly with Hardware 16"-18" Wide

N/A

Assembly Part Notes

Note Code	Definition
A	Hook Fastener Adhesive Kit is used to attach the Back Cover to the Back Pan and must be ordered when a new Back Pan or Back Assembly is requested.

Catalog Literature

Parts Books for Power Tilt Only (PTO-STM) Elevating Seat w/ PTO (ESS-PTO)
