Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

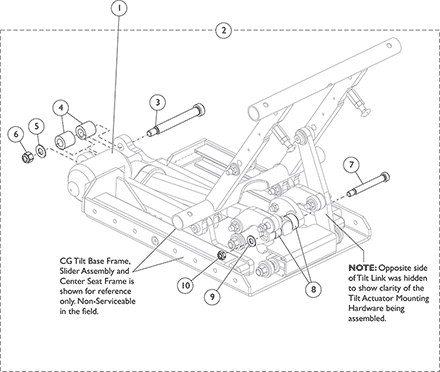

1169823

Kit, Tilt Actuator Motor Assembly and Mounting Hardware

$747.00

1169672

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	NLA - Screw, Shoulder Hex Socket Head (1/2 x 3-1/2", 3/8-16)	1	1
4	Spacer (1/2 x 7/8 x 7/8")	1	2
5	Washer, Nylon (3/8 x 13/16 x 1/16")	1	1
6	Locknut (3/8-16)	1	1
7	NLA - Bolt, Shoulder (3/8 x 2-1/2")	1	1
8	Bushing, Actuator Pivot	1	2
9	Washer, Steel (11/32 x 11/16 x 1/16")	1	1
10	Locknut (5/16-18)	1	1

Kit, Tilt Actuator Motor Mounting Hardware

$53.00

Note Code	Definition
A	Kit includes the Tilt Actuator Motor Assembly, items 3-10 and Installation Instruction Sheets. Additional quantities of items 5, 9 and 10 are included with kit not shown.
B	Includes items 3-10.
