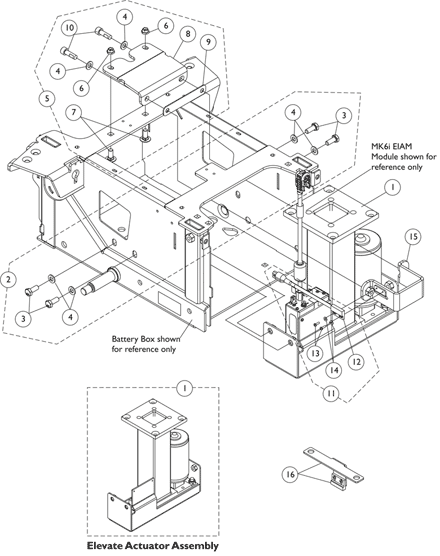

Elevate Actuator Motor and Mounting Hardware

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1168911

Actuator Motor Assembly, Elevate

$1,486.00

Create/add to Wishlist

1168908

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Screw, Hex Head w/ Patch (M8 x 1.25 x 20mm)	1	4
4	NLA - Washer, Steel (8.4mm x 16mm x 1.6mm)	1	4
3	Screw, Hex Head w/ Patch (M8 x 1.25 x 20mm)	1	4
4	NLA - Washer, Steel (8.4mm x 16mm x 1.6mm)	1	4

Kit, Elevate Actuator Mounting Hardware

Create/add to Wishlist

1168907

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
6	NLA - Locknut (M8 x 1.25)	1	2
10	Screw, Socket Head w/ Patch (M8 x 1.25 x 25mm)	1	2
8	Bracket, Elevate Mounting, Black	1	1
4	NLA - Washer, Steel (8.4mm x 16mm x 1.6mm)	1	2
7	NLA - Bolt, Round Head Square Neck (M8 x 1.25 x 20mm)	1	2
9	Isolator, Rubber	1	1
4	NLA - Washer, Steel (8.4mm x 16mm x 1.6mm)	1	2
6	NLA - Locknut (M8 x 1.25)	1	2
7	NLA - Bolt, Round Head Square Neck (M8 x 1.25 x 20mm)	1	2
8	Bracket, Elevate Mounting, Black	1	1
9	Isolator, Rubber	1	1
10	Screw, Socket Head w/ Patch (M8 x 1.25 x 25mm)	1	2

Kit, Elevate Support Bracket and Hardware

$33.00

Create/add to Wishlist

1168909

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
13	NLA - Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
14	NLA - Washer, Plain (1/8 x 5/16 x 1/32")	1	2
12	Sensor, Proximity Switch (7" L)	1	1
12	Sensor, Proximity Switch (7" L)	1	1
13	NLA - Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
14	NLA - Washer, Plain (1/8 x 5/16 x 1/32")	1	2

Kit, Sensor, Proximity Switch and Hardware

Create/add to Wishlist

1163047

Bracket, Elevate Actuator Mounting, Black

Create/add to Wishlist

1166200

NLA - Elevate Actuator Switch and Mounting Bracket Assembly

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 3 and 4
B	Includes items 4 and 6-10
C	Includes items 12-14.
D	Item #11 Proximity Switch Sensor mates up with item #16 to establish a connection. Item #16 shares hardware with the Seat Frame Mounting Hardware. See page titled "ADJASBA Seat Frame Mounting Hardware - Elevate (CGE)" for additional assembly information.
