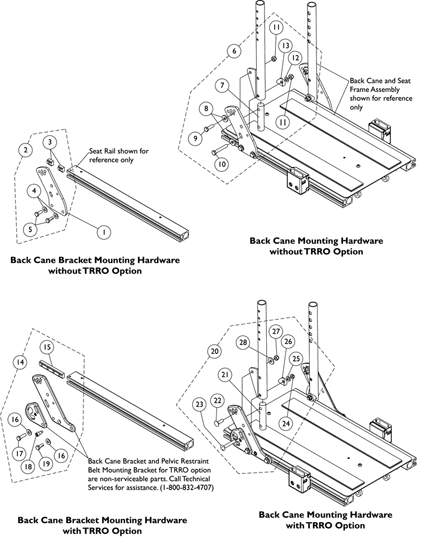

Canes - Back - Mounting Hardware - ADJASBA Seats (12" - 16" W)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1146452

NLA - Bracket, Back Cane Mounting, Black

N/A

Create/add to Wishlist

1154110

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	T-Nut (5/16-18)	1	2
5	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
4	Washer, Steel (5/16 x 3/4 x 1/16")	1	2
3	T-Nut (5/16-18)	1	2
4	Washer, Steel (5/16 x 3/4 x 1/16")	1	2
5	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
3	T-Nut (5/16-18)	1	2
4	Washer, Steel (5/16 x 3/4 x 1/16")	1	2
5	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2

Kit, Back Cane Bracket Mounting Hardware

$11.00

Create/add to Wishlist

1147973

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	NLA - Insert, Back Cane	1	2
10	NLA - Screw, Hex Head (5/16-18 x 2")	1	2
11	Locknut (5/16-18)	1	4
12	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
9	Screw, Hex Head (5/16-18 x 1")	1	2
8	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
13	Spacer, Coved (3/4 x 1 x 1/2")	1	2
2	NLA - Insert, Back Cane	1	2
3	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
4	Screw, Hex Head (5/16-18 x 1")	1	2
5	NLA - Screw, Hex Head (5/16-18 x 2")	1	2
6	Locknut (5/16-18)	1	4
7	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
8	Spacer, Coved (3/4 x 1 x 1/2")	1	2
7	NLA - Insert, Back Cane	1	2
8	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
9	Screw, Hex Head (5/16-18 x 1")	1	2
10	NLA - Screw, Hex Head (5/16-18 x 2")	1	2
11	Locknut (5/16-18)	1	4
12	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
13	Spacer, Coved (3/4 x 1 x 1/2")	1	2
2	NLA - Insert, Back Cane	1	2
3	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
4	Screw, Hex Head (5/16-18 x 1")	1	2
5	NLA - Screw, Hex Head (5/16-18 x 2")	1	2
6	Locknut (5/16-18)	1	4
7	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
8	Spacer, Coved (3/4 x 1 x 1/2")	1	2
7	NLA - Insert, Back Cane	1	2
8	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
9	Screw, Hex Head (5/16-18 x 1")	1	2
10	NLA - Screw, Hex Head (5/16-18 x 2")	1	2
11	Locknut (5/16-18)	1	4
12	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
13	Spacer, Coved (3/4 x 1 x 1/2")	1	2

Kit, Back Cane Mounting Hardware (Pair)

Create/add to Wishlist

1154111

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
17	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1")	1	1
18	Screw, Socket Head (5/16-18 x 3/4")	1	1
15	T-Nut (5/16-18)	1	1
16	Washer, Steel (5/16 x 3/4 x 1/16")	1	2
19	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	1
11	T-Nut (5/16-18)	1	1
12	Washer, Steel (5/16 x 3/4 x 1/16")	1	2
13	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1")	1	1
14	Screw, Socket Head (5/16-18 x 3/4")	1	1
15	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	1
15	T-Nut (5/16-18)	1	1
16	Washer, Steel (5/16 x 3/4 x 1/16")	1	2
17	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1")	1	1
18	Screw, Socket Head (5/16-18 x 3/4")	1	1
19	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	1

NLA - Kit, Back Cane Bracket Mounting Hardware TRRO

N/A

Create/add to Wishlist

1147968

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
21	NLA - Insert, Back Cane	1	2
23	Screw, Round Head Square Neck (5/16-18 x 2")	1	2
26	Spacer, Coved (3/4 x 1 x 1/2")	1	2
28	Washer, Flat (21/64 x 53/64 x 7/64")	1	2
22	Bolt, Round Head Square Neck (5/16-18 x 1")	1	2
25	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
27	Locknut (5/16-18)	1	2
24	Locknut (5/16-18)	1	2
2	NLA - Insert, Back Cane	1	2
3	Bolt, Round Head Square Neck (5/16-18 x 1")	1	2
4	Screw, Round Head Square Neck (5/16-18 x 2")	1	2
5	Locknut (5/16-18)	1	2
6	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
7	Spacer, Coved (3/4 x 1 x 1/2")	1	2
8	Locknut (5/16-18)	1	2
9	Washer, Flat (21/64 x 53/64 x 7/64")	1	2
21	NLA - Insert, Back Cane	1	2
22	Bolt, Round Head Square Neck (5/16-18 x 1")	1	2
23	Screw, Round Head Square Neck (5/16-18 x 2")	1	2
24	Locknut (5/16-18)	1	2
25	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
26	Spacer, Coved (3/4 x 1 x 1/2")	1	2
27	Locknut (5/16-18)	1	2
28	Washer, Flat (21/64 x 53/64 x 7/64")	1	2

Kit, Back Cane Mounting Hardware TRRO (Pair)

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 3-5
B	Includes items 7-13
C	Includes items 15-19
D	Includes items 21-28

Catalog Literature

Parts Books for FDX® (Formula™ CGE option included) and Front Riggings
