Accessories - Miscellaneous

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Chair Width	Part Number	Seat/Chest Positioning Strap w/ Auto Style Buckle Length (Eyelet to Eyelet)
12" - 13" Wide	1036527 MSRP: $63.00	33" L
14" - 19" Wide	1004310 MSRP: $69.10	48" L
20" - 22" Wide	1034625 MSRP: $63.00	61" L

Create/add to Wishlist

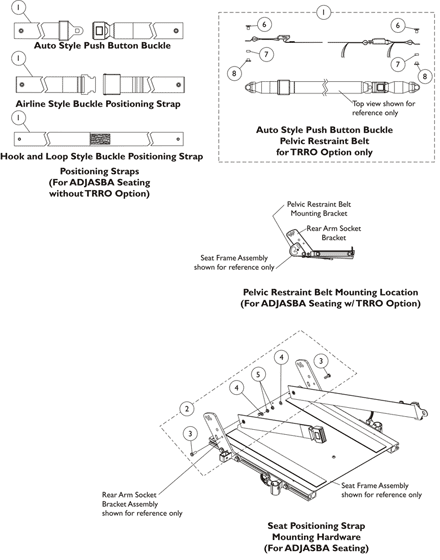

#1 Auto Style Push Button Positioning Strap

N/A

Create/add to Wishlist

See Chart

Added to Cart

Chair Width		Part Number		Seat/Chest Positioning Strap w/ Airline Style Buckle Length (Eyelet to Eyelet)
16" - 19" Wide		TAGTS1034751- NLA		46" L
20" - 22" Wide		Note-A 1034752- NLA		61" L

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	1034752 Airline Buckle Style is No Longer Available. Use Auto Style part number 1034625 as a replacement.

#1 Airline Style Positioning Strap

N/A

Create/add to Wishlist

See Chart

Added to Cart

Chair Width		Part Number		Seat/Chest Positioning Strap w/ Hook and Loop Style Buckle Length (Eyelet to Eyelet)
12" - 15" Wide		Note-A 1034744 MSRP: $62.00		45" L
16" - 22" Wide		Note-A 1034745 MSRP: $63.00		61" L

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Hook and Loop Style Positioning Straps for power chairs is used for chest positioning only.

#1 Hook and Loop Style Positioning Strap

N/A

Create/add to Wishlist

See Chart

Added to Cart

Chair Width		Part Number		Pelvic Restraint Belt w/ Auto Style Buckle Length For TRRO Option Only (Bushing Hole to Bushing Hole Length)
12" - 16" Wide		1168513		37" L
16" - 22" Wide		Note-A 1168514		55" L

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Includes the Pelvic Restraint Belt and items 8-10

#1 Pelvic Restraint Belt w/ Auto Style Buckle (TRRO Option Only)

N/A

Create/add to Wishlist

1124385

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
5	Locknut (1/4-20)	1	2
4	Washer (1/4 x 1/2 x 1/16")	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
6	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
7	Washer (1/4 x 23/32 x 1/16")	1	2
8	Locknut (1/4-20)	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
3	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
4	Washer (1/4 x 1/2 x 1/16")	1	2
5	Locknut (1/4-20)	1	2
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 1/2 x 1/16")	1	2
4	Locknut (1/4-20)	1	2
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 1/2 x 1/16")	1	2
4	Locknut (1/4-20)	1	2
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 1/2 x 1/16")	1	2
4	Locknut (1/4-20)	1	2
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 1/2 x 1/16")	1	2
4	Locknut (1/4-20)	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
3	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
4	Washer (1/4 x 1/2 x 1/16")	1	2
5	Locknut (1/4-20)	1	2
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 1/2 x 1/16")	1	2
4	Locknut (1/4-20)	1	2
3	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
4	Washer (1/4 x 1/2 x 1/16")	1	2
5	Locknut (1/4-20)	1	2
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 1/2 x 1/16")	1	2
4	Locknut (1/4-20)	1	2

Kit, Seat Positioning Strap Mounting Hardware (both LT & RT sides)

$16.00

Create/add to Wishlist

1134055

NLA - Screw, Hex Head (3/8-24 x 5/8")

N/A

Create/add to Wishlist

1134054

NLA - Bushing, Nylon (1/2 x 9/16 x 9/32")

N/A

Create/add to Wishlist

1134056

NLA - Nut, Barrel (3/8-24)

N/A

Create/add to Wishlist

40176X010

NLA - Pump, Tire

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Before ordering a replacement Pelvic Restraint Belt for TRRO Option, Please read the information provided on page titled "TRRO and TRBKTS Option Clarification Reference" page
B	Includes items 3-5
C	Not Shown

Catalog Literature

Parts Books for FDX® (Formula™ CGE option included) and Front Riggings
