1

1097074

NLA - Handle Assembly, Lift

1

N/A

Create/add to Wishlist

2

1070803

Pad, Knee

1

$120.00

Create/add to Wishlist

3

1097071

Mounting, Pad

1

$139.00

Create/add to Wishlist

4

1073705

NLA - Decal, Reliant 350 Logo

1

2

N/A

Create/add to Wishlist

5

1073699

NLA - Decal, Warning - Reliant 350

1

N/A

Create/add to Wishlist

6

1065360

Cap, End, Black (1-1/4 x 2")

1

$8.00

Create/add to Wishlist

7

1071955

Screw, Socket Button Head (5/16-18 x 3/4")

1

4

$9.00

Create/add to Wishlist

8

1025704

Washer, Flat (5/16 x 5/8 x 1/16")

1

5

$7.20

Create/add to Wishlist

9

1064267

Locknut (5/16-18)

1

2

$10.00

Create/add to Wishlist

10

1078981

Locknut (1/2-13)

1

$10.00

Create/add to Wishlist

11

1068305

Washer (1/2")

1

2

$10.00

Create/add to Wishlist

12

1078979

Screw, Hex Head (1/2-13 x 2-1/4")

1

$10.00

Create/add to Wishlist

13

1065214

Washer, Flat (3/8 x 11/16 x 1/16")

1

$10.00

Create/add to Wishlist

14

1064455

Screw, Shoulder Hex Socket Head (3/8 x 1-3/4", 5/16-18)

1

2

$10.00

Create/add to Wishlist

15

1064443

Bushing (3/8 x 15/32 x 1-3/32")

1

2

$12.00

Create/add to Wishlist

16

1078974

Actuator Motor

1

$927.00

B ,C

Create/add to Wishlist

1133691

Package, Emergency Pull Pin

10

1

$60.00

A

Create/add to Wishlist

17

1071833

NLA - Bracket, Drive, Grey - Lower

1

N/A

Create/add to Wishlist

18

1071832

NLA - Bracket, Drive, Grey - Upper

1

N/A

Create/add to Wishlist

19

1069548

NLA - Washer, Steel (7/16 x 13/16 x 1/8")

1

N/A

Create/add to Wishlist

20

1078276

Battery Pack, Linak

1

$246.00

Create/add to Wishlist

21

1078980

Screw, Phillips Pan Head (#10-24 x 1/4")

1

3

$10.00

Create/add to Wishlist

22

1078284

Bracket, Battery - Electric Only

1

$49.00

Create/add to Wishlist

23

1078275

Controller - Electric Only

1

$271.00

Create/add to Wishlist

24

1078274

Charger, Electric Only w/o Power Cord

1

$286.00

E

Create/add to Wishlist

25

1078306

Bracket, Wall Mount Charger

1

$54.00

Create/add to Wishlist

26

1177604

Pendant, Two Channel w/ Hook

1

$68.00

Create/add to Wishlist

27

1079134

NLA - Cord, UK - Electric Only

1

N/A

Create/add to Wishlist

28

1079135

NLA - Cord, European - Electric Only

1

N/A

Create/add to Wishlist

29

1079133

Cord, Power, USA

1

$20.00

Create/add to Wishlist

30

1078982

Strap, Leg

1

$38.00

D

Create/add to Wishlist

1075653

Label, CE Marking

1

A

Create/add to Wishlist

31

1161593

Package, Rubber Clip

10

1

$59.00

Create/add to Wishlist

1079815

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
14	Charger, Electric Only w/o Power Cord	1	1
21	Bracket, Wall Mount Charger	1	1
21	Bracket, Wall Mount Charger	1	1
14	Charger, Electric Only w/o Power Cord	1	1
6	Battery Pack, Linak	1	1
20	Battery Pack, Linak	1	1
13	Bracket, Wall Mount Charger	1	1
25	Bracket, Wall Mount Charger	1	1
11	Battery Pack, Linak	1	1
20	Charger, Electric Only w/o Power Cord	1	1
2	Battery Pack, Linak	1	1
16	Cord, Power, USA	1	1
11	Battery Pack, Linak	1	1
11	Battery Pack, Linak	1	1
25	Charger, Electric Only w/o Power Cord	1	1
28	Bracket, Wall Mount Charger	1	1
2	Battery Pack, Linak	1	1
26	Bracket, Wall Mount Charger	1	1
24	Charger, Electric Only w/o Power Cord	1	1
13	Bracket, Wall Mount Charger	1	1
25	Bracket, Wall Mount Charger	1	1
28	Cord, Power, USA	1	1
24	Charger, Electric Only w/o Power Cord	1	1
16	Cord, Power, USA	1	1
21	Battery Pack, Linak	1	1
20	Battery Pack, Linak	1	1
27	Charger, Electric Only w/o Power Cord	1	1
	Cord, Power, USA	1	1
17	Cord, Power, USA	1	1
17	Cord, Power, USA	1	1
20	Charger, Electric Only w/o Power Cord	1	1
16	Cord, Power, USA	1	1
29	Cord, Power, USA	1	1
14	Charger, Electric Only w/o Power Cord	1	1
13	Bracket, Wall Mount Charger	1	1
28	Cord, Power, USA	1	1

Kit, Charger - USA Only

1

$595.00

F

Note Code	Definition
A	Not Shown. On 3/19/2010, the pull pin was replaced with a pull grip that is not serviceable.
B	As of 3/19/2010, the pull pin changed to a pull grip.
C	This item is for all Lifts manufactured before 7/1/2010. Please check Lift serial numbers before ordering.
D	This is an accessory only and is not sent out with new units. Used for additional leg support.
E	Power Cord not included with Charger.
F	Includes items 20,24,25,29

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

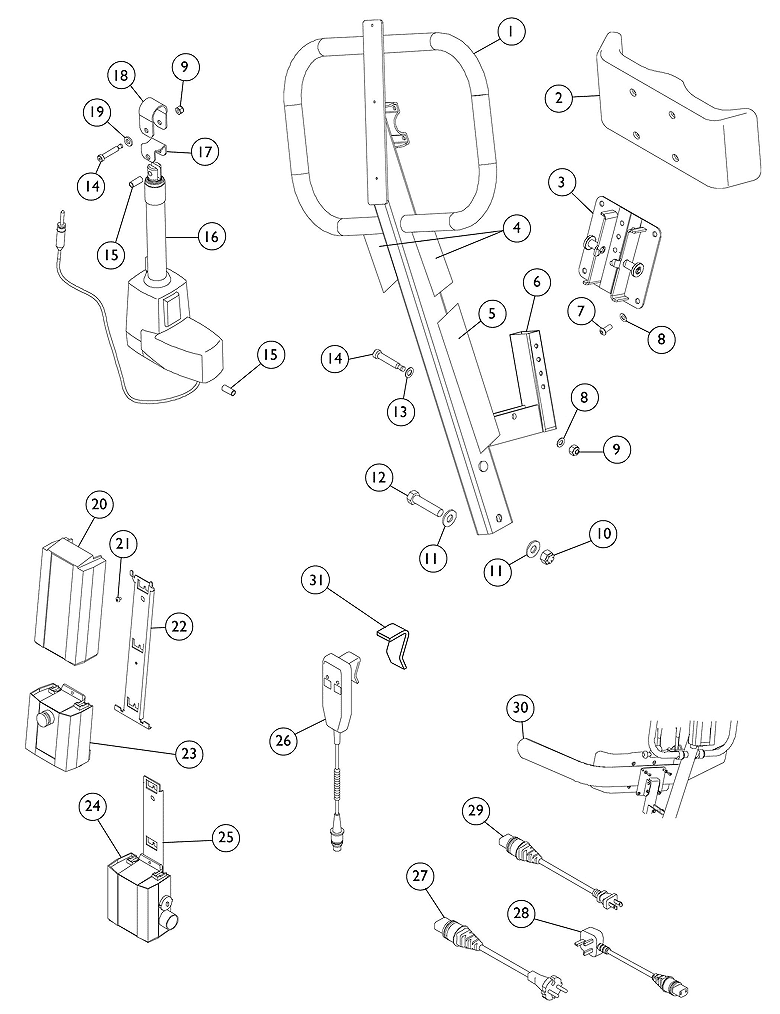

Mast Assembly - RPS350-1 (Before 7/2/10)
