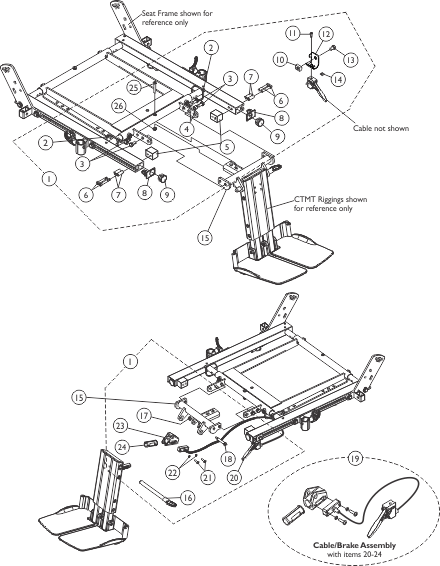

Front Riggings - Center Mount Rigging Mtg. Hdwr. (CGE) (16"-22" Wide) For TDX SP/SP-GT/SR

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1124701

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
12	Bracket, Release Handle Mounting, Black	1	1
25	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
4	Spacer (5/16 x 7/16 x 3/8")	1	2
6	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
9	Plug Button, Black (1")	1	2
13	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
18	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
18	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
20	Cable/Brake Assembly	1	1
21	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
2	Tie Wrap (11-1/2" L)	1	2
3	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
4	Spacer (5/16 x 7/16 x 3/8")	1	2
5	Block, Threaded	1	2
6	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
7	Spacer (1/4 x 3/8 x 29/32")	1	4
8	Cap, End, Side Rail, Black	1	2
9	Plug Button, Black (1")	1	2
10	T-Nut (5/16-18)	1	1
11	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
12	Bracket, Release Handle Mounting, Black	1	1
13	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
14	Nut, Square (#10-32)	1	1
16	NLA - Pin, Quick Release (5" Long)	1	1
17	Locknut (1/4-20)	1	1
22	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
23	Housing, Ratchet	1	1
24	Bearing, Glide	1	1
25	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
26	Locknut (1/4-20)	1	1
4	Spacer (5/16 x 7/16 x 3/8")	1	2
10	T-Nut (5/16-18)	1	1
16	NLA - Pin, Quick Release (5" Long)	1	1
23	Housing, Ratchet	1	1
2	Tie Wrap (11-1/2" L)	1	2
3	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
4	Spacer (5/16 x 7/16 x 3/8")	1	2
5	Block, Threaded	1	2
6	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
7	Spacer (1/4 x 3/8 x 29/32")	1	4
8	Cap, End, Side Rail, Black	1	2
9	Plug Button, Black (1")	1	2
10	T-Nut (5/16-18)	1	1
11	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
12	Bracket, Release Handle Mounting, Black	1	1
13	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
14	Nut, Square (#10-32)	1	1
16	NLA - Pin, Quick Release (5" Long)	1	1
17	Locknut (1/4-20)	1	1
18	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
3	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
11	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
14	Nut, Square (#10-32)	1	1
22	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
7	Spacer (1/4 x 3/8 x 29/32")	1	4
20	Cable/Brake Assembly	1	1
5	Block, Threaded	1	2
9	Plug Button, Black (1")	1	2
2	Tie Wrap (11-1/2" L)	1	2
3	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
4	Spacer (5/16 x 7/16 x 3/8")	1	2
5	Block, Threaded	1	2
2	Tie Wrap (11-1/2" L)	1	2
11	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
17	Locknut (1/4-20)	1	1
26	Locknut (1/4-20)	1	1
10	T-Nut (5/16-18)	1	1
3	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
5	Block, Threaded	1	2
16	NLA - Pin, Quick Release (5" Long)	1	1
22	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
25	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
2	Tie Wrap (11-1/2" L)	1	2
3	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
4	Spacer (5/16 x 7/16 x 3/8")	1	2
17	Locknut (1/4-20)	1	1
18	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
22	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
7	Spacer (1/4 x 3/8 x 29/32")	1	4
11	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
25	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
5	Block, Threaded	1	2
9	Plug Button, Black (1")	1	2
21	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
10	T-Nut (5/16-18)	1	1
13	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
18	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
24	Bearing, Glide	1	1
12	Bracket, Release Handle Mounting, Black	1	1
16	NLA - Pin, Quick Release (5" Long)	1	1
20	Cable/Brake Assembly	1	1
23	Housing, Ratchet	1	1
8	Cap, End, Side Rail, Black	1	2
8	Cap, End, Side Rail, Black	1	2
24	Bearing, Glide	1	1
26	Locknut (1/4-20)	1	1
2	Tie Wrap (11-1/2" L)	1	2
6	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
7	Spacer (1/4 x 3/8 x 29/32")	1	4
17	Locknut (1/4-20)	1	1
20	Cable/Brake Assembly	1	1
6	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
7	Spacer (1/4 x 3/8 x 29/32")	1	4
8	Cap, End, Side Rail, Black	1	2
9	Plug Button, Black (1")	1	2
10	T-Nut (5/16-18)	1	1
11	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
12	Bracket, Release Handle Mounting, Black	1	1
13	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
14	Nut, Square (#10-32)	1	1
16	NLA - Pin, Quick Release (5" Long)	1	1
17	Locknut (1/4-20)	1	1
18	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
20	Cable/Brake Assembly	1	1
21	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
22	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
23	Housing, Ratchet	1	1
24	Bearing, Glide	1	1
25	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
26	Locknut (1/4-20)	1	1
12	Bracket, Release Handle Mounting, Black	1	1
13	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
24	Bearing, Glide	1	1
14	Nut, Square (#10-32)	1	1
21	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
2	Tie Wrap (11-1/2" L)	1	2
3	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
4	Spacer (5/16 x 7/16 x 3/8")	1	2
5	Block, Threaded	1	2
6	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
7	Spacer (1/4 x 3/8 x 29/32")	1	4
8	Cap, End, Side Rail, Black	1	2
9	Plug Button, Black (1")	1	2
10	T-Nut (5/16-18)	1	1
11	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
12	Bracket, Release Handle Mounting, Black	1	1
13	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
14	Nut, Square (#10-32)	1	1
16	NLA - Pin, Quick Release (5" Long)	1	1
17	Locknut (1/4-20)	1	1
18	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
20	Cable/Brake Assembly	1	1
21	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
22	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
23	Housing, Ratchet	1	1
24	Bearing, Glide	1	1
25	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
26	Locknut (1/4-20)	1	1
6	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
14	Nut, Square (#10-32)	1	1
21	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
23	Housing, Ratchet	1	1
26	Locknut (1/4-20)	1	1
8	Cap, End, Side Rail, Black	1	2
2	Tie Wrap (11-1/2" L)	1	2
3	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
4	Spacer (5/16 x 7/16 x 3/8")	1	2
5	Block, Threaded	1	2
6	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
7	Spacer (1/4 x 3/8 x 29/32")	1	4
8	Cap, End, Side Rail, Black	1	2
9	Plug Button, Black (1")	1	2
10	T-Nut (5/16-18)	1	1
11	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
12	Bracket, Release Handle Mounting, Black	1	1
13	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
14	Nut, Square (#10-32)	1	1
16	NLA - Pin, Quick Release (5" Long)	1	1
17	Locknut (1/4-20)	1	1
18	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
20	Cable/Brake Assembly	1	1
21	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
22	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
23	Housing, Ratchet	1	1
24	Bearing, Glide	1	1
25	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
26	Locknut (1/4-20)	1	1
20	Cable/Brake Assembly	1	1
21	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
22	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
23	Housing, Ratchet	1	1
24	Bearing, Glide	1	1
25	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
26	Locknut (1/4-20)	1	1
20	Cable/Brake Assembly	1	1
21	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
22	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
23	Housing, Ratchet	1	1
24	Bearing, Glide	1	1
25	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
26	Locknut (1/4-20)	1	1
18	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
2	Tie Wrap (11-1/2" L)	1	2
3	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
4	Spacer (5/16 x 7/16 x 3/8")	1	2
5	Block, Threaded	1	2
6	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
7	Spacer (1/4 x 3/8 x 29/32")	1	4
8	Cap, End, Side Rail, Black	1	2
9	Plug Button, Black (1")	1	2
10	T-Nut (5/16-18)	1	1
11	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
12	Bracket, Release Handle Mounting, Black	1	1
13	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
14	Nut, Square (#10-32)	1	1
16	NLA - Pin, Quick Release (5" Long)	1	1
17	Locknut (1/4-20)	1	1

Kit, CTMT-F/CTMT-FL/CTMT-FJ Center Mount Riggings Mounting Hardware

$434.00

Create/add to Wishlist

1122675

Support, Center Mount Rigging, Black (16 - 19" D)

$154.00

Create/add to Wishlist

1136001

Support, Center Mount Rigging, Long, Black (19 - 22" D)

$199.00

Create/add to Wishlist

1121079

Cable/Brake Assembly w/ Ratchet Housing and Glide Bearing

$116.00

Create/add to Wishlist

1113622

Cable/Brake Assembly

$51.00

Create/add to Wishlist

40163X008

Screw, Phillips Pan Head (#10-32 x 11/16")

$10.00

Create/add to Wishlist

1028527

NLA - Washer, Lock (3/16 x 5/16 x 1/32")

N/A

Create/add to Wishlist

1113389

Housing, Ratchet

$73.00

Create/add to Wishlist

1113383

Bearing, Glide

$11.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-14, 16-18 and 20-26
B	Includes items 20-24
C	Support used for 16"-19" deep seats
D	Support used for 19"-22" deep seats
