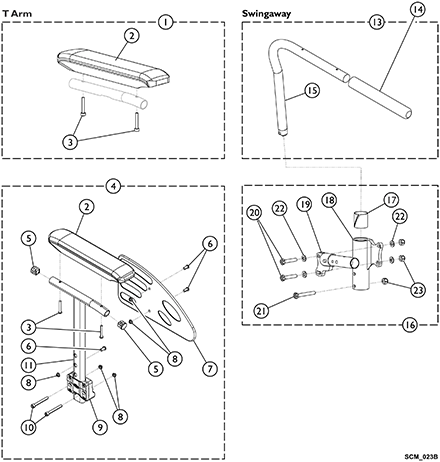

Arms - T Style and Swingaway

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1162413

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Arm Pad, Desk Length	1	2
8	Screw, Socket Head, Torx (K50 x 30mm)	1	4
3	Arm Pad, Desk Length	1	2
	Screw, Socket, Button Head (M5 x 35mm)	1	6
19	Arm Pad, Desk Length	1	2
20	Screw, Socket, Button Head (M5 x 35mm)	1	6
2	Arm Pad, Desk Length	1	2
3	Screw, Socket Head, Torx (K50 x 30mm)	1	4
2	Arm Pad, Desk Length	1	2
3	Screw, Socket Head, Torx (K50 x 30mm)	1	4
	Arm Pad, Desk Length	1	2
18	Screw, Socket, Button Head (M5 x 35mm)	1	8

Kit, Armpad, Desk Length (Pair) (CNAD, TAD)

$76.00

Create/add to Wishlist

1160539

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Arm Pad, Desk Length	1	1
3	Screw, Socket Head, Torx (K50 x 30mm)	1	2
5	Plug Button, Black (3/4")	1	2
6	Screw, Socket Button Head (M6 x 1 x 12mm)	1	3
7	Guard, Clothing - Right/Left	1	1
8	NLA - Locknut (M6 x 1)	1	5
9	NLA - Support, Armrest	1	1
10	NLA - Screw, Socket Head (M6 x 1 x .50mm)	1	2
11	Tube, Armrest - Right	1	1
2	Arm Pad, Desk Length	1	1
3	Screw, Socket, Button Head (M5 x 35mm)	1	2
5	Plug Button, Black (3/4")	1	2
6	Screw, Socket Button Head (M6 x 1 x 12mm)	1	3
7	Guard, Clothing - Right/Left	1	1
8	NLA - Locknut (M6 x 1)	1	5
9	NLA - Support, Armrest	1	1
10	NLA - Screw, Socket Head (M6 x 1 x .50mm)	1	2
11	Tube, Armrest - Right	1	1

NLA - Arm Assembly, Adjustable Height, T-Arm, Desk - Right

$75.00

Create/add to Wishlist

1160540

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Arm Pad, Desk Length	1	1
3	NLA - Screw, Socket Head (M6 x 1 x .50mm)	1	2
5	Plug Button, Black (3/4")	1	2
6	Screw, Socket Button Head (M6 x 1 x 12mm)	1	3
7	Guard, Clothing - Right/Left	1	1
8	NLA - Locknut (M6 x 1)	1	5
9	NLA - Support, Armrest	1	1
10	Screw, Socket Head, Torx (K50 x 30mm)	1	2
11	Tube, Armrest, Black - Left	1	1
2	Arm Pad, Desk Length	1	1
3	Screw, Socket, Button Head (M5 x 35mm)	1	2
5	Plug Button, Black (3/4")	1	2
6	Screw, Socket Button Head (M6 x 1 x 12mm)	1	3
7	Guard, Clothing - Right/Left	1	1
8	NLA - Locknut (M6 x 1)	1	5
9	NLA - Support, Armrest	1	1
10	NLA - Screw, Socket Head (M6 x 1 x .50mm)	1	2
11	Tube, Armrest, Black - Left	1	1

NLA - Arm Assembly, Adjustable Height, T-Arm, Desk - Left

$75.00

Create/add to Wishlist

1170499

NLA - Half Arm Assembly, Black - Right

N/A

Create/add to Wishlist

1170500

NLA - Half Arm Assembly, Black - Left

N/A

Create/add to Wishlist

1032244

Grip, Foam Hand (9" L)

$2.50

Create/add to Wishlist

1032202

Half Arm Tube - Right

$49.00

Create/add to Wishlist

1032203

Half Arm Tube - Left

$49.00

Create/add to Wishlist

1169974

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
17	NLA - Swingaway Arm Mounting Assembly - Right	1	1
17	Swingaway Arm Mounting Assembly - Left	1	1
18	NLA - Socket, Arm, Half - Right	1	1
18	NLA - Socket, Arm, Half - Left	1	1
19	Sleeve, Bearing	1	2
20	Screw, Socket, Cap, Button Head (1/4-28 x 1-9/16")	1	2
21	NLA - Screw, Cap, Socket Head (1/4-28 x 1")	1	4
22	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	8
23	Locknut (1/4-28)	1	6
17	Sleeve, Bearing	1	2
18	NLA - Socket, Arm, Half - Right	1	1
18	NLA - Socket, Arm, Half - Left	1	1
19	NLA - Swingaway Arm Mounting Assembly - Right	1	1
19	Swingaway Arm Mounting Assembly - Left	1	1
20	NLA - Screw, Cap, Socket Head (1/4-28 x 1")	1	4
21	Screw, Socket, Cap, Button Head (1/4-28 x 1-9/16")	1	2
22	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	8
23	Locknut (1/4-28)	1	6

NLA - Kit, Conversion, Swingaway Arm

$225.00

C ,D

Create/add to Wishlist

1169897

NLA - Swingaway Arm Mounting Assembly - Right

N/A

Create/add to Wishlist

1169898

Swingaway Arm Mounting Assembly - Left

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes Items 2 and 3.
B	Includes Items 2 and 3, and 5 - 11.
C	Includes Items 17 - 23.
D	Item 19 (Swingaway Arm Mounting Assembly) includes a Plunger Pin and Spring.

Catalog Literature

Parts Books for Crossfire™ T7A
