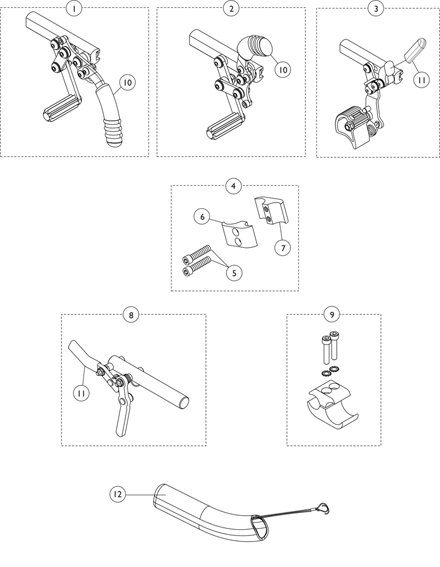

Wheel Locks & Attaching Hardware

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1130628

Wheel Lock Assembly, Pull to Lock - Right

$53.00

Create/add to Wishlist

1130629

Wheel Lock Assembly, Pull to Lock - Left

$53.00

Create/add to Wishlist

1130630

Wheel Lock Assembly, Push to Lock - Right

$53.00

Create/add to Wishlist

1130631

Wheel Lock Assembly, Push to Lock - Left

$53.00

Create/add to Wishlist

1097058

NLA - Hill Holder Wheel Lock Assembly - Right

N/A

Create/add to Wishlist

1097059

NLA - Hill Holder Wheel Lock Assembly - Left

N/A

Create/add to Wishlist

1068210

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
5	Screw, Allen Head (1/4-20 x 1")	1	2
6	Clamp, Half, Non-Threaded	1	1
7	Clamp, Half, Threaded	1	1
	Screw, Allen Head (1/4-20 x 1")	1	2
	Clamp, Half, Non-Threaded	1	1
	Clamp, Half, Threaded	1	1
	Screw, Allen Head (1/4-20 x 1")	1	2
	Clamp, Half, Non-Threaded	1	1
	Clamp, Half, Threaded	1	1
	Screw, Allen Head (1/4-20 x 1")	1	2
	Clamp, Half, Non-Threaded	1	1
	Clamp, Half, Threaded	1	1
	Screw, Allen Head (1/4-20 x 1")	1	2
	Clamp, Half, Non-Threaded	1	1
	Clamp, Half, Threaded	1	1
14	Screw, Allen Head (1/4-20 x 1")	1	2
15	Clamp, Half, Non-Threaded	1	1
16	Clamp, Half, Threaded	1	1
	Screw, Allen Head (1/4-20 x 1")	1	2
	Clamp, Half, Non-Threaded	1	1
	Clamp, Half, Threaded	1	1
5	Screw, Allen Head (1/4-20 x 1")	1	2
6	Clamp, Half, Non-Threaded	1	1
7	Clamp, Half, Threaded	1	1
	Screw, Allen Head (1/4-20 x 1")	1	2
	Clamp, Half, Non-Threaded	1	1
	Clamp, Half, Threaded	1	1
	Screw, Allen Head (1/4-20 x 1")	1	2
	Clamp, Half, Non-Threaded	1	1
	Clamp, Half, Threaded	1	1
	Screw, Allen Head (1/4-20 x 1")	1	2
	Clamp, Half, Non-Threaded	1	1
	Clamp, Half, Threaded	1	1
5	Screw, Allen Head (1/4-20 x 1")	1	2
6	Clamp, Half, Non-Threaded	1	1
7	Clamp, Half, Threaded	1	1
	Screw, Allen Head (1/4-20 x 1")	1	2
	Clamp, Half, Non-Threaded	1	1
	Clamp, Half, Threaded	1	1
	Screw, Allen Head (1/4-20 x 1")	1	2
	Clamp, Half, Non-Threaded	1	1
	Clamp, Half, Threaded	1	1
	Screw, Allen Head (1/4-20 x 1")	1	2
	Clamp, Half, Non-Threaded	1	1
	Clamp, Half, Threaded	1	1

Kit, Wheel Lock Attaching Hardware (1" Tubing)

N/A

Create/add to Wishlist

1093376

NLA - Wheel Lock Assembly, Undermount - Right

N/A

Create/add to Wishlist

1093377

NLA - Wheel Lock Assembly, Undermount - Left

N/A

Create/add to Wishlist

1160548

Clamp Assembly, Wheel Lock

$17.00

Create/add to Wishlist

1130584

Package, Cap, Brake Lever End, Black

$30.00

Create/add to Wishlist

1127688

Package, Plastic Tip, Black

$18.00

Create/add to Wishlist

1146498

Handle, Wheel Lock Extension, Black (6") (Pair)

$66.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	1 each of Item 10 included with wheel lock
B	1 each of Item 11 included with wheel lock
C	For use with push, pull and hill holder wheel lock.
D	For use with undermount wheel lock.
E	Wheel Lock Extension Handle used with item number 1 and 2 only

Catalog Literature

Parts Books for Crossfire™ T7A
