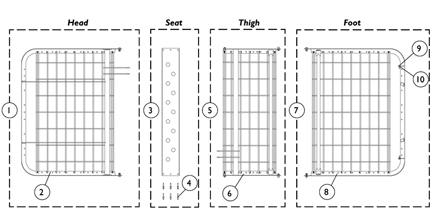

Sleep Surfaces - Wire Deck

Print this page

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	026802	NLA - Wire Deck Assembly - Head Section (76")	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	026803	NLA - Wire Deck Assembly - Head Section (80")	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	026777	NLA - Wire Deck - Head Section (76")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	026778	NLA - Wire Deck - Head Section (80")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	026507	Pan Deck - Seat Section Assembly	1	1		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	026623	Rivet (1/4")	1	6	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	026805	NLA - Wire Deck Assembly - Thigh Section	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	026779	NLA - Wire Deck - Thigh Section	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	026806	NLA - Wire Deck Assembly - Foot Section	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	026521	NLA - Wire Deck, Foot Section	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	000046	Nut, Hex Head w/ Nylon Patch (1/4-20")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	000124	NLA - Screw, Hex Head (1/4-20 x 3/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	026984	NLA - Kit, Sleep Surface Hardware Includes: 4 ea. Nuts and 4 ea. Screws.	1	1	N/A	E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes: Item 2-4 and Not Shown.
B	Includes: Item 4.
C	Includes: Items 6 and Not Shown.
D	Includes: Items 8-10 and Not Shown.
E	Not Shown.

Catalog Literature

Parts Books for ICC - Bed IH720 and SC900 LTC
