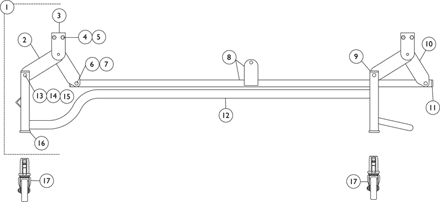

Carriage Assembly - SC900

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1113725	NLA - Carriage Assembly - SC900	1	1	N/A	A ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1133049	NLA - Carriage Assembly, Taupe	1	1	N/A	A ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	027016	Crank, Lift - Head End	1	1	$35.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	027010	NLA - Crank Assembly, Lift Support, Brown	1	4	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1133050	Support, Lift Crank	1	4		C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	000037	NLA - Nut, Keps (5/16-18)	1	8	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	001758	Screw, Hex Head (5/16-18 x 1")	1	8			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	027018	Pin, Clevis (3/8 x 2-3/4")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	027024	Pushnut, Fastener	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	027001	Bar, Lift	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	027047	Plug Button with Hole (1-1/4" Square)	1	4	$6.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	026999	Crank, Lift - Foot End	1	1	$50.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	020717	Glide, Cap	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	027008	NLA - Frame, Carriage	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	026976	Pin, Clevis (3/8 x 1-3/4")	1	4	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	026725	Washer, Flat (3/8")	1	4			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	51000M743	Pin, Hitch (3/8 x 1-3/16")	1	4	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	51000M083	Socket, Caster	1	4	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	027027	Kit, Caster 3" Swivel w/ Bracket	1	2	$30.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1102920	Caster, Swivel w/o Brake (4" Black)	1	2		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1102918	Caster, Swivel w/ Bracket (4" Non-Marking)	1	2	$12.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes: Items 2-16.
B	These items are optional.
C	These items are painted. Please make sure you select the correct color option.

Catalog Literature

Parts Books for ICC - Bed IH720 and SC900 LTC
