Pull Tube & Crank Handle

Print this page

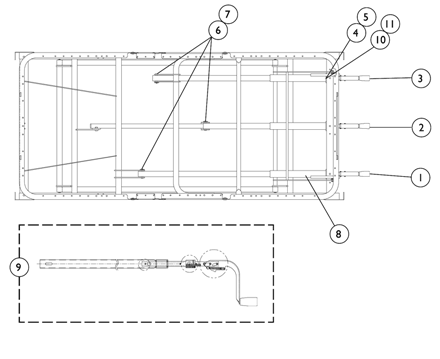

Pull Tube & Crank Handle

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1113799	NLA - Head Crank & Pull Tube Assembly, Manual	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	026541	NLA - Hi/Lo Crank & Pull Tube Assembly, Manual	1	1	N/A	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1113748	NLA - Hi/Lo Crank & Pull Tube Assembly, Manual	1	1	N/A	A ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1113701	NLA - Foot Crank & Pull Tube Assembly, Manual	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	001008	Washer, Split Lock (5/16")	1	6	$2.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	001741	Screw, Hex Head (5/16-18 x 3/4")	1	6	$2.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	005952	Pin, Clevis (5/16 x 2-1/8")	1	3	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	51000M743	Pin, Hitch (3/8 x 1-3/16")	1	3	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	51000M191	Cover, Pull Tube (Head/Foot)	1	3			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	026983	Kit, Crank Handle Includes: 3 ea. Spring Pins (1/4 x 1-1/4"), 1 ea. Spring Retainer, 1 ea. Spring Retainer, 1 ea. Spring Extension, 1 ea. Spring Pin (3/16 x 1"), and 1 ea. Crank Handle Assembly.	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	001443	Bushing, Shoulder - Pivot	1	6	$3.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	001405	Bushing, Flanged, Nylon	1	6	$3.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes: Item 9.
B	Before 7/26/99.
C	After 7/25/99.
D	Not Shown.
E	Includes: Items 4-8.

Catalog Literature

Parts Books for ICC - Bed IH720 and SC900 LTC
