Packaging, Literature and Decals

Print this page

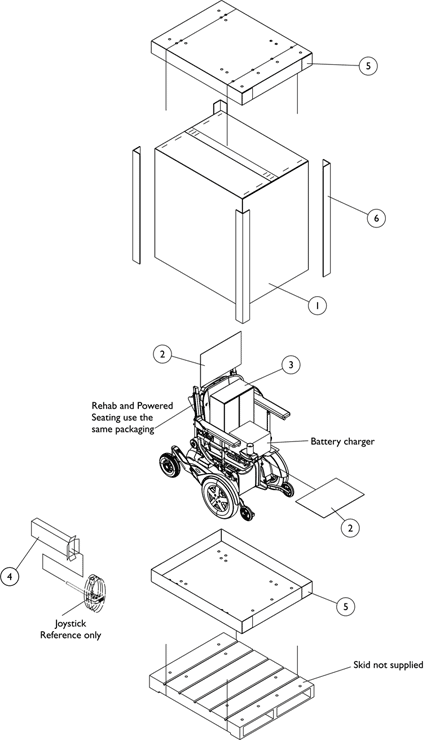

Packaging, Literature and Decals

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1030364	Carton, Cover	1	1	$58.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1031682	Carton, Cover	1	1	$56.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1036028	Carton, Cover	1	1		C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	40131X161	Insert, Plain Pad	1	2	$7.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	40131X011	NLA - Carton, Front Riggings	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1012001	NLA - Carton, Joystick	1	1	N/A	H	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1030362	Carton, Tray	1	2	$13.00	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1036027	Carton, Tray	1	2		E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1115174	Carton, Corner Reinforcement	1	4		D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1129589	Carton, Corner Reinforcement	1	4	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1129590	Carton, Corner Reinforcement	1	4	N/A	E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1015592	Bag, Poly (72" L x 35" W x 19" D)	1	1	$9.00	F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1143155	NLA - Owner''s Manual, Formula CG Seating	1	1	N/A	F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1164348	Mailer, Return, Mercury Free	1	1		G	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	12" Wide - 20" Wide systems with base.
B	16" Wide - 20" Wide systems with base. For medium and tall seat-to-floor heights.
C	20" Wide - 22" Wide systems with base.
D	12" Wide - 20" Wide systems with base.
E	20" Wide - 22" Wide systems with base.
F	Not Shown
G	For Massachusetts providers only.
H	Order item #3 part #40131X011 to use as a replacement Joystick Carton also.

Catalog Literature

Parts Books for Formula™CG Powered Seating and Front Riggings CGT/CGTE/CGTR/CGTRE
