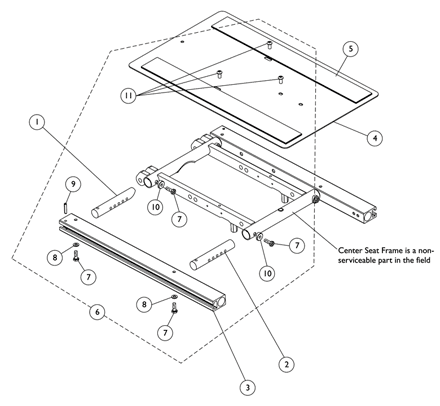

Frames - Seat & Seat Pan w/ Hdwr. - Conventional Seating (12" - 16" W)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1156163

NLA - Crossbar, Seat Frame, Black (12" - 16" W)

N/A

Create/add to Wishlist

1142955

NLA - Crossbar, Seat Frame, Black (12" - 16" W)

N/A

Create/add to Wishlist

1142951

Rail, Seat Frame (For 12 - 19" D Conventional)

$119.00

Create/add to Wishlist

1142961

Pan, Seat, with Hook and Loop Fasteners (12 - 16" W x 12 - 18" D)

$80.00

Create/add to Wishlist

1043082

Hook Fastener with Adhesive Back (2" W x 18" L)

$12.00

Create/add to Wishlist

1044580

Loop Fastener with Adhesive Back (2" W x 18" L)

$12.00

Create/add to Wishlist

1169000

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
11	NLA - Screw, Socket Button Head (1/4-20 x 1/2")	1	3
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	4
9	NLA - Pin, Roll (3/16 x 1")	1	2
10	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
11	NLA - Screw, Socket Button Head (1/4-20 x 1/2")	1	3
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	4
9	NLA - Pin, Roll (3/16 x 1")	1	2
10	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
11	NLA - Screw, Socket Button Head (1/4-20 x 1/2")	1	3
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	4
9	NLA - Pin, Roll (3/16 x 1")	1	2
10	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4

NLA - Kit, Seat Frame Assembly Hardware

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes item 5
B	Includes items 7-11

Catalog Literature

Parts Books for Formula™CG Powered Seating and Front Riggings CGT/CGTE/CGTR/CGTRE
