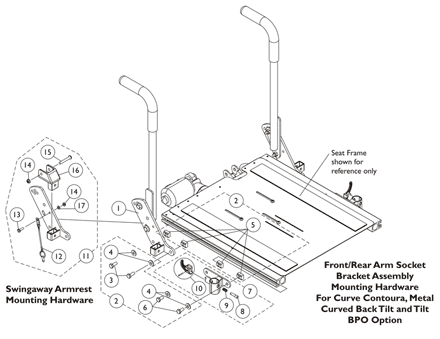

Arms - Mtg. Front/Rear Arm Socket Asbly. & Hdwr. - CGT/CGTE (12" - 16" W x 16" - 18" D) and (16" - 22" W)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1125478

Bracket, Arm Socket/Cane, Rear - Right

$62.00

Create/add to Wishlist

1125479

Bracket, Arm Socket/Cane, Rear - Left

$62.00

Create/add to Wishlist

1125734

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
5	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
4	T-Nut (5/16-18)	1	4
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
4	T-Nut (5/16-18)	1	4
5	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
4	T-Nut (5/16-18)	1	4
5	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
4	T-Nut (5/16-18)	1	4
5	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
4	T-Nut (5/16-18)	1	4
5	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
4	T-Nut (5/16-18)	1	4
5	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
4	T-Nut (5/16-18)	1	4
5	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
4	T-Nut (5/16-18)	1	4
5	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
4	T-Nut (5/16-18)	1	4
5	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
6	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
7	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
8	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
9	T-Nut (5/16-18)	1	4
3	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
3	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
4	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
5	T-Nut (5/16-18)	1	4
6	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
3	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
4	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
5	T-Nut (5/16-18)	1	4
6	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
3	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
4	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
5	T-Nut (5/16-18)	1	4
6	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
4	T-Nut (5/16-18)	1	4
5	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
4	T-Nut (5/16-18)	1	4
5	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
4	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
5	T-Nut (5/16-18)	1	4
6	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
6	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
7	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
8	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
9	T-Nut (5/16-18)	1	4
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
4	T-Nut (5/16-18)	1	4
5	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
3	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
4	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
5	T-Nut (5/16-18)	1	4
6	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
3	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
4	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
5	T-Nut (5/16-18)	1	4
6	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
4	T-Nut (5/16-18)	1	4
5	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2

Kit, Front/Rear Arm Socket Assembly Mounting Hardware

$23.00

Create/add to Wishlist

1122619

Socket, Arm, Front - Right

$72.00

Create/add to Wishlist

1122620

Socket, Arm, Front - Left

$72.00

Create/add to Wishlist

1028594

Pin, Arm Lock, Black

$8.00

Create/add to Wishlist

47471X074

Spring, Arm Lock

$8.00

Create/add to Wishlist

1090768

Kit, Lock Handle w/Rivets (Pair)

$16.00

Create/add to Wishlist

1125736

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
13	Pin, Pull	1	1
14	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1
15	Locknut (1/4-20)	1	2
16	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1
17	Clevis, Pivot	1	1
18	Washer (1/4 x 1/2 x 1/16")	1	1
12	Pin, Pull	1	1
13	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1
14	Locknut (1/4-20)	1	2
15	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1
16	Clevis, Pivot	1	1
17	Washer (1/4 x 1/2 x 1/16")	1	1
12	Pin, Pull	1	1
13	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1
14	Locknut (1/4-20)	1	2
15	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1
16	Clevis, Pivot	1	1
17	Washer (1/4 x 1/2 x 1/16")	1	1
13	Pin, Pull	1	1
14	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1
15	Locknut (1/4-20)	1	2
16	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1
17	Clevis, Pivot	1	1
18	Washer (1/4 x 1/2 x 1/16")	1	1
12	Pin, Pull	1	1
13	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1
14	Locknut (1/4-20)	1	2
15	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1
16	Clevis, Pivot	1	1
17	Washer (1/4 x 1/2 x 1/16")	1	1
12	Pin, Pull	1	1
13	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1
14	Locknut (1/4-20)	1	2
15	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1
16	Clevis, Pivot	1	1
17	Washer (1/4 x 1/2 x 1/16")	1	1
13	Pin, Pull	1	1
14	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1
15	Locknut (1/4-20)	1	2
16	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1
17	Clevis, Pivot	1	1
18	Washer (1/4 x 1/2 x 1/16")	1	1
12	Pin, Pull	1	1
13	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1
14	Locknut (1/4-20)	1	2
15	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1
16	Clevis, Pivot	1	1
17	Washer (1/4 x 1/2 x 1/16")	1	1
13	Pin, Pull	1	1
14	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1
15	Locknut (1/4-20)	1	2
16	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1
17	Clevis, Pivot	1	1
18	Washer (1/4 x 1/2 x 1/16")	1	1
12	Pin, Pull	1	1
13	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1
14	Locknut (1/4-20)	1	2
15	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1
16	Clevis, Pivot	1	1
17	Washer (1/4 x 1/2 x 1/16")	1	1

Kit, Swingaway Armrest Mounting Hardware

$33.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 3-6
B	Includes Front Arm Socket and items 8-10
C	Includes items 12-17

Catalog Literature

Parts Books for Formula™CG Powered Seating and Front Riggings CGT/CGTE/CGTR/CGTRE
