Suspension Arm & Mounting Hardware - 4-Pole Motors (US and Canada Before 8/17/10)

Print this page

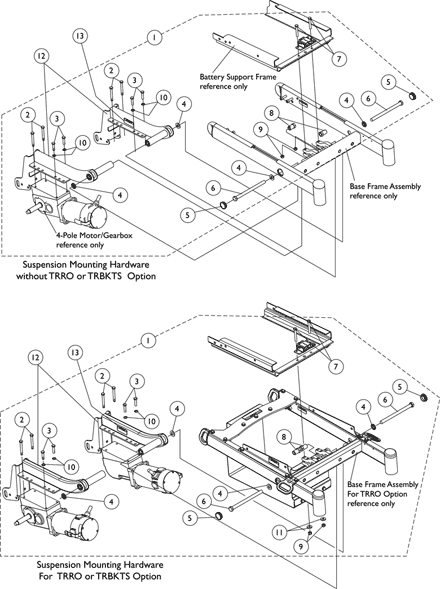

Suspension Arm and Mounting Hardware - 4-Pole Motors

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1104828

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	NLA - Screw, Hex Head w/ Patch (5/16-18 x 2-1/2")	1	4
3	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	4
4	NLA - Washer (1/2" I.D. x 7/8" O.D.)	1	4
5	Plug Button, Headtube, Black	1	2
6	NLA - Screw, Hex Head (1/2-20 x 7")	1	2
7	NLA - Screw, Hex Head (5/16-18 x 2")	1	2
8	NLA - Nut, Shoulder (1/2-20)	1	2
9	Locknut (5/16-18)	1	2
10	NLA - Washer, Internal Tooth (M8)	1	4

NLA - Kit, Suspension Arm Mounting Hardware (Pair)

N/A

Create/add to Wishlist

1139435

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	NLA - Screw, Hex Head w/ Patch (5/16-18 x 2-1/2")	1	4
3	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	4
4	NLA - Washer (1/2" I.D. x 7/8" O.D.)	1	4
5	Plug Button, Headtube, Black	1	2
6	NLA - Screw, Hex Head (1/2-20 x 7")	1	2
7	NLA - Screw, Hex Head (5/16-18 x 2-1/4")	1	2
8	NLA - Nut, Shoulder (1/2-20)	1	2
9	Locknut (5/16-18)	1	2
10	NLA - Washer, Internal Tooth (M8)	1	4
11	Washer, Flat (21/64 x 53/64 x 7/64")	1	2

NLA - Kit, Suspension Arm Mounting Hardware For TRRO/TRBKTS Option (Pair)

N/A

Create/add to Wishlist

1104887

NLA - Kit, Suspension Arm w/ Warning Decal, Black - Right

N/A

Create/add to Wishlist

1104888

NLA - Kit, Suspension Arm w/ Warning Decal, Black - Left

N/A

Create/add to Wishlist

1053056

NLA - Decal, Warning

N/A

Create/add to Wishlist

1142012

Nut, Hex Head Cap Shoulder (1/2-20)

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-10
B	Includes items 2-11 and used for TRRO/TRBKTS options
C	Hex Head Cap Shoulder Nut part number 1142012 is used only when a Formula CG Elevate is ordered

Catalog Literature

Parts Books for Storm Series® 3G (Elevating Seat included ESS6-STM)
