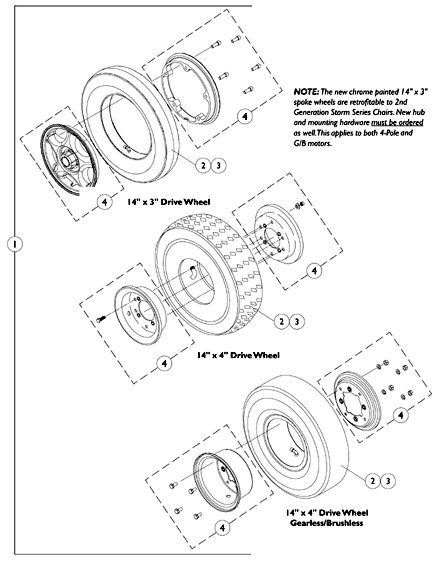

Wheels - Drive for Non-Free Wheel Hubs (4 Pole Motors Before 8/17/10 US and Canada) & GB Non-Heavy Duty Motors
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1-3 |
See Chart
Added to Cart
Create/add to WishlistCreate/add to WishlistSee chart-note
|
#'s 1, 2 and 3 Drive Wheels for Non-Free Wheel Hubs | N/A | N/A | N/A |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||||||||||||||||||
| 4 | 1104882 | NLA - Kit, 8" Rim w/ Hardware (14 x 3" Wheel) | 1 | 1 | N/A | F |
Create/add to WishlistCreate/add to Wishlist |
||||||||||||||||||||||||||||||||||||||||||||||||
| 4 | 1042453 | NLA - Kit, 6" Rim w/ Hardware (14" x 4" Wheel) | 1 | 1 | N/A | E |
Create/add to WishlistCreate/add to Wishlist |
||||||||||||||||||||||||||||||||||||||||||||||||
| 4 | 1078246 | NLA - Kit, 6" Rim w/ Hardware (14" x 4" Wheel) | 1 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
||||||||||||||||||||||||||||||||||||||||||||||||
| 1101094 | Screw, Socket Head w/ Patch (5/16-18 x 7/8") | 1 | 5 |
$8.00 |
C ,D |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||||||||||||||||||
| 1024443 | NLA - Screw, Hex Head (5/16-24 x 5/8") | 1 | 6 | N/A | A ,C |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||||||||||||||||||
| 1024442 | NLA - Washer, Lock (5/16 x 9/16 x 1/16") | 1 | 6 | N/A | A ,C |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||||||||||||||||||
| 1024426 | NLA - Nut, Hex (5/16-24) | 1 | 6 | N/A | A ,C |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | included in rim hardware part number 1042453 and (rim hardware part number 1078246 quantity 4 each) |
| B | For GB motors only |
| C | Not Shown |
| D | included in rim hardware part number 1104882 |
| E | For 4-Pole Motors |
| F | For 4-Pole and GB motors |
