Wheels - Free Hub Mount & Hardware - 4-Pole Motors Only (4 Pole Motors Before 8/17/10 US and Canada)

Print this page

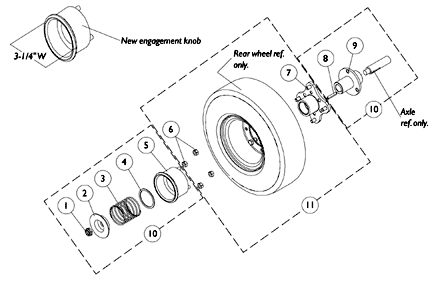

Free Wheel Hub Mount and Hardware

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	7930302	Locknut (1/2-20)	25	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1078090	Cup, Washer	1	1	$18.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1079002	NLA - Spring, Compression (2-3/32 x 2-1/4 x 3/32")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1079001	NLA - Washer, Flat (1-13/16 x 2-1/8 x 1/16")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1077022	Knob, Engagement, Black	1	1	$82.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1024426	NLA - Nut, Hex (5/16-24)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1077023	Hub Assembly	1	1	$305.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1000180	Key (3/16 x 1-1/4")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1077021	Sleeve, Axle	1	1	$104.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1079004	Free Wheel Hub Assembly	1	1	$225.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1081358	Drive Wheel Assembly, Pneumatic w/ Hub, Grey Tire/Black Rim (14 x 3")	1	1	$279.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1081359	Drive Wheel Assembly, Flat Free w/ Hub, Grey Tire/Black Rim (14 x 3")	1	1	$336.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1081362	NLA - Drive Wheel Assembly, Pneumatic w/ Hub, Grey Tire/Black Rim (14 x 4")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1081363	Drive Wheel Assembly, Flat Free w/ Hub, Grey Tire/Black Rim (14 x 4")	1	1	$336.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Catalog Literature

Parts Books for Storm Series® 3G (Elevating Seat included ESS6-STM)
