Wheel Lock Assembly - (4 Pole Motors Before 8/17/10 US and Canada)

Print this page

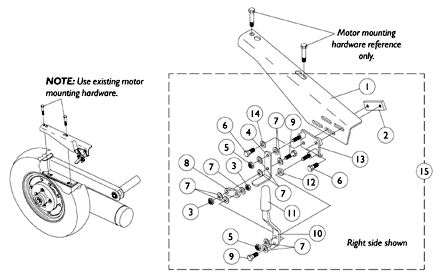

Wheel Lock Assembly

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1054510	NLA - Bracket, Wheel Lock Mount, Black - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1054512	NLA - Bracket, Wheel Lock Mount, Black - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1054508	NLA - Link, Inside, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	7930334	NLA - Locknut (1/4-28)	25	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1031833	NLA - Shoe, Wheel Lock	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	7930323	NLA - Package, Locknut (1/4-20)	25	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	7930326	NLA - Package, Screw, Hex Head (1/4-20 x 3/4")	25	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1026033	Washer, Nylon (1/4 x 1/2 x 1/16")	1	9	$7.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1018733	NLA - Link, Stop, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1028687	Screw, Hex Head (1/4-28 x 3/4")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1021408	NLA - Handle, Wheel Lock, Black - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1021409	NLA - Handle, Wheel Lock, Black - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	47376x024	Tip, Rubber Wheel Lock Handle, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1026105	NLA - Spacer, Nylon (1/4 x 7/16 x 1/8")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1054513	NLA - Plate, Wheel Lock Base, Black - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1054514	NLA - Plate, Wheel Lock Base, Black - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1026907	Washer (1/4 x 1/2 x 1/16")	1	1	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1054515	NLA - Wheel Lock Assembly, Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1054516	NLA - Wheel Lock Assembly, Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Catalog Literature

Parts Books for Storm Series® 3G (Elevating Seat included ESS6-STM)
