Fender Assembly (4 Pole Motors Before 8/17/10 US and Canada) and GB Motors

Print this page

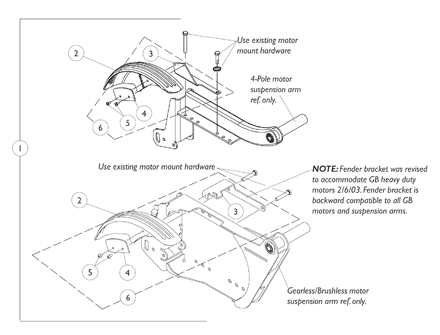

Fender Assembly

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1104860	NLA - Kit, Fender Assembly w/ Instruction Sheet, 4-Pole Motor Suspension Arm (Pair)	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1104861	NLA - Kit, Fender Assembly w/ Instruction Sheet, GB Motor Suspension Arm (Pair)	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1101718	Fender, Black	1	2	$36.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1104411	NLA - Bracket, Fender Mounting, Black - Right (4-Pole Motor)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1104412	Bracket, Fender Mounting, Black - Left (4-Pole Motor)	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1115914	NLA - Bracket, Fender Mounting, Black - Right (GB Motor)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1115915	NLA - Bracket, Fender Mounting, Black - Left (GB Motor)	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1105556	NLA - Spacer, Fender, Black	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1022597	Screw, Phillips Pan Head Tap (#10-32 x 3/8")	1	4	$3.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1104806	NLA - Kit, Fender Mounting Hardware, 4-Pole Motor Suspension Arm (Pair)	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1104807	NLA - Kit, Fender Mounting Hardware, GB Motor Suspension Arm (Pair)	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1104908	NLA - Instruction Sheet, Fender Assembly	1	1	N/A	C ,E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 2-5
B	Includes items 3-5
C	Not Shown
D	No longer available. See item 6 part #1104807
E	Item is no longer available from the Invacare Service Parts Department. Refer to the Invacare Website under "Product Literature Search". Enter the part number in the "Keywords" field and download a free PDF version copy.

Catalog Literature

Parts Books for Storm Series® 3G (Elevating Seat included ESS6-STM)
